990564 - Simplicity 42" Rotary Snow Thrower Attachment ROTOR, BODY & DRIVE GROUP Parts Diagram

42" Rotary Snow Thrower Attachment

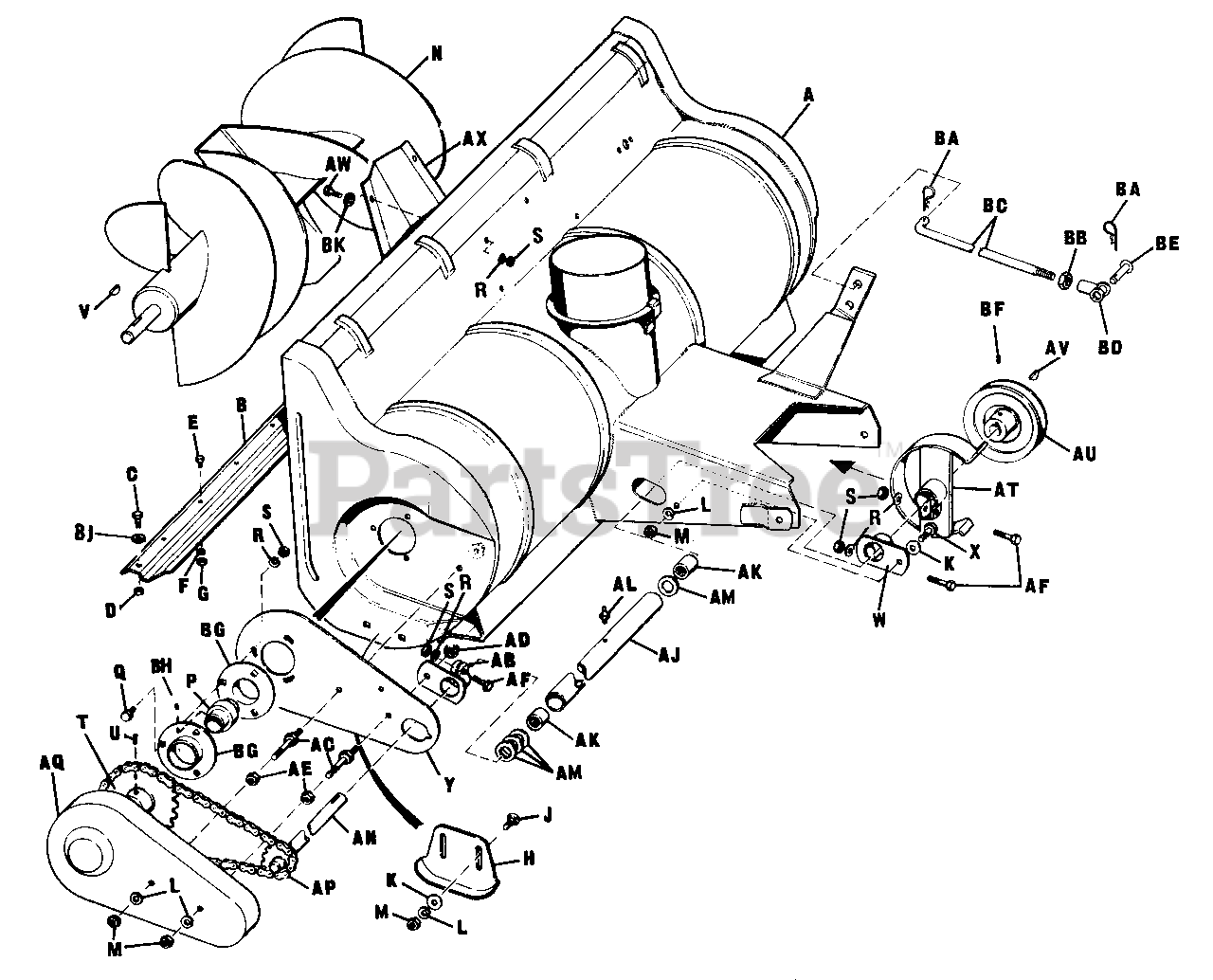

ROTOR, BODY & DRIVE GROUP Parts Diagram

  • Title

A

Simplicity 161203

Body Assembly

$

$

Not available

B

Simplicity 2106746ASM

Body Scraper

$158.99

$

In Stock, only 3 left!

0

C

Simplicity 2715071

Hex. Cap Screw, 5/16"-18 x 5/8"

$

$

Not available

D

Simplicity 2717511

Full Lock Hex. Nut, 5/16"-18

$

$

Not available

E

Simplicity 2715018

Hex. Cap Screw, 1/4"-20 x 5/8"

$

$

Not available

F

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

G

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

H

Simplicity 2106747

Skid

$

$

Not available

J

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

K

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

L

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

M

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

N

Simplicity 2106748

Rotor Assembly

$

$

Not available

P

Simplicity 2106732

Bearing Cartridge

$

$

Not available

Q

Simplicity 2705017

Hex. Cap Screw, 5/16"-18 x 3/4"

$

$

Not available

R

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

S

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

T

Simplicity 2106653SM

Rotor Sprocket

$98.99

$

Usually ships in 2-12 days

0

U

Simplicity 2713503

Set Screw, 5/16"-18 x 5/16"

$

$

Not available

V

Simplicity 2151040SM

Hi-Pro Key

$9.49

$

In Stock, only 2 left!

0

W

Simplicity 106476

Support Assembly Clamp

$

$

Not available

X

Simplicity 170754

Hex. Cap Screw, 3/8"-1 x 1"

$

$

Not available

Y

Simplicity 106745

Side Plate

$

$

Not available

AB

Simplicity 106476

Support Assembly Clamp

$

$

Not available

AC

Simplicity 106771

Stud

$

$

Not available

AD

Simplicity 2718035

Nut, Flange, 3/8"-16

$

$

Not available

AE

Simplicity 2717510

Full Lock Hex. Nut, 3/8"-16

$

$

Not available

AF

Simplicity 2705018

Hex. Cap Screw, 5/16"-18 x 1-1/2"

$

$

Not available

AJ

Simplicity 2106756A

Bearing Housing

$

$

Not available

AK

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, Qty 8

0

AL

Simplicity 2727002

Grease Fitting

$

$

Not available

AM

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 7

0

AN

Simplicity 2106757SM

Shaft Assembly

$240.99

$

Usually ships in 2-12 days

0

AP

Simplicity 106058

Chain

$

$

Not available

AQ

Simplicity 170865

Chain Guard

$

$

Not available

AT

Simplicity 106660

Belt Guard Assembly

$

$

Not available

AU

Simplicity 2106663SM

Pulley

$56.99

$

Usually ships in 2-12 days

0

AV

Simplicity 2725003

Key, 3/16" Dia. x 3/4"

$

$

Not available

AW

Simplicity 2705012

Hex. Cap Screw, 5/16"-18 x 5/8"

$

$

Not available

AX

Simplicity 2106774ASM

Deflector

$29.99

$

Usually ships in 2-12 days

0

BA

Simplicity 2106788

Spring Clip

$

$

Not available

BB

Simplicity 717008

Full Hex. Nut, 1/2" x 20

$

$

Not available

BC

Simplicity 106773

Front Lift Rod

$

$

Not available

BD

Simplicity 2157631

Adjusting End Yoke

$

$

Not available

BE

Simplicity 2154305

Yoke Pin

$

$

Not available

BF

Simplicity 2713509

Set Screw, 1/4"-28 x 1/4" lg.

$

$

Not available

BG

Simplicity 2161069

Bearing Flange

$

$

Not available

BH

Simplicity 2713503

Set Screw

$

$

Not available

BJ

Simplicity 2719006

Washer

$

$

Not available

BK

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available
