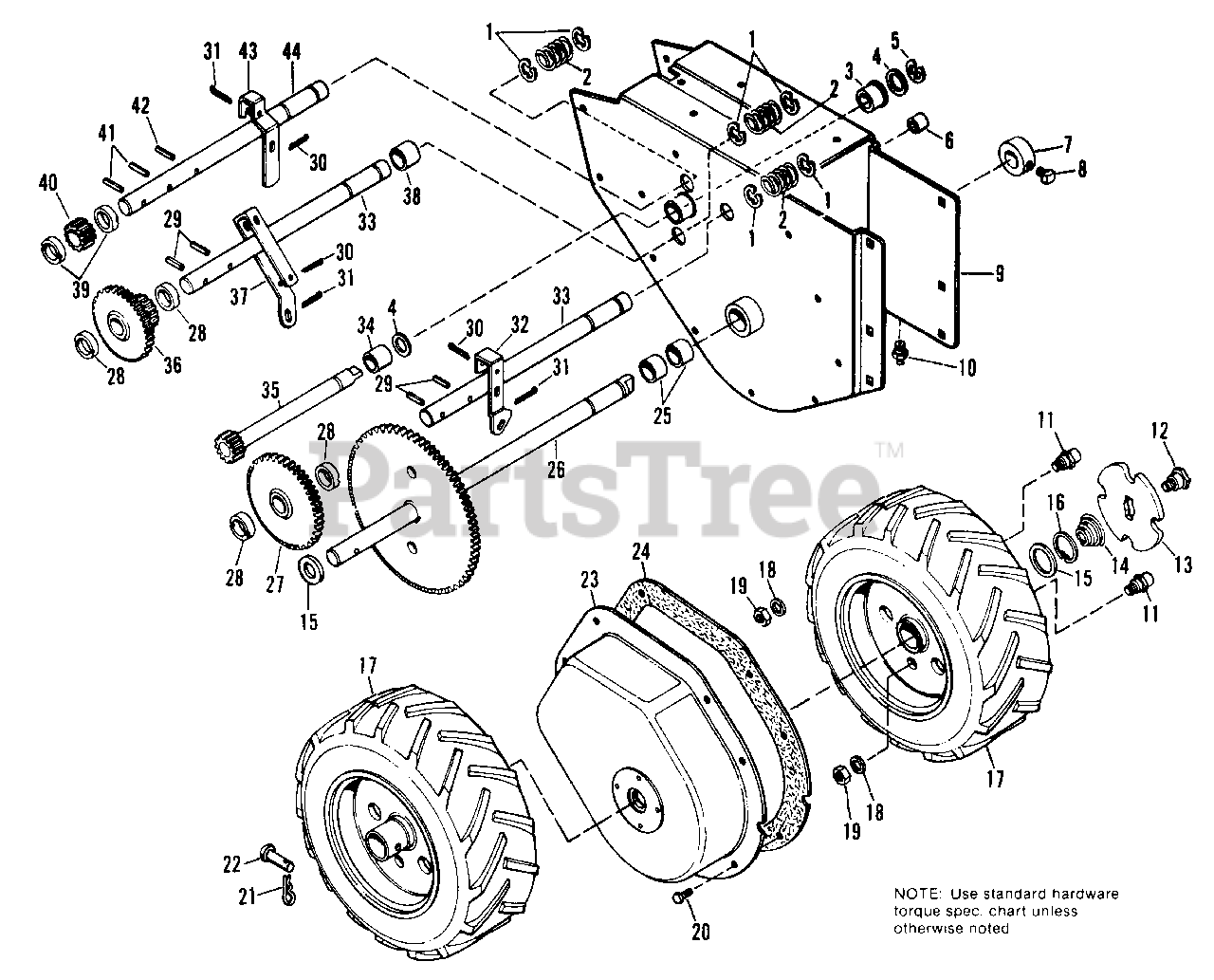

990551 - Simplicity Sno-Away 24" Snow Thrower, 5hp Transmission Group Parts Diagram

Sno-Away 24" Snow Thrower, 5hp

Transmission Group Parts Diagram

  • Title
1

Simplicity 2158596

RING, Retaining

$

$

Not available

$

$

Not available

3

Simplicity 158569

BEARING, Bronze

$

$

Not available

$

$

Not available

5

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

6

$

$

Not available

7

Simplicity 158357

COLLAR, Set

$

$

Not available

8

Simplicity 2828709

SETSCREW, 5/16-18 x 3/8

$

$

Not available

9

Simplicity 106991

ENGINE BASE & FRAME ASSY.

$

$

Not available

10

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

$

$

Not available

12

Simplicity 2161166

BOLT, Shoulder

$

$

Not available

$

$

Not available

$3.99

$

In Stock, only 1 left!

0

$4.49

$

In Stock, Qty 10

0

16

Simplicity 161260

RING, Retaining

$

$

Not available

17

Simplicity 161151

WHEEL & TIRE ASSY.

$

$

Not available

18

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

19

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/10

$

$

Not available

21

Simplicity 1918196SM

CLIP, Pin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

23

Simplicity 161261

CASE ASSY., Gear

$

$

Not available

24

$

$

Not available

25

$

$

Not available

26

Simplicity 161221

AXLE & GEAR ASSY.

$

$

Not available

27

Simplicity 158542

GEAR & BEARING ASSY., Lower

$

$

Not available

28

Simplicity 158561

COLLAR, Thrust

$

$

Not available

29

Simplicity 2818111

PIN, Roll, 1/8 x 1

$

$

Not available

30

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

31

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

32

Simplicity 161228

LINK, Shift, Lower

$

$

Not available

33

Simplicity 2158541

SHAFT, Intermediate

$

$

Not available

34

Simplicity 2156064SM

BEARING, Bronze

$22.99

$

Usually ships in 2-12 days

0

35

Simplicity 106944

SHAFT ASSY., Gear

$

$

Not available

36

Simplicity 158570

GEAR & BEARING ASSY., High

$

$

Not available

37

Simplicity 161237

LINK, Shift, High

$

$

Not available

$

$

Not available

39

Simplicity 158562

COLLAR, Thrust

$

$

Not available

40

Simplicity 158557

PINION, Reverse

$

$

Not available

41

Simplicity 2816168SM

PIN, Roll, 1/8 x 3/4

$4.49

$

In Stock, Qty 15

0

42

Simplicity 2821450

PIN, Roll, 5/32 x 1

$

$

Not available

43

Simplicity 161227

LINK, Shift, Reverse

$

$

Not available

44

Simplicity 158534

SHAFT, Reverse

$

$

Not available
