990547 - Simplicity Adaptor Kit for 42" Mower Deck Adapter Kit Group (1311I01) Parts Diagram

Adaptor Kit for 42" Mower Deck

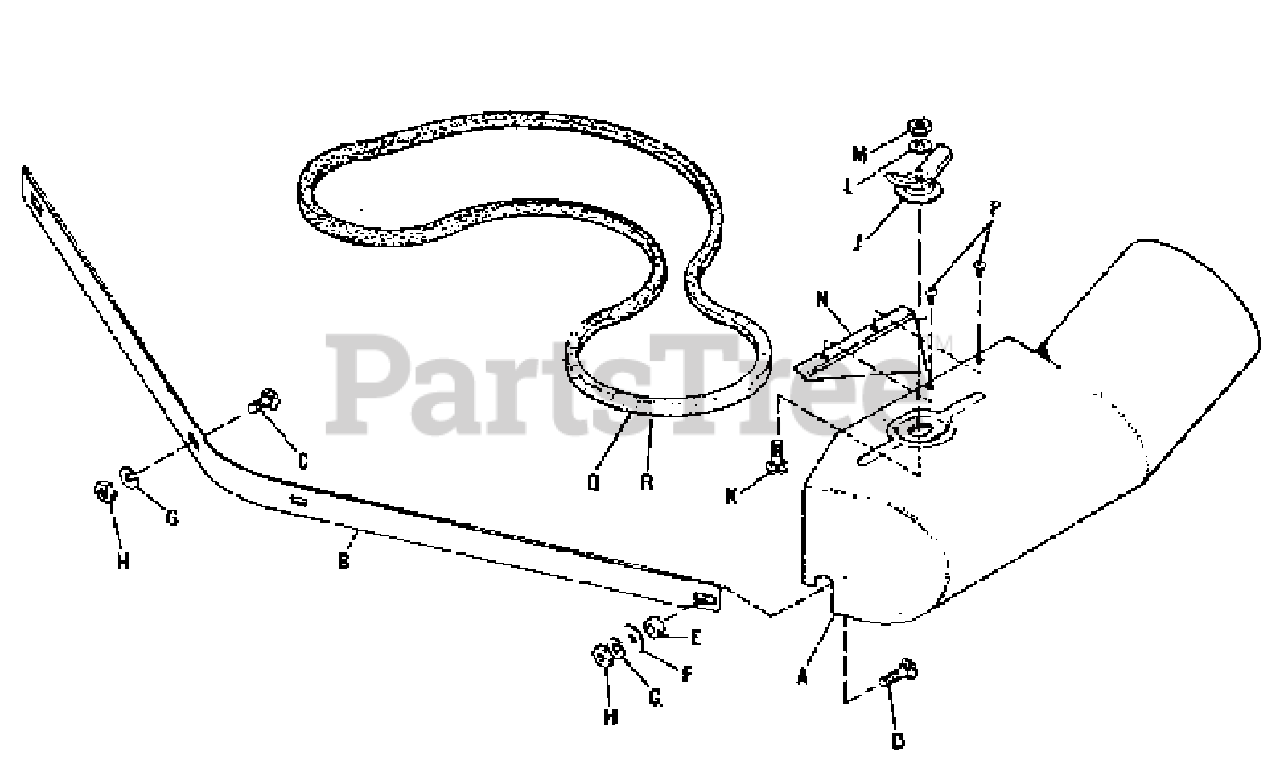

Adapter Kit Group (1311I01) Parts Diagram

  • Title

A

Simplicity 123137

COLLECTOR SIDE HOUSING ASSEMBLY

$

$

Not available

B

Simplicity 123059

FRONT BAFFLE

$

$

Not available

C

Simplicity 2703003

CARRIAGE BOLT, 3/8" - 16 x 1" LG

$

$

Not available

D

Simplicity 2703002

CARRIAGE BOLT, 3/8" - 16 x 1-1/4" LG

$

$

Not available

E

Simplicity 2153081

SPACER

$

$

Not available

F

Simplicity 157169

WASHER

$

$

Not available

G

Simplicity 2720002

LOCK WASHER, 3/8"

$

$

Not available

H

Simplicity 2717003

NUT, Hex, Full, 3/8" - 16

$

$

Not available

J

Simplicity 2123060

NUT ASSEMBLY

$

$

Not available

K

Simplicity 2703003

CARRIAGE BOLT, 3/8" - 16 x 1" LG

$

$

Not available

L

Simplicity 2720002

LOCK WASHER, 3/8"

$

$

Not available

M

Simplicity 2717003

NUT, Hex, Full, 3/8" - 16

$

$

Not available

N

Simplicity 123062

BAFFLE

$

$

Not available

P

Simplicity 714005

SCREW, Self Tapping, No, 10-24 x 1/2" LG

$

$

Not available

Q

Simplicity 2105115

BELT, "V"

$

$

Not available

R

Simplicity 2108505

BELT, "V"
(Superseded to 1727773SM)

$34.99

$

In Stock, only 3 left!
