990545 - Simplicity 36" Heavy Duty Tiller Attachment HOUSING GROUP Parts Diagram

36" Heavy Duty Tiller Attachment

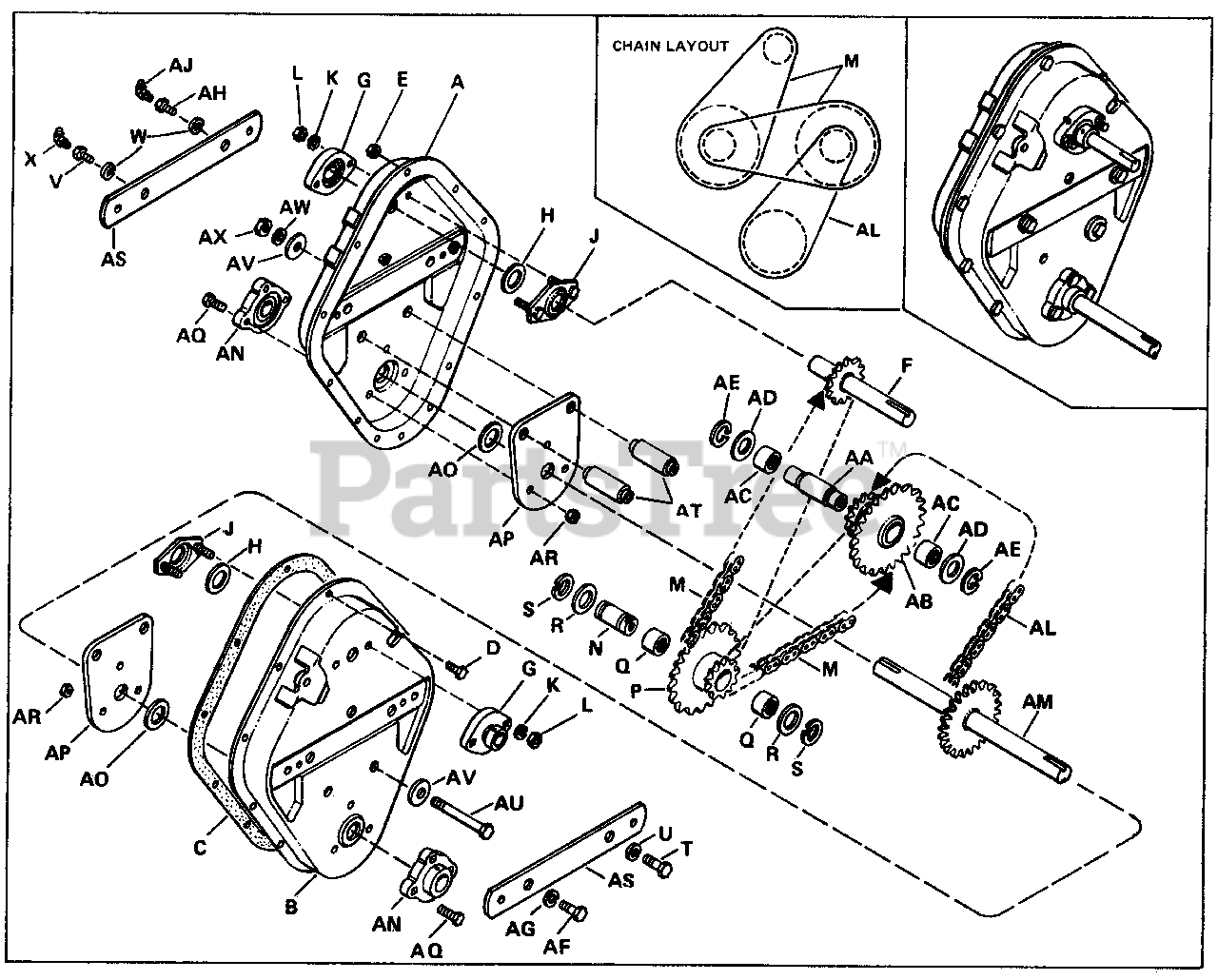

HOUSING GROUP Parts Diagram

  • Title

A

Simplicity 2105366ASM

Half Case Assembly, R.H.

$

$

Not available

B

Simplicity 2105367ASM

Half Case Assembly, L.H.

$

$

Not available

C

Simplicity 2105373SM

Gasket

$42.99

$

In Stock, Qty 6

0

D

Simplicity 2705012

Hex. Capscrew, 5/16"-18 x 5/8"

$

$

Not available

E

Simplicity 2717511

Full Hex. Locknut, 5/16"-18

$

$

Not available

F

Simplicity 2105298SM

Pulley Shaft Assembly

$71.99

$

Usually ships in 2-12 days

0

G

Simplicity 2105311SM

Bearing

$131.99

$

Usually ships in 2-12 days

0

H

Simplicity 2105365SM

Seal

$4.99

$

Usually ships in 2-12 days

0

J

Simplicity 105313

Upper Bearing Plate Assembly

$

$

Not available

K

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

L

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

M

Simplicity 2105336SM

Chain

$29.99

$

Usually ships in 2-12 days

0

N

Simplicity 2105292SM

Inter. Spacer

$

$

Not available

P

Simplicity 2105291SM

Sprocket Assembly

$

$

Not available

Q

Simplicity 2105195SM

Roller Bearing

$34.99

$

In Stock, only 1 left!

0

R

Simplicity 2860208SM

Washer

$4.99

$

Usually ships in 2-12 days

0

S

Simplicity 2105194

Retaining Ring

$

$

Not available

T

Simplicity 2706022

Hex. Capscrew (L.H. Side), 1/2"-20 x 1 1/4"

$

$

Not available

U

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

V

Simplicity 2105132SM

Bolt, (R.H. Side)

$

$

Not available

W

Simplicity 2720004

Lock Washer,1/2"

$

$

Not available

X

Simplicity 2727004

Grease Fitting

$

$

Not available

Y

Simplicity 2105363SM

Grease Cap

Note: Not Shown

$3.49

$

Usually ships in 2-12 days

0

AA

Simplicity 2105192SM

Inter. Spacer

$110.99

$

Usually ships in 2-12 days

0

AB

Simplicity 105301

Sprocket Assembly

$

$

Not available

AC

Simplicity 2105195SM

Roller Bearing

$34.99

$

In Stock, only 1 left!

0

AD

Simplicity 2860208SM

Washer

$4.99

$

Usually ships in 2-12 days

0

AE

Simplicity 2105194

Retaining Ring

$

$

Not available

AF

Simplicity 2706022

Hex. Capscrew (L.H. Side), 1/2"-20 x 1 1/4"

$

$

Not available

AG

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

AH

Simplicity 2105132SM

Bolt (R.H. Side)

$

$

Not available

AJ

Simplicity 2727004

Grease Fitting

$

$

Not available

AK

Simplicity 2105363SM

Grease Cap

Note: Not Shown

$3.49

$

Usually ships in 2-12 days

0

AL

Simplicity 105345

Chain

$

$

Not available

AM

Simplicity 105297

Tine Shaft Assembly

$

$

Not available

AN

Simplicity 2105309SM

Bearing

$158.99

$

In Stock, only 1 left!

0

AO

Simplicity 2105357SM

Seal

$5.99

$

In Stock, Qty 5

0

AP

Simplicity 1669298SM

Reinf. Plate

$

$

Not available

AQ

Simplicity 2715091

Thread Forming Screw 3/8"-16 x 1 1/2"

$

$

Not available

AR

Simplicity 2717524

Hex. Jam Locknut, 3/8"-16

$

$

Not available

AS

Simplicity 2105320ASM

Side Bar, 3/16" x 2" x 13-1/16"

$

$

Not available

AT

Simplicity 2105360SM

Spacer, 1" x 7/32" x 3 1/32"
(Superseded to 2105360ASM)

$

$

Not available

AU

Simplicity 705068

Hex. Capscrew, 1/2"-13 x 4"

$10.99

$

Usually ships in 2-12 days

0

AV

Simplicity 2719004

Plain Washer, 1/2"

$

$

Not available

AW

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

AX

Simplicity 2717006

Full Hex. Nut, 1/2"-13

$

$

Not available
