990545 - Simplicity 36" Heavy Duty Tiller Attachment DEFLECTOR AND TINE GROUP Parts Diagram

36" Heavy Duty Tiller Attachment

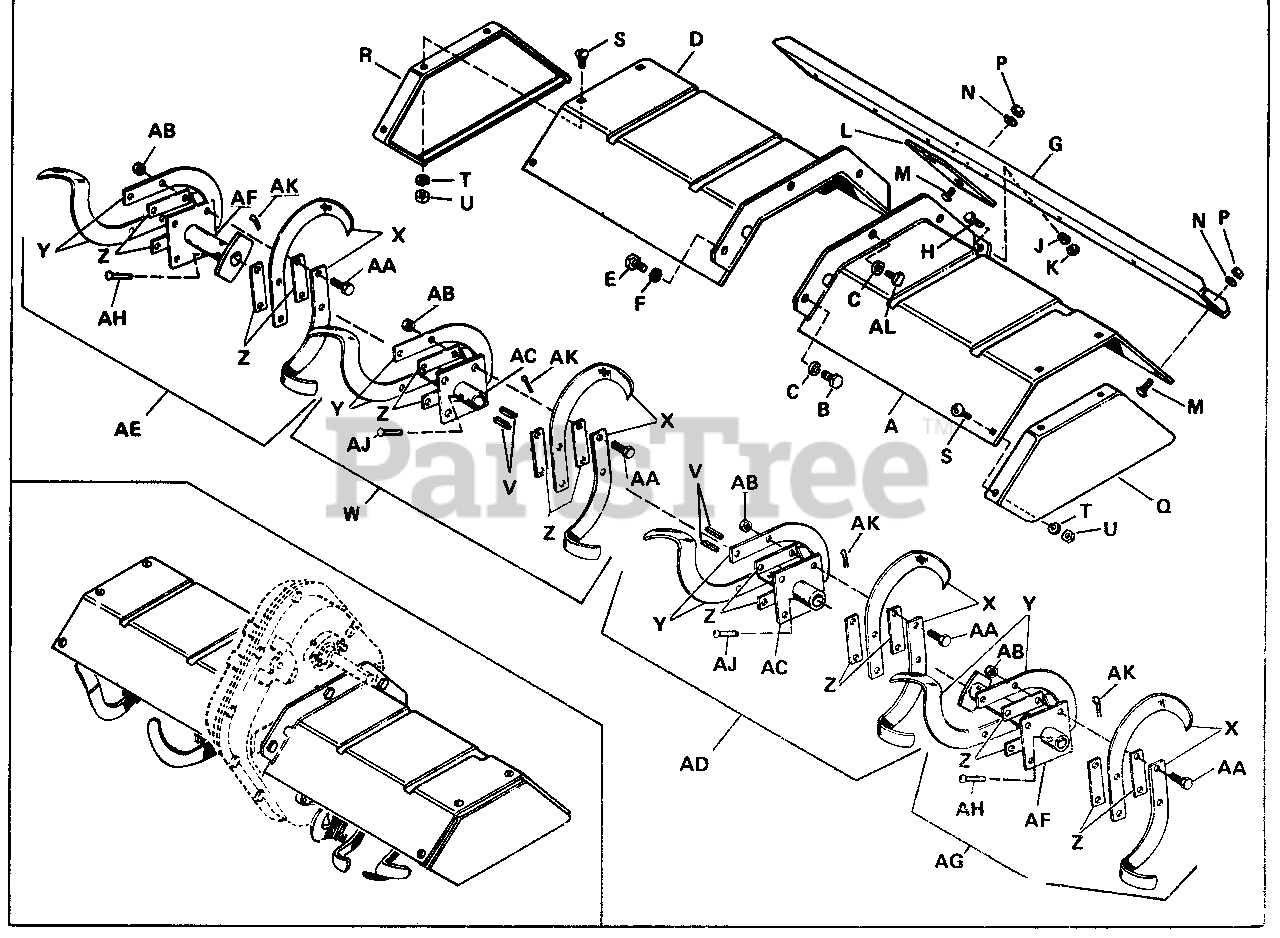

DEFLECTOR AND TINE GROUP Parts Diagram

  • Title

A

Simplicity 2105370ASM

Deflector Assembly, L.H.

$216.99

$

Usually ships in 2-12 days

0

B

Simplicity 2715096

Hex. Capscrew, 3/8"-16 x 1"

$

$

Not available

C

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

D

Simplicity 2105369ASM

Deflector Assembly, R.H.

$233.99

$

Usually ships in 2-12 days

0

E

Simplicity 2715096

Hex. Capscrew, 3/8"-16 x 1"

$

$

Not available

F

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

G

Simplicity 2105330A

Reinf. Channel

$

$

Not available

H

Simplicity 2705031

Hex. Capscrew, 3/8"-16 x 7/8"

$

$

Not available

J

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

K

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

L

Simplicity 2105354ASM

Shield

$6.49

$

Usually ships in 2-12 days

0

M

Simplicity 2702015

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

N

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

P

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

Q

Simplicity 2105273A

Plate Deflector End, L.H.

$

$

Not available

R

Simplicity 2105274A

Plate Deflector End, R.H.

$

$

Not available

S

Simplicity 703011

Carriage Bolt, Short, 5/16"-18 x 1/2"

$7.99

$

Usually ships in 2-12 days

0

T

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

U

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

V

Simplicity 2105337SM

Key

$8.49

$

In Stock, Qty 12

0

W

Simplicity 2105387

Inner Tine Blade Assembly, R.H.

$

$

Not available

X

Simplicity 2105375ASM

Tine Blade, L.H.

$

$

Not available

Y

Simplicity 2105376ASM

Tine Blade, R.H.

$

$

Not available

Z

Simplicity 105377

Spacer, 1/4" x 1" x 4-1/4

$

$

Not available

AA

Simplicity 2715095

Hex Capscrew, 7/16"-20 x 2"

$

$

Not available

AB

Simplicity 2717512

Full Hex. Locknut, 7/16"-20

$

$

Not available

AC

Simplicity 2105381

Hub. Attach. Assembly

$

$

Not available

AD

Simplicity 2105388

Inner Tine Blade Assembly, L.H.

$

$

Not available

AE

Simplicity 2105390

Outer Tine Blade Assembly, R.H.

$

$

Not available

AF

Simplicity 2105384

Tine Plate Assembly

$

$

Not available

AG

Simplicity 2105389

Outer Tine Blade Assembly

$

$

Not available

AH

Simplicity 2118053SM

Pin Tine Shaft
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

AJ

Simplicity 2105249SM

Inner Pin

$16.99

$

Usually ships in 2-12 days

0

AK

Simplicity 2722009

Cotter Pin, 1/8" x 3/4"

$

$

Not available

AL

Simplicity 2715024

Hex Capscrew, 3/8"-16 x 5/8"

$

$

Not available
