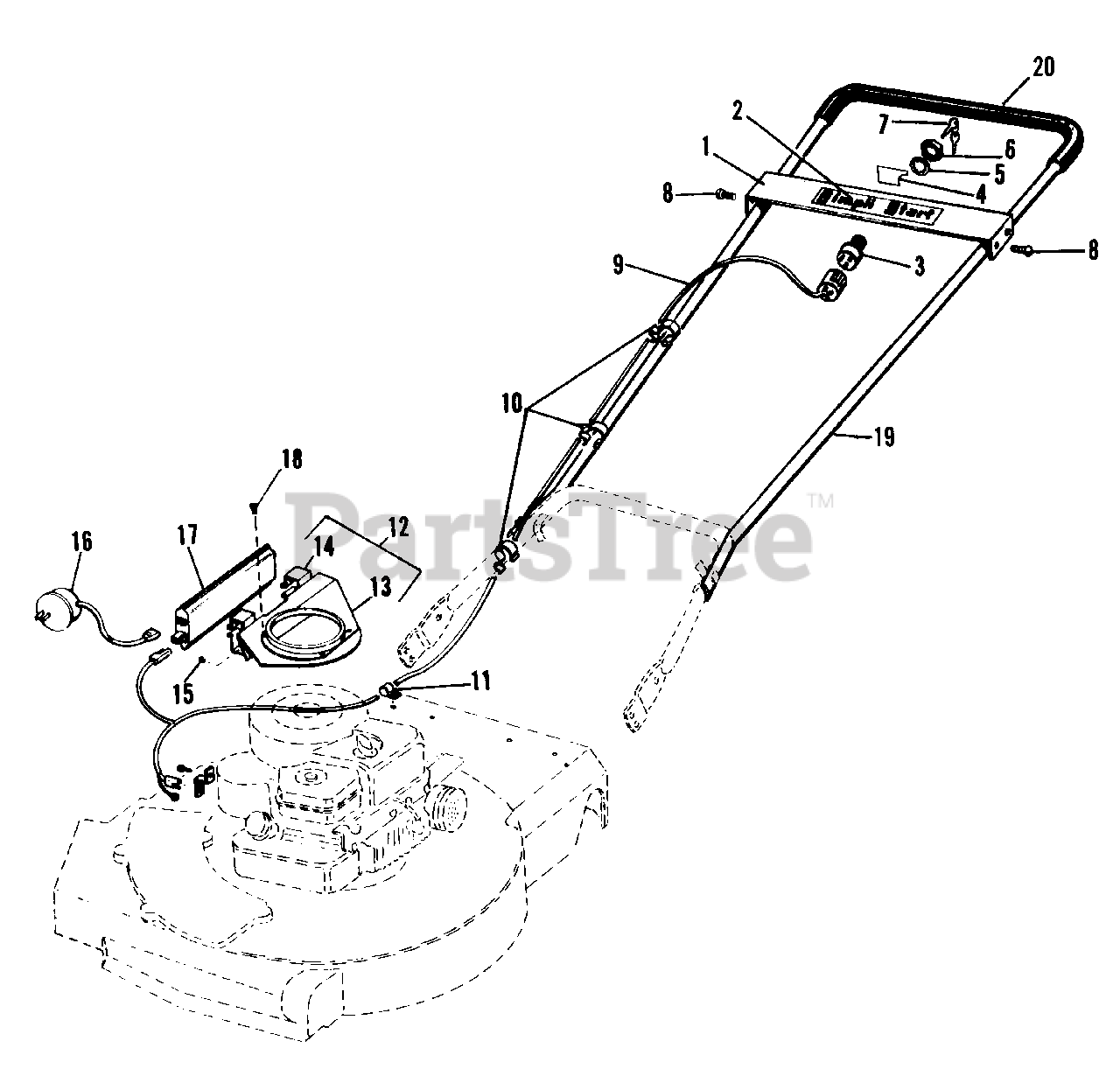

990534 - Simplicity 21" Walk-Behind Mower Electric Start Group Parts Diagram

21" Walk-Behind Mower

Electric Start Group Parts Diagram

  • Title

1

Simplicity 108803

MOUNTING PANEL, Switch

$

$

Not available

2

Simplicity 108813

DECAL, Simplicity Start

$

$

Not available

3

Simplicity 2122201SM

SWITCH, Starting

$

$

Not available

4

Simplicity 108814

DECAL, Starting

$

$

Not available

5

Simplicity 981906

LOCKWASHER, Inter. Tooth,

$

$

Not available

6

Simplicity 2122234SM

NUT, Hex Special
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

7

Simplicity 1717163SM

KEY & RING ASSY (Service

$8.99

$

In Stock, Qty 20+

0

8

Simplicity 2827428

SCREW, Self Thd., 1/4-20 x 3/8

$

$

Not available

9

Simplicity 108830

HARNESS ASSY

$

$

Not available

10

Simplicity 2108812

CLAMP, Cable

$

$

Not available

11

Simplicity 108811

CLAMP, Cable

$

$

Not available

12

Simplicity 108805

SUPPORT ASSY, Ring

$

$

Not available

13

Simplicity 108804

SUPPORT, Ring

$

$

Not available

14

Simplicity 108806

CLIP, Battery

$

$

Not available

15

Simplicity 2828707SM

RIVET, Clip

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 108807

CHARGER, Battery

$

$

Not available

17

Simplicity 108810

BATTERY

$

$

Not available

18

Simplicity 930597

SCREW, Thd. Form #4-40 x 1/4

$

$

Not available

19

Simplicity 108855

HANDLE, Upper

$

$

Not available

20

Simplicity 108793

TUBING, Handle

$

$

Not available
