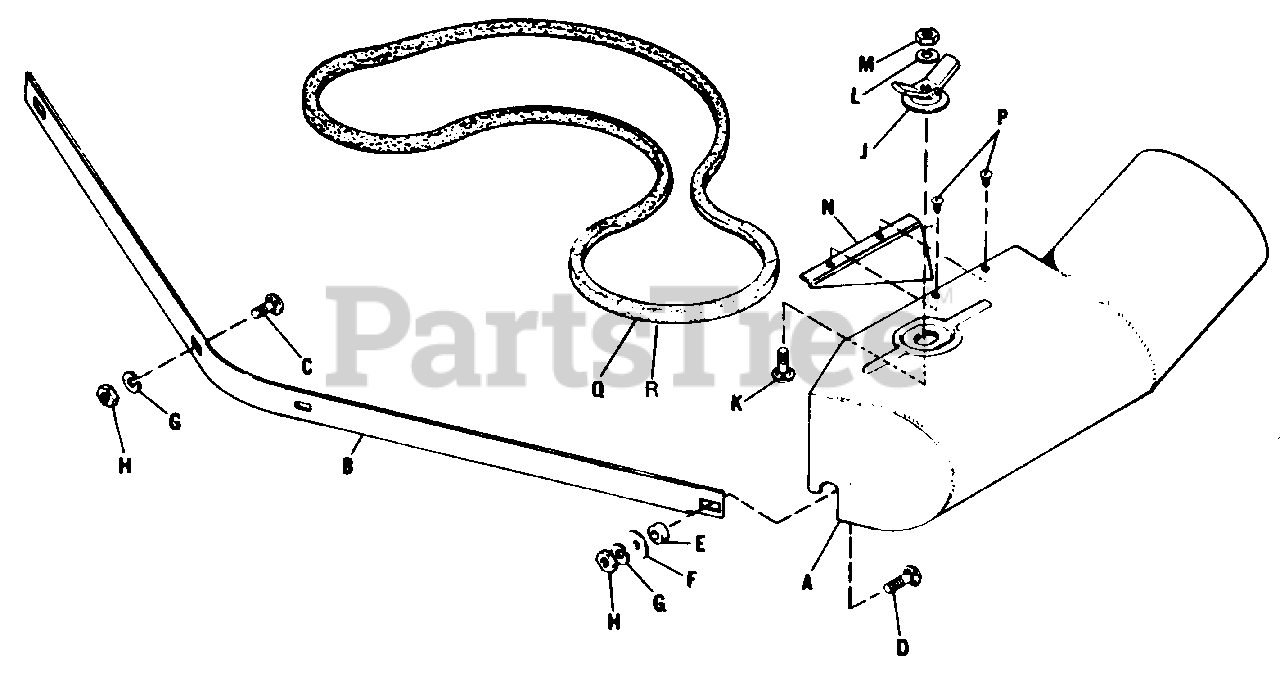

990532 - Simplicity Low Profile Cart Cover Adapter Kit For 42" ROTARY MOWER Mfr's. No. 537 & Mfr's. No. 547 Parts Diagram

Low Profile Cart Cover

Adapter Kit For 42" ROTARY MOWER Mfr's. No. 537 & Mfr's. No. 547 Parts Diagram

  • Title

A

Simplicity 123137

Collector Side Housing Assembly

$

$

Not available

B

Simplicity 123059

Front Baffle

$

$

Not available

C

Simplicity 2703003

Carriage Bolt, 3/8"-16 x 1" lg.

$

$

Not available

D

Simplicity 2703002

Carriage Bolt, 3/8"-16 x 1-1/4" lg.

$

$

Not available

E

Simplicity 2153081

Spacer

$

$

Not available

F

Simplicity 157169

Washer

$

$

Not available

G

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

H

Simplicity 2717003

Nut, Hex, Full, 3/8"-16

$

$

Not available

J

Simplicity 2123060

Nut Assembly

$

$

Not available

K

Simplicity 2703003

Carriage Bolt, 3/8"-16 x 1" lg.

$

$

Not available

L

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

M

Simplicity 2717003

Nut, Hex, Full, 3/8"-16

$

$

Not available

N

Simplicity 123062

Baffle

$

$

Not available

P

Simplicity 714005

Screw, Self Tapping, No.10-24 x 1/2" lg.

$

$

Not available

Q

Simplicity 2105115

"V" Belt for No. 537

$

$

Not available

R

Simplicity 2108505

"V" Belt for No. 547
(Superseded to 1727773SM)

$34.99

$

In Stock, only 3 left!
