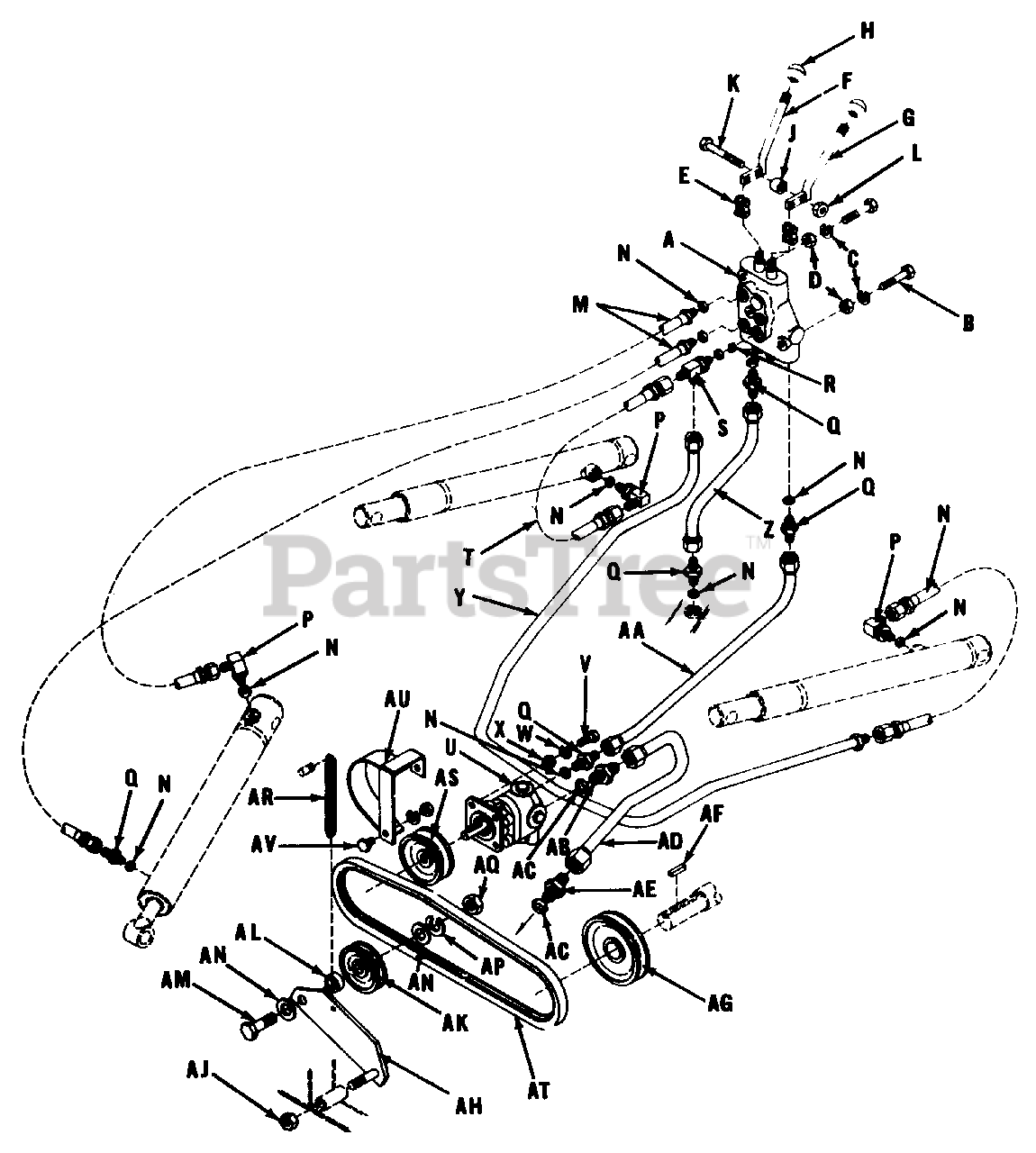

990516 - Simplicity Attaching Kit, Front End Loader, 10hp HYDRAULICS Parts Diagram

Attaching Kit, Front End Loader, 10hp

HYDRAULICS Parts Diagram

  • Title

A

Simplicity 125008

Control Valve Ass'y.

$

$

Not available

B

Simplicity 705062

Hex. Capscrew, 1/4"-20 N.C.x 2"

$41.99

$

Usually ships in 2-12 days

0

C

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

D

Simplicity 2717005

Full Hex. Nut, 1/4"-20 N.C.

$

$

Not available

E

Simplicity 125031

Chain Link

$

$

Not available

F

Simplicity 125021

Bucket Handle

$

$

Not available

G

Simplicity 125022

Lift Handle

$

$

Not available

H

Simplicity 125011

Control Handle Knob

$

$

Not available

J

Simplicity 125024

Spacer

$

$

Not available

K

Simplicity 706019

Hex. Capscrew, 1/4"-28 N.F. x 2-3/4"

$3299.99

$

Usually ships in 2-12 days

0

L

Simplicity 717526

Full Lock Hex. Nut, 1/4"-28 N.F.

$

$

Not available

M

Simplicity 125019

Hose Ass'y.

$

$

Not available

N

Simplicity 125103

"O" Ring

$

$

Not available

P

Simplicity 125079

90ø Elbow Connector

$

$

Not available

Q

Simplicity 125078

Straight Connector (6 BC)

$

$

Not available

R

Simplicity 125012

Orifice Plate Restricter

$

$

Not available

S

Simplicity 125016

Run Tee Connector (6 BCSTC)

$

$

Not available

T

Simplicity 125018

Hose Ass'y.

$

$

Not available

U

Simplicity 125009

Pump Ass'y.-Cessna

$

$

Not available

V

Simplicity 2705007

Hex. Capscrew, 5/16"-18 N.C. x 1"

$

$

Not available

W

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

X

Simplicity 2717001

Hex. Full Nut, 5/16"-18 N.C.

$

$

Not available

Y

Simplicity 125017

Lift Tube Ass'y.

$

$

Not available

Z

Simplicity 125015

Return Tube Ass'y.

$

$

Not available

AA

Simplicity 125014

Pressure Tube Ass'y.

$

$

Not available

AB

Simplicity 125077

Straight Connector (8 BC)

$

$

Not available

AC

Simplicity 125104

"O" Ring

$

$

Not available

AD

Simplicity 125013

Suction Tube Ass'y.

$

$

Not available

AE

Simplicity 125034

Filter Connector

$

$

Not available

AF

Simplicity 125088

Key

$

$

Not available

AG

Simplicity 125067

Pulley

$

$

Not available

AH

Simplicity 125025

Idler Lever Ass'y.

$

$

Not available

AJ

Simplicity 2717515

Full Lock Hex. Nut, 3/8"-24 N.F.

$

$

Not available

AK

Simplicity 125105

Idler Pulley

$

$

Not available

AL

Simplicity 125023

Spacer

$

$

Not available

AM

Simplicity 2705035

Hex. Capscrew, 1/2"-13 N.C. x 2"

$

$

Not available

AN

Simplicity 2719004

Plain Washer, 1/2" Std.

$

$

Not available

AP

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

AQ

Simplicity 2717006

Full Hex. Nut, 1/2"-13 N.C.

$

$

Not available

AR

Simplicity 125112

Tension Spring

$

$

Not available

AS

Simplicity 125010

Pulley

$

$

Not available

AT

Simplicity 125068

"V" Belt

$

$

Not available

AU

Simplicity 125026

Shield

$

$

Not available

AV

Simplicity 2705002

Hex. Capscrew, 1/4"-20 N.C. x 1/2"

$

$

Not available

AW

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AX

Simplicity 2717005

Full Hex. Nut, 1/4"-20 N.C.

$

$

Not available
