990512 - Simplicity Roticul Supermatic Tiller, 5hp Transmission & Tines Parts Diagram

Roticul Supermatic Tiller, 5hp

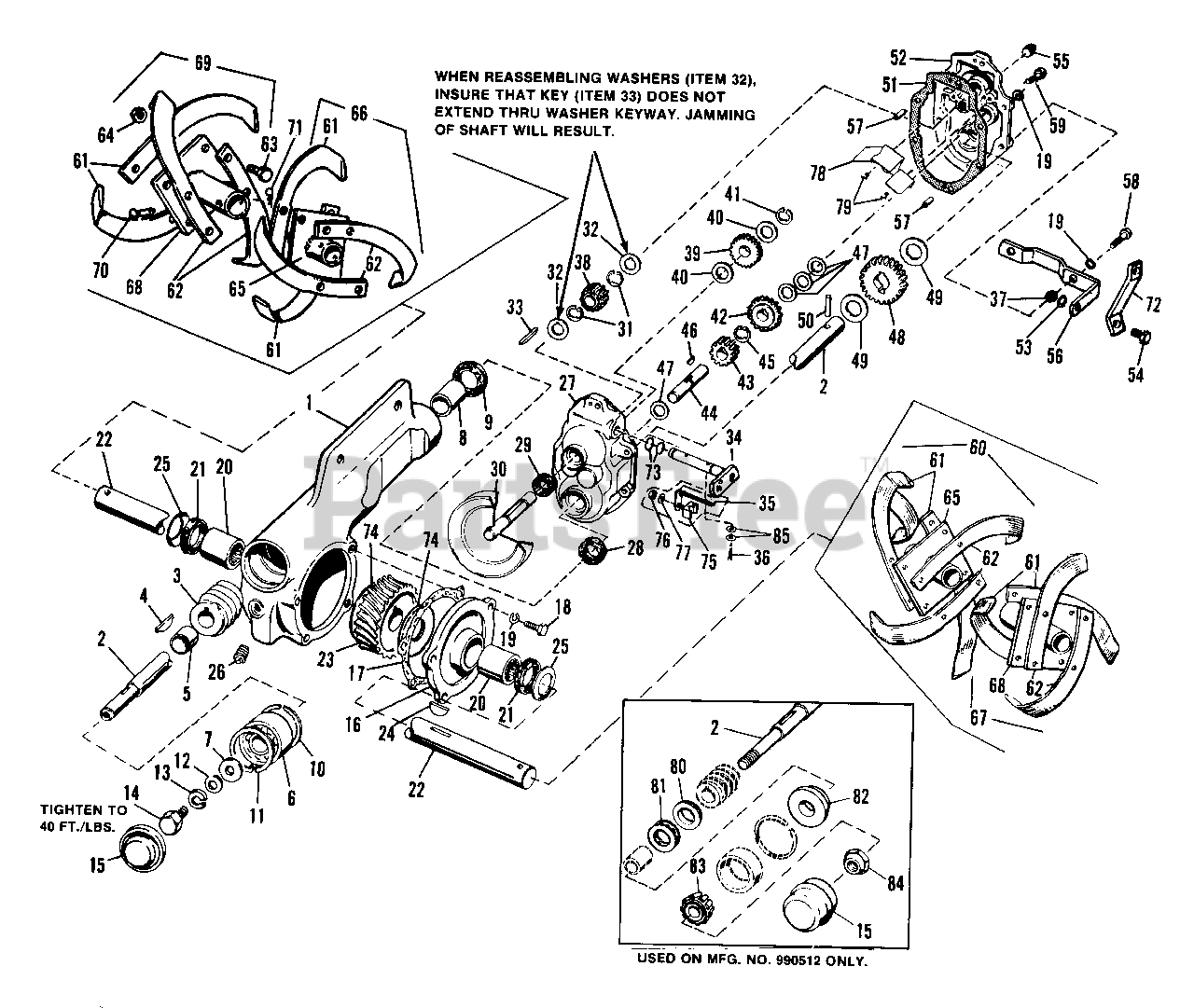

Transmission & Tines Parts Diagram

  • Title

1

Simplicity 103193

HOUSING, Worm Drive

$

$

Not available

1

Simplicity 118387

HOUSING, Worm Drive

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

2

Simplicity 118228

SHAFT, Worm

$

$

Not available

2

Simplicity 118376

SHAFT, Worm

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

3

Simplicity 118330

WORM

$

$

Not available

3

Simplicity 118016

WORM

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

4

Simplicity 911171

KEY

$

$

Not available

5

Simplicity 1180-60

SPACER

$

$

Not available

5

Simplicity 118382

SPACER

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

6

Simplicity 2118011SM

BEARING, Ball

$

$

Not available

6

Simplicity 118374

BEARING, Cup

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

7

Simplicity 1181-78

WASHER

Note: Used On Mfg. No. 990360, 990411 & 990330 Only.

$

$

Not available

8

Simplicity 118072

BUSHING

$

$

Not available

8

Simplicity 118389

BUSHING

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

9

Simplicity 2118117SM

SEAL, Oil

$13.99

$

In Stock, Qty 20+

0

10

Simplicity 1180-94

RING, Snap

$

$

Not available

11

Simplicity 1180-61

RING, Retaining

Note: Used On Mfg. No. 990360, 990411 & 990330 Only.

$

$

Not available

12

Simplicity 2817642

WASHER, Plain, 5/16

Note: Used On Mfg. No. 990360, 990411 & 990330 Only.

$

$

Not available

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

Note: Used On Mfg. No. 990360, 990411 & 990330 Only.

$3.49

$

In Stock, Qty 18

0

14

Simplicity 2827008SM

CAPSCREW, Hex, 3/8-24

Note: Used On Mfg. No. 990360, 990411 & 990330 Only.

$2.99

$

Usually ships in 2-12 days

0

15

Simplicity 1181-79

CUP

$

$

Not available

15

Simplicity 118380

CUP

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

16

Simplicity 1183-16

COVER

$

$

Not available

17

Simplicity 2118024SM

GASKET

$12.99

$

In Stock, only 3 left!

0

18

Simplicity 2821959

CAPSCREW, Hex, 1/4-20 x 5/8

$

$

Not available

19

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

20

Simplicity 2118020SM

BEARING, Needle

$31.99

$

Usually ships in 2-12 days

0

21

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

22

Simplicity 118021

SHAFT, Worm

$

$

Not available

23

Simplicity 118337

GEAR, Worm

$

$

Not available

23

Simplicity 2118022SM

GEAR, Worm

Note: Used On Mfg. No. 990330 Only.

$286.99

$

Usually ships in 2-12 days

0

24

Simplicity 2830246SM

KEY
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

25

Simplicity 2118082SM

WASHER, Cup

$2.99

$

Usually ships in 2-12 days

0

26

Simplicity 2801653

PLUG, Pipe, 3/8

$

$

Not available

27

Simplicity 118221

CASE, Gear

$

$

Not available

28

Simplicity 2118117SM

SEAL, Oil

$13.99

$

In Stock, Qty 20+

0

29

Simplicity 2156084SM

SEAL, Oil

$16.99

$

Usually ships in 2-12 days

0

30

Simplicity 118248

PULLEY & SHAFT ASSY

$

$

Not available

31

Simplicity 2118240

RING, Retaining

$

$

Not available

32

Simplicity 118271

WASHER, Special

$

$

Not available

33

Simplicity 118278

KEY

$

$

Not available

34

Simplicity 118360

LEVER ASSY, Shift

$

$

Not available

34

Simplicity 118266

LEVER ASSY, Shift

Note: Used On Mfg. No. 990330 Only.

$

$

Not available

35

Simplicity 103074

SHIFT KIT

$

$

Not available

35

Simplicity 2118251

BRACKET, Shift

Note: Used On Mfg. No. 990330 Only.

$

$

Not available

36

Simplicity 930592

SCREW, Socket Hd., #10-24 x 5/8

$

$

Not available

37

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 118204

PINION, Shift

$

$

Not available

39

Simplicity 118262

PINION, Reverse

$

$

Not available

40

Simplicity 118264

WASHER, Special

$

$

Not available

41

Simplicity 2118240

RING, Retaining

$

$

Not available

42

Simplicity 118265

PINION

$

$

Not available

43

Simplicity 118201

PINION

$

$

Not available

44

Simplicity 118263

SHAFT, Cluster

$

$

Not available

45

Simplicity 2118240

RING, Retaining

$

$

Not available

46

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

47

Simplicity 2118269

WASHER, Special

$

$

Not available

48

Simplicity 118202

GEAR, Drive

$

$

Not available

49

Simplicity 2118252SM

WASHER, Special

$4.49

$

In Stock, Qty 10

0

50

Simplicity 118203

PIN, Worm Shaft

$

$

Not available

51

Simplicity 2118253SM

GASKET

$5.99

$

Usually ships in 2-12 days

0

52

Simplicity 118261

COVER, Gear Case

$

$

Not available

53

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

54

Simplicity 2817397

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

55

Simplicity 2801652SM

PLUG, Pipe, 1/4

$4.49

$

Usually ships in 2-12 days

0

56

Simplicity 118329

ARM, Gear Case

$

$

Not available

56

Simplicity 118272

ARM, Control

Note: Used On Mfg. No. 990330 Only.

$

$

Not available

57

Simplicity 2821291

PIN, Roll

$

$

Not available

58

Simplicity 930556

SCREW, Hex Hd., Thd. Form., 1/4-14 x 1-1/4

$

$

Not available

59

Simplicity 2822125

SCREW, Hex Hd., Thd. Form., 1/4-20 x 7/8

$

$

Not available

60

Simplicity 118083

BLADE ASSY, L.H. Inner Tine

$

$

Not available

61

Simplicity 1729271SM

BLADE, L.H. Tine

$

$

Not available

62

Simplicity 1729272SM

BLADE, R.H. Tine

$28.99

$

Usually ships in 2-12 days

0

63

Simplicity 920488

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

64

Simplicity 2828867

NUT, Hex, Full, 7/16-20

$

$

Not available

65

Simplicity 118084

PLATE ASSY, Inner Tine

$

$

Not available

66

Simplicity 1653035

BLADE ASSY, R.H. Inner Tine

$

$

Not available

67

Simplicity 105222

EXTENSION, L.H. Tine

$

$

Not available

68

Simplicity 105221

PLATE ASSY, Tine Extension

$

$

Not available

69

Simplicity 105223

EXTENSION, R.H. Tine

$

$

Not available

70

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

71

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

72

Simplicity 118359

BRACKET

$

$

Not available

73

Simplicity 118332

RING, O

$

$

Not available

74

Simplicity 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

75

Simplicity 118313

FORK, Shift

$

$

Not available

76

Simplicity 2823358

NUT, Hex, Full Lock, 1/4-20

$

$

Not available

77

Simplicity 2816955

WASHER, Plain

$

$

Not available

78

Simplicity 118285

BAFFLE

Note: Used On Mfg. No. 990330 Only.

$

$

Not available

79

Simplicity 930555

SCREW, Hex Rd. Hd., Tapping, #10-32 x 5/16

$

$

Not available

80

Simplicity 118379

WASHER, Thrust

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

81

Simplicity 118377

BEARING, Thrust

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

82

Simplicity 118378

SPACER, Thrust

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

83

Simplicity 118373

BEARING, Roller

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

84

Simplicity 118381

NUT, Special

Note: Used On Mfg. No. 990512 Only.

$

$

Not available

85

Simplicity 118384

WASHER, 3/16

Note: Used On Mfg. No. 990512 Only.

$

$

Not available
