990502 - Simplicity 48" Mower Deck LEAF MULCHER Parts Diagram

48" Mower Deck

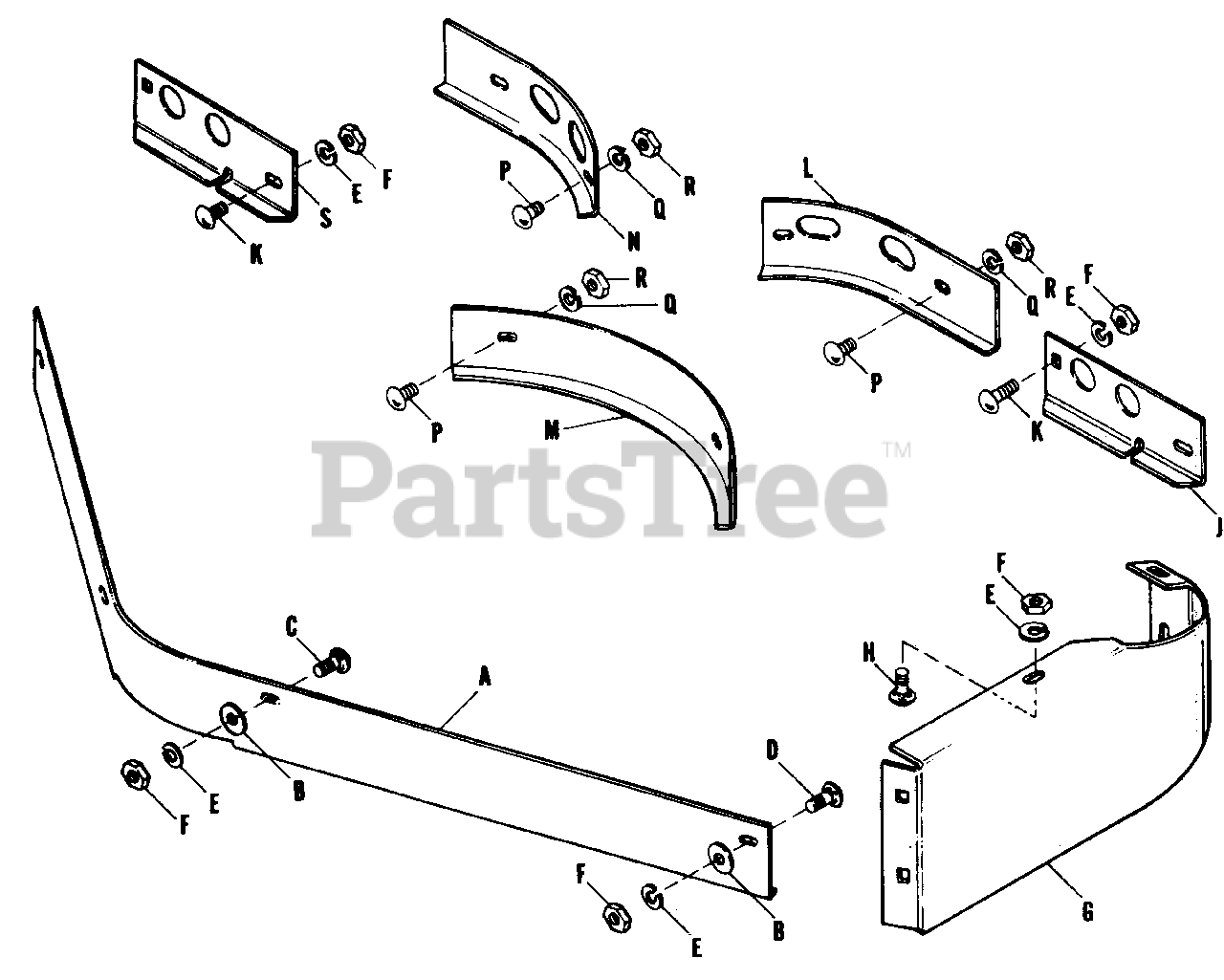

LEAF MULCHER Parts Diagram

  • Title

A

Simplicity 108532

Front Mulcher Baffle

$

$

Not available

B

Simplicity 2719001

Washer, Plain, 3/8" Std.

$

$

Not available

C

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4" lg., w/sq. neck

$

$

Not available

D

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4 lg.

$

$

Not available

E

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

F

Simplicity 2717003

Nut, Hex, Full, 3/8-16

$

$

Not available

G

Simplicity 108533

Housing End Plate

$

$

Not available

H

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4" lg.

$

$

Not available

J

Simplicity 108538

L.H. Rear Baffle

$

$

Not available

K

Simplicity 2702002

Carriage Bolt, 3/8"-16 x 1" lg.

$

$

Not available

L

Simplicity 108536

L.H. Rear Mulcher Baffle

$

$

Not available

M

Simplicity 108534

Center Rear Mulcher Baffle

$

$

Not available

N

Simplicity 108535

R.H. Rear Mulcher Baffle

$

$

Not available

P

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4" lg., w/sq. neck

$

$

Not available

Q

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

R

Simplicity 2717001

Nut, Hex, Full, 5/16"-18

$

$

Not available

S

Simplicity 108537

R.H. Rear Baffle

$

$

Not available
