990502 - Simplicity 48" Mower Deck DECK ASSEMBLY Parts Diagram

48" Mower Deck

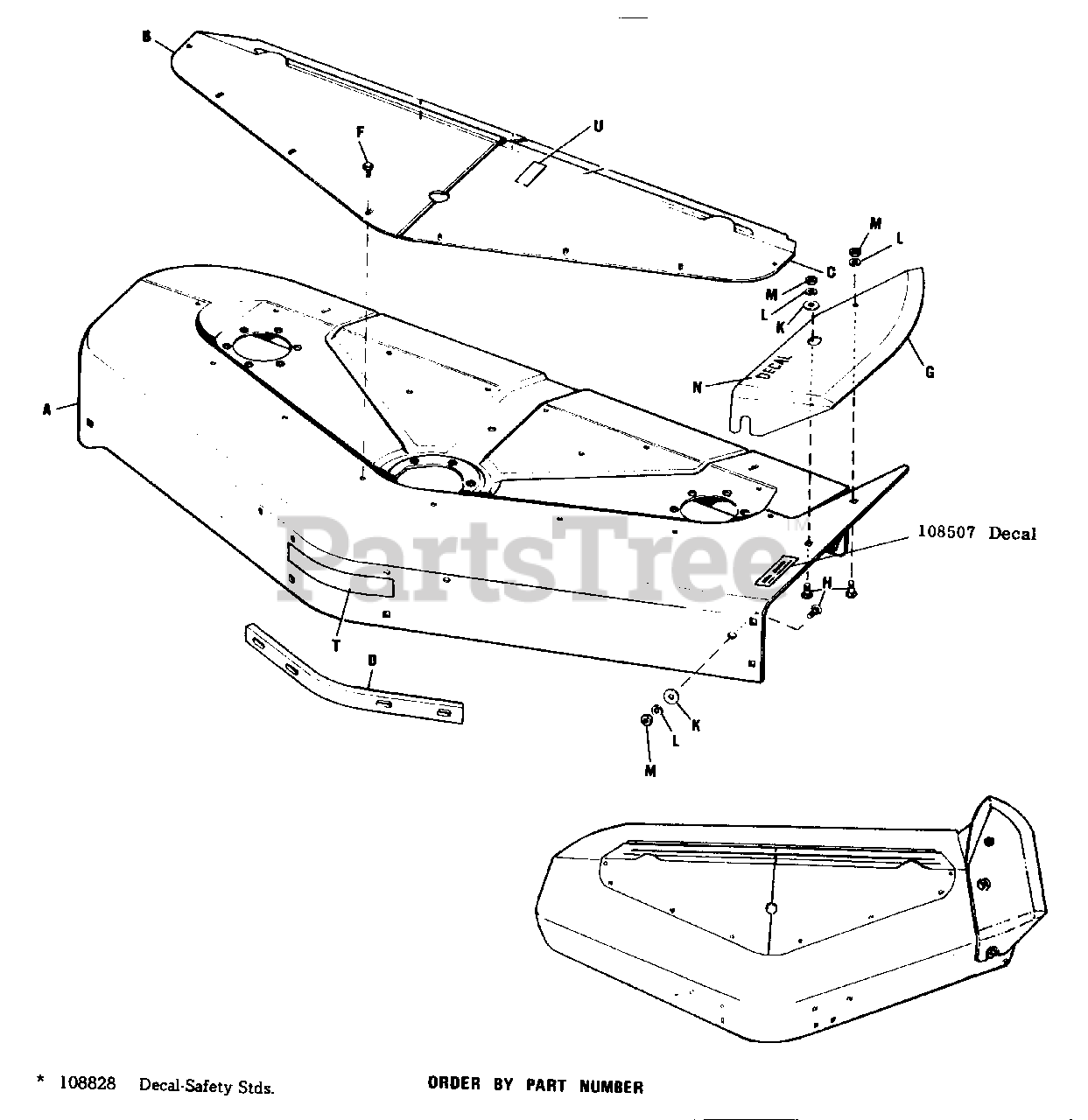

DECK ASSEMBLY Parts Diagram

  • Title

A

Simplicity 2108451

Mower Housing

$

$

Not available

B

Simplicity 2108456

R.H. Cover

$

$

Not available

C

Simplicity 2108457

L.H. Cover

$

$

Not available

D

Simplicity 2108366SM

Reinforcing Bar
(Superseded to 2108366ASM)

$25.99

$

Usually ships in 2-12 days

0

F

Simplicity 2715067

Self Tapping Screw, 1/4"-20 x 3/8" lg.

$

$

Not available

G

Simplicity 108506

Deflector

$

$

Not available

H

Simplicity 2703004

Carriage Bolt,3t8"-16 x 3/4" lg.

$

$

Not available

K

Simplicity 1924356SM

Special Washer
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

L

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

M

Simplicity 2717003

Hex Nut, 3/8"-16

$

$

Not available

N

Simplicity 103031

Decal

$

$

Not available

P

Simplicity 2108770

Guide Belt Assembly

$

$

Not available

T

Simplicity 106719

Film Simplicity

$

$

Not available

U

Simplicity 108102

Decal

$

$

Not available

U

Simplicity 108828

Decal-Safety Stds.

Note: Not Illustrated

$

$

Not available
