990502 - Simplicity 48" Mower Deck ARBOR ASSEMBLIES Parts Diagram

48" Mower Deck

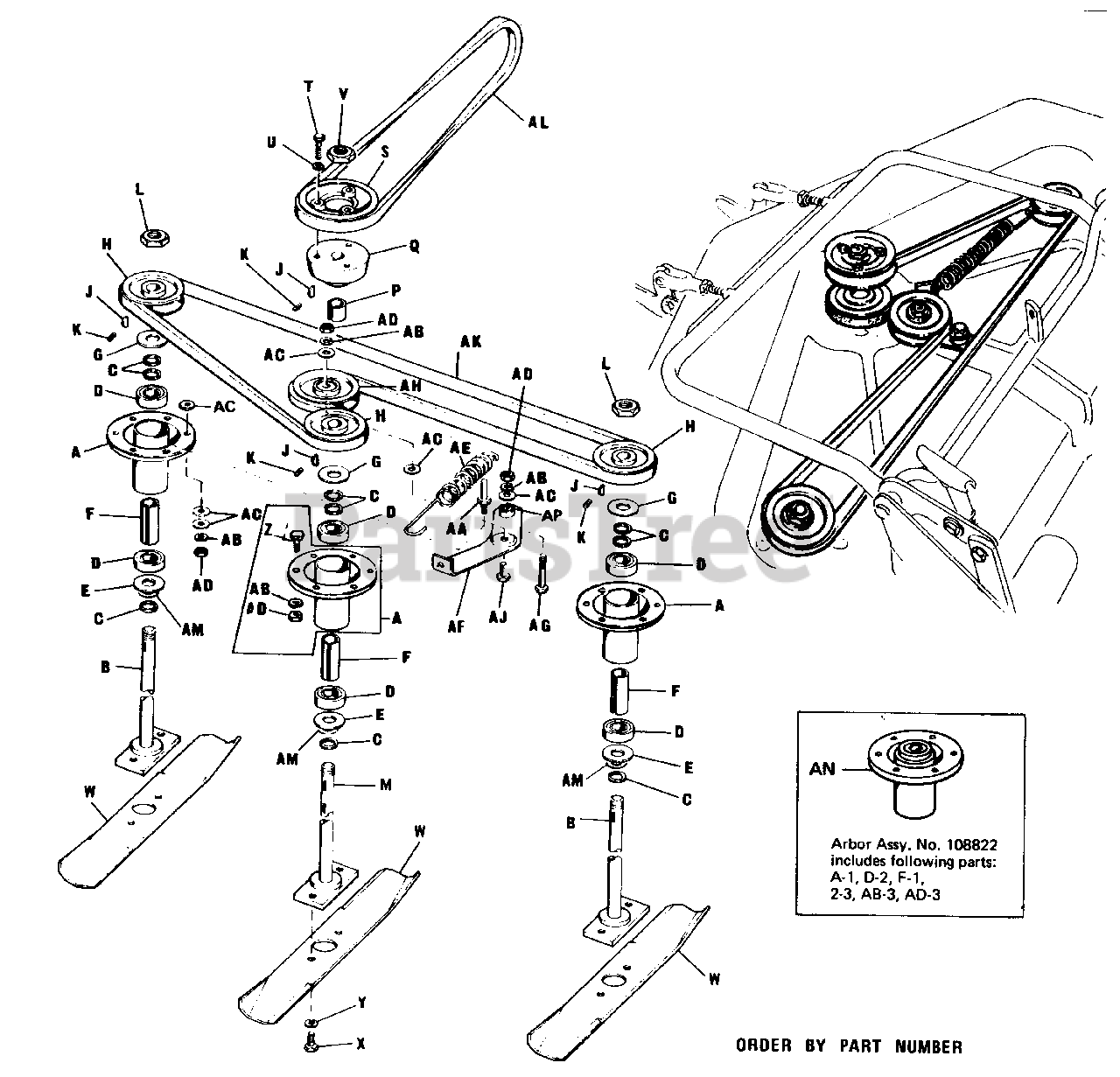

ARBOR ASSEMBLIES Parts Diagram

  • Title

A

Simplicity 2103097

Tube Assembly, Arbor

$

$

Not available

B

Simplicity 2108250SM

Arbor Assembly

$167.99

$

In Stock, only 4 left!

0

C

Simplicity 2108181

Washer

$

$

Not available

D

Simplicity 2108202SM

Bearing

$11.99

$

In Stock, Qty 20+

0

E

Simplicity 2108257SM

Washer

$6.99

$

In Stock, Qty 12

0

F

Snapper 2108201SM

Spacer

$19.99

$

Usually ships in 2-12 days

0

G

Simplicity 2108139

Flinger

$

$

Not available

H

Simplicity 2108142

Pulley

$

$

Not available

J

Simplicity 2725006

Woodruff Key, // 61-3/16 x 5/8"

$

$

Not available

K

Simplicity 2713504

Set Screw, 5/16"-18 x 3/8"

$

$

Not available

L

Simplicity 2717517

Hex. Lock Nut, 3/4"-16

$

$

Not available

M

Simplicity 1685004SM

Arbor Drive Assembly

$

$

Not available

P

Simplicity 124044

Spacer

$

$

Not available

Q

Simplicity 2108436SM

Pulley Hub

$13.99

$

Usually ships in 2-12 days

0

S

Simplicity 2108438SM

Pulley

$

$

Not available

T

Simplicity 2705018

Hex. Cap Screw, 5/16-18 x 1-1/2"

$

$

Not available

U

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

V

Simplicity 2717517

Hex. Lock Nut, 3/4"-16

$

$

Not available

W

Simplicity 2108448

Knife Blade

$

$

Not available

X

Simplicity 2715024

Hex. Cap Screw, 3/8"-16 x 5/8"

$

$

Not available

Y

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

Z

Simplicity 2705004

Screw Hex. Cap, 3/8"-16 NC x 3/4" lg. Zinc or Cad. Pl.P.

$

$

Not available

AA

Simplicity 2156131SM

Stop Stud

$

$

Not available

AB

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AC

Simplicity 2719002

Plain Washer, 5/16 "

$

$

Not available

AD

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

AE

Simplicity 2108449SM

Tension Spring

$52.99

$

Usually ships in 2-12 days

0

AF

Simplicity 2108473SM

Idler Lever Assembly

$

$

Not available

AG

Simplicity 2705010

Hex. Cap Screw, 3/8"-16 x 1-3/4"

$

$

Not available

AH

Simplicity 2108386SM

Idler Pulley

$

$

Not available

AJ

Simplicity 2108418

Screw

$

$

Not available

AK

Simplicity 2108450

"V" Belt

$

$

Not available

AL

Simplicity 2108458SM

BELT, A-Sect, 45.10

$39.99

$

In Stock, only 2 left!

0

AM

Simplicity 2108472

Washer

$

$

Not available

AN

Simplicity 2108822

Arbor Assembly with Bearings and Hardware

$

$

Not available

AP

Simplicity 1729274SM

Inner Race

$

$

Not available
