990492 - Simplicity Grass Catcher GRASS CATCHER Parts Diagram

Grass Catcher

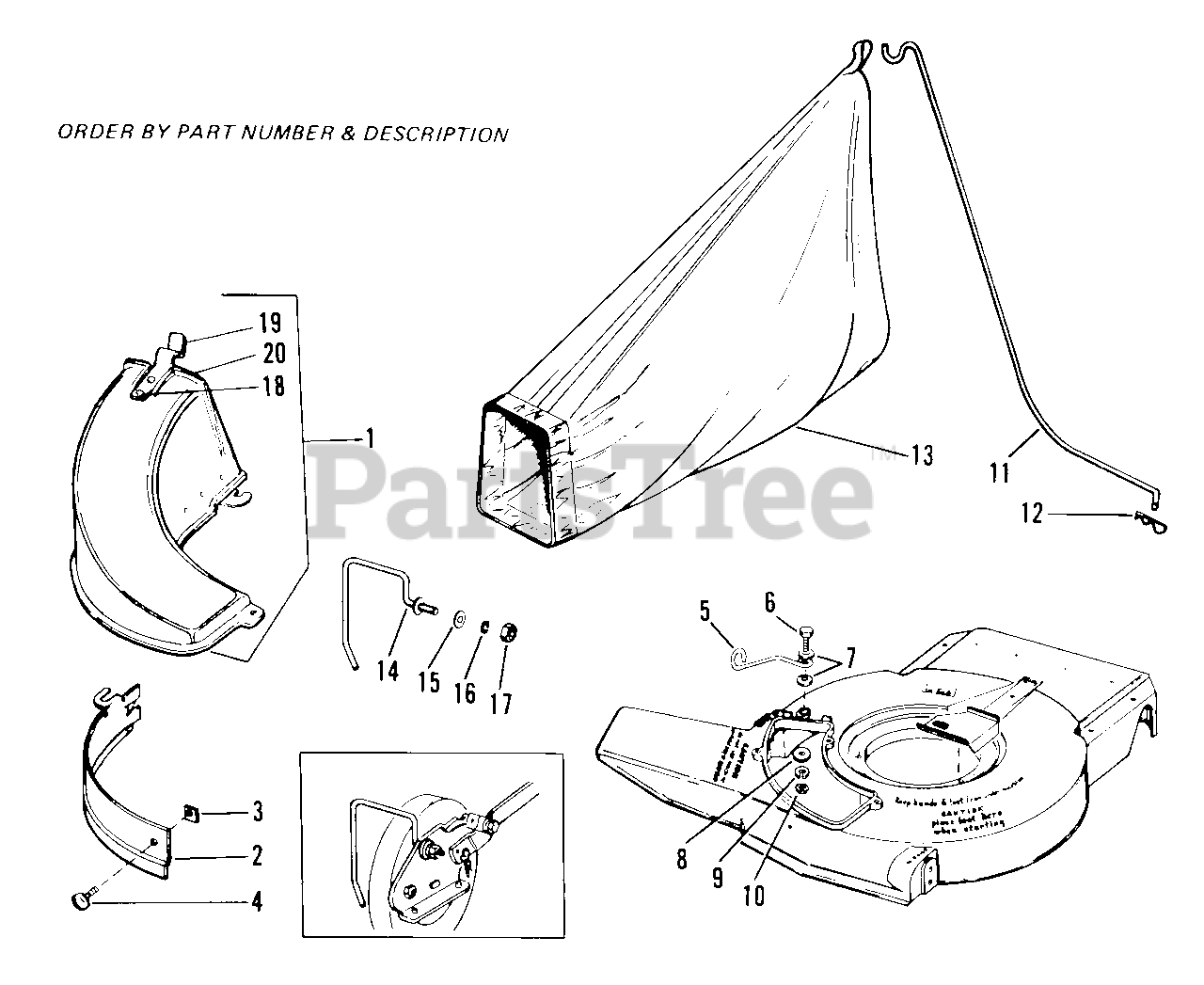

GRASS CATCHER Parts Diagram

  • Title

1

Simplicity 171648

CHUTE ASSY

$

$

Not available

2

Simplicity 171644

BAFFLE

$

$

Not available

3

Simplicity 2828705

NUT, Speed

$

$

Not available

4

Simplicity 2828694

SCREW, Thumb, 1/4-20 x 5/8

$

$

Not available

5

Simplicity 108853

GUARD, Bag

$

$

Not available

6

Simplicity 2817396

CAPSCREW, Hex, 1/4-20 x 1

$

$

Not available

7

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

8

Simplicity 2154026

WASHER

$

$

Not available

9

Simplicity 2816964SM

LOCKWASHER, 1/4 916964
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

10

Simplicity 2816622SM

NUT, Full Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 108786

ROD, Support Bag

$

$

Not available

12

Simplicity 1918196SM

CLIP, Hairpin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 172903

BAG ASSY

$

$

Not available

14

Simplicity 1608642

GUARD, Bag

$

$

Not available

15

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372SM

NUT, Hex Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 2724601

RIVET

$

$

Not available

19

Simplicity 108634

CLIP

$

$

Not available

20

Simplicity 108826

CLIP, Plate

$

$

Not available
