990483 - Simplicity Sno-Away 26" Snow Thrower, 6hp Transmission Group Parts Diagram

Sno-Away 26" Snow Thrower, 6hp

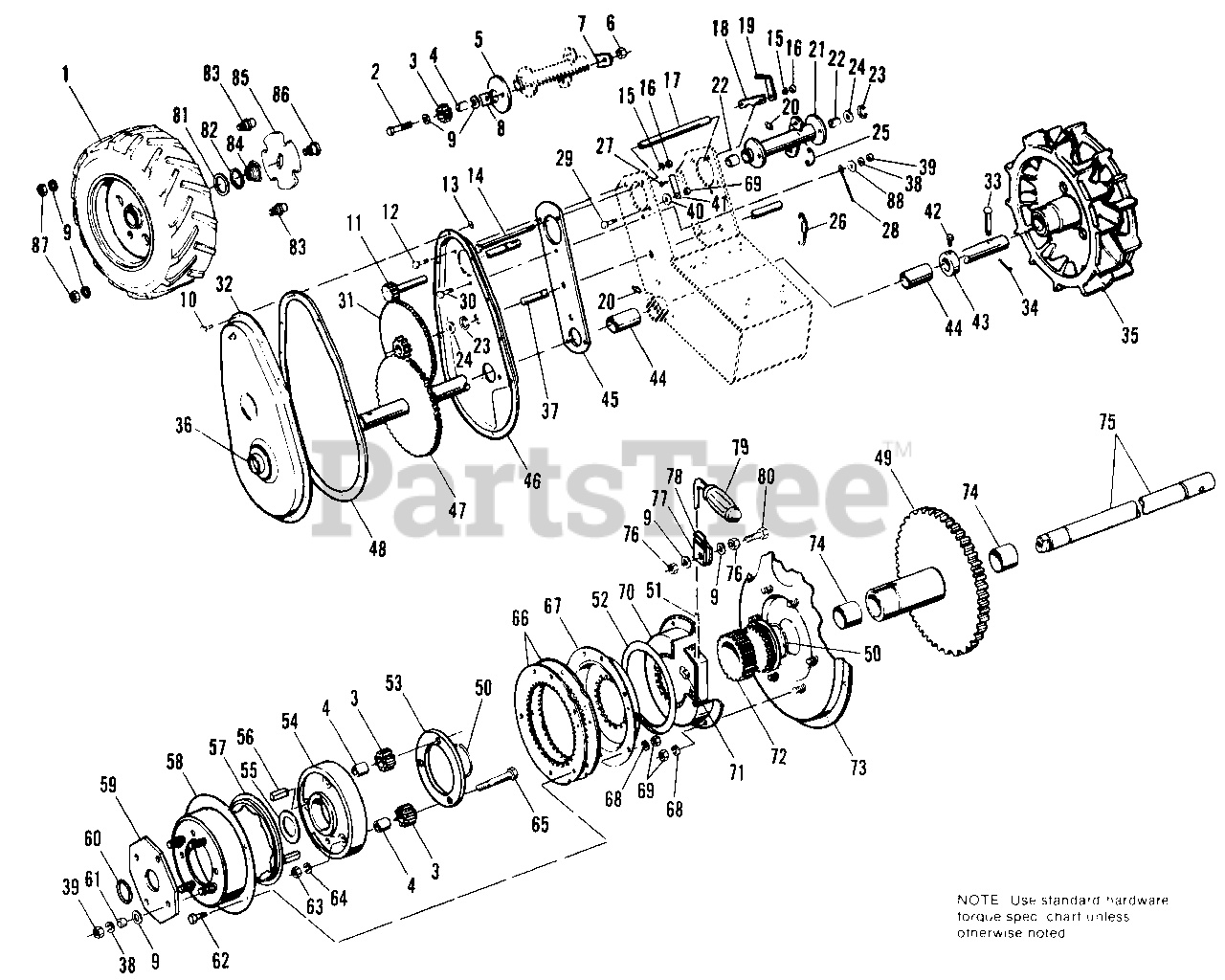

Transmission Group Parts Diagram

  • Title

1

Simplicity 161161

WHEEL & TIRE ASSY.

$

$

Not available

2

Simplicity 930575

CAPSCREW, Hex Hd., L.H. Thd., 3/8-16 x 1-1/2

$

$

Not available

3

Simplicity 121118

PINION, Reverse (Qty. 1 used on 990482 & 990558)

$

$

Not available

4

Simplicity 121163

SPACER (Qty. 1 used on 990482 & 990558)

$

$

Not available

5

Simplicity 153094

SHIELD

$

$

Not available

6

Simplicity 153090

NUT, Hex, Full, L.H. Thd., 3/8-16

$

$

Not available

7

Simplicity 121139

PLATE, Lock

$

$

Not available

8

Simplicity 121107

SPACER, Reverse Pinion

$

$

Not available

9

Simplicity 2817642

WASHER, Plain, 5/16 (Qty. 6 used on 990482 & 990558)

$

$

Not available

10

Simplicity 2828688

SCREW, Self Tapping. #10 X 1/2

$

$

Not available

11

Simplicity 2121115SM

SHAFT ASSY., Pulley

$90.99

$

Usually ships in 2-12 days

0

12

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

13

Simplicity 928699

NUT, Speed

$

$

Not available

14

Simplicity 106216

BOLT, Frame

$

$

Not available

15

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 106217

SPACER, Frame

$

$

Not available

18

Simplicity 106215

PLATE, Friction, Stop

$

$

Not available

19

Simplicity 106777

GUIDE, Clutch Wire (990482 & 990558 Only)

$

$

Not available

20

Simplicity 2812808SM

FITTING, Grease (Qty. 2 used on 990482 & 990558)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 106199

HOUSING ASSY., Bearing

$

$

Not available

22

Simplicity 2156064SM

BEARING

$22.99

$

Usually ships in 2-12 days

0

23

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

24

Simplicity 2153079

WASHER

$

$

Not available

25

Simplicity 153011

EXTENSION, Spring

$

$

Not available

26

Simplicity 153121

SPRING, Reverse Lever

$

$

Not available

27

Simplicity 919804

SCREW, Self Tapping, #10 x 3/8

$

$

Not available

28

Simplicity 121044

PIN, Lock

$

$

Not available

29

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

30

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

31

Simplicity 103206

GEAR ASSY.

$

$

Not available

32

Simplicity 153106

COVER ASSY, Gear Case

$

$

Not available

33

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

34

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 106420

WHEELS, Steel

$

$

Not available

36

Simplicity 8061055

WASHER, Retaining

$

$

Not available

37

Simplicity 106193

SHAFT, Intermediate

$

$

Not available

38

Simplicity 1916965SM

LOCKWASHER, 3/8 (Qty. 1 used on 990482 & 990558)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

39

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16 (Qty. 1 used on 990482 & 990558)
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

40

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

41

Simplicity 928723

DETENT, Neutral

$

$

Not available

42

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 10

0

43

Simplicity 2154065SM

COLLAR, Set

$113.99

$

Usually ships in 2-12 days

0

44

Simplicity 153089

BEARING

$

$

Not available

45

Simplicity 153114

GASKET

$

$

Not available

46

Simplicity 153105

CASE, Gear

$

$

Not available

47

Simplicity 106435

AXLE & GEAR ASSY. (990482 Only)

$

$

Not available

47

Simplicity 161164

AXLE & GEAR ASSY. (990558 Only)

$

$

Not available

48

Simplicity 153115

GASKET, Gear Case

$

$

Not available

49

Simplicity 1656424

GEAR & TUBE ASSY. (990483 & 990559 Only)

$

$

Not available

50

Simplicity 121167

RING, Snap (990483 & 990559 Only)

$

$

Not available

51

Simplicity 106410

ROD ASSY., Shift (990483 & 990559 Only)

$

$

Not available

52

Simplicity 121186

SEAL (990483 & 990559 Only)

$

$

Not available

53

Simplicity 121162

RING, Bolt (990483 & 990559 Only)

$

$

Not available

54

Simplicity 106416

SPIDER (990483 & 990559 Only)

$

$

Not available

55

Simplicity 106391

WASHER (990483 & 990559 Only)

$

$

Not available

56

Simplicity 106394

KEY (990483 & 990559 Only)

$

$

Not available

57

Simplicity 121185

PLATE, Thrust (990483 & 990559 Only)

$

$

Not available

58

Simplicity 106407

CARRIER ASSY. (990483 & 990559 Only)

$

$

Not available

59

Simplicity 106405

PLATE, Axle, R.H. (990483 & 990559 Only)

$

$

Not available

60

Simplicity 2154291SM

RING, Snap (990483 & 990559 Only)

$6.99

$

Usually ships in 2-12 days

0

61

Simplicity 1063-92

SPACER (990483 & 990559 Only)

$

$

Not available

62

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8 (990483 & 990559 Only)

$

$

Not available

63

Simplicity 2823736

NUT, Hex, Full, 3/8-24 (990483 & 990559 Only)

$

$

Not available

64

Simplicity 2820427SM

LOCKWASHER, Ext., 3/8 (990483 & 990559 Only)
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

65

Simplicity 2822128

CAPSCREW, Hex Hd., 3/8-24 x 1-1/2 (990483 & 990559 Only)

$

$

Not available

66

Simplicity 121151

GEAR, Ring (990483 & 990559 Only)

$

$

Not available

67

Simplicity 121148

COVER ASSY. (990483 & 990559 Only)

$

$

Not available

68

Simplicity 2816964SM

LOCKWASHER, 1/4 (990483 & 990559 Only)
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

69

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20 (990483 & 990559 Only)
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

70

Simplicity 121146

HOUSING ASSY. (990483 & 990559 Only)

$

$

Not available

71

Simplicity 121169

BLOCK, Shift (990483 & 990559 Only)

$

$

Not available

72

Simplicity 121187

GEAR ASSY., Sun (990483 & 990559 Only)

$

$

Not available

73

Simplicity 121144

COVER ASSY., Gear Case (990483 & 990559 Only)

$

$

Not available

74

Simplicity 2153068SM

BEARINGS (990483 & 990559 Only)

$31.99

$

Usually ships in 2-12 days

0

75

Simplicity 106406

SHAFT, Axle (990483 Only)

$

$

Not available

75

Simplicity 161170

SHAFT, Axle (990559 Only)

$

$

Not available

76

Simplicity 2823362

LOCKNUT, Hex, 5/16-18 (990483 & 990559 Only)

$

$

Not available

77

Simplicity 153074

GUIDE, Rod (990483 & 990559 Only)

$

$

Not available

78

Simplicity 2121175SM

LINER (990483 & 990559 Only)

$7.99

$

Usually ships in 2-12 days

0

79

Simplicity 106572

GRIP (990483 & 990559 Only)

$

$

Not available

80

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4 (990483 & 990559 Only)

$

$

Not available

81

Simplicity 153088

WASHER (990558 & 990559 Only)

$

$

Not available

82

Simplicity 158396

RING, Retaining (990558 & 990559 Only)

$

$

Not available

83

Simplicity 161167

STUD (990558 & 990559 Only)

$

$

Not available

84

Simplicity 2161176SM

SPRING (990558 & 990559 Only)

$3.99

$

In Stock, only 1 left!

0

85

Simplicity 161168

PLATE (990558 & 990559 Only)

$

$

Not available

86

Simplicity 2161166

BOLT, Shoulder (990558 & 990559 Only)

$

$

Not available

87

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

88

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
