990483 - Simplicity Sno-Away 26" Snow Thrower, 6hp Spout Group Parts Diagram

Sno-Away 26" Snow Thrower, 6hp

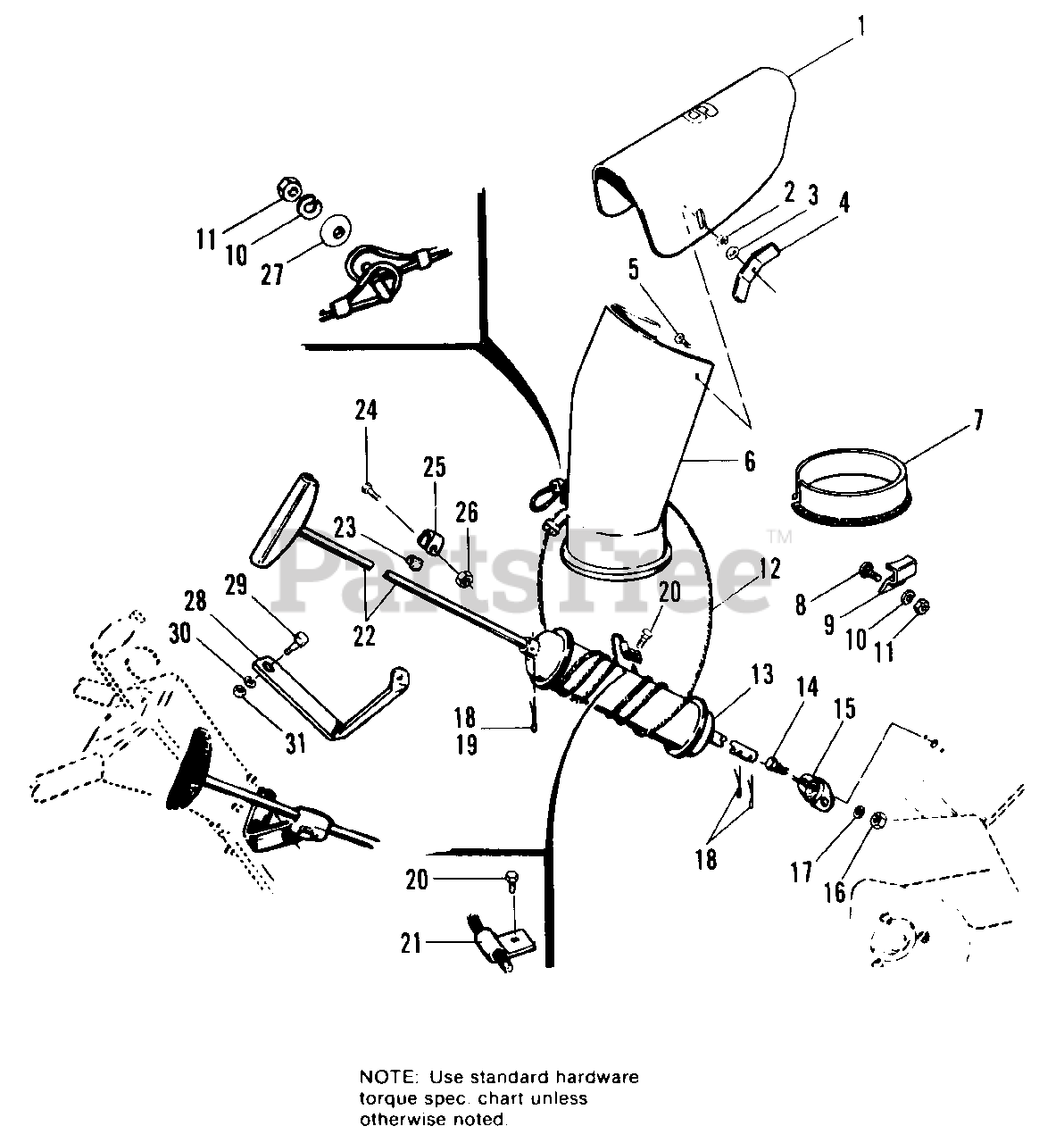

Spout Group Parts Diagram

  • Title

1

Simplicity 106760

EXTENSION, Spout

$

$

Not available

2

Simplicity 2828710

LOCKWASHER, Pyramdial Type, 3/8

$

$

Not available

3

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

5

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

6

Simplicity 106762

SPOUT ASSY.

$

$

Not available

7

Simplicity 161280

LINER

$

$

Not available

8

Simplicity 2823346

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

9

Simplicity 106893

PLATE, Hold Down

$

$

Not available

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

12

Simplicity 103284

CABLE ASSY., Kit

$

$

Not available

13

Simplicity 106950

TUBE ASSY., Spout Control

$

$

Not available

14

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

15

Simplicity 2171388SM

BEARING

$12.99

$

In Stock, only 1 left!

0

16

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 15

0

17

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 17

0

18

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4 (990551, 990558 & 990559 Only)

$

$

Not available

18

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8 (990482 & 990483 Only)

$

$

Not available

19

Simplicity 918455

PIN, Cotter, 5/32 x 1 (990482 & 990483 Only)

$

$

Not available

20

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

21

Simplicity 154247

CLAMP

$

$

Not available

22

Simplicity 106951

HANDLE ASSY.

$

$

Not available

23

Simplicity 2121175SM

LINER

$8.49

$

Usually ships in 2-12 days

0

24

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

25

Simplicity 2152050SM

GUIDE, Rod

$10.99

$

Usually ships in 2-12 days

0

26

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

27

Simplicity 2106785

CUP, Washer

$

$

Not available

28

Simplicity 106521

SUPPORT, Spout Adjusting Rod (990482, 990483, 990558 & 990559 Only)

$

$

Not available

29

Simplicity 2819316

CAPSCREW, Hex Hd., 1/4-20 x 1-3/4 (990482, 990483, 990558 & 990559 Only)

$

$

Not available

30

Simplicity 2816964SM

LOCKWASHER, 1/4 (990482, 990483, 990558 & 990559 Only)
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 17

0

31

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20 (990482, 990483, 990558 & 990559 Only)
(Superseded to 703127)

$3.49

$

In Stock, Qty 15

0
