990476 - Simplicity 27" Rotary Snow Thrower Attachment HITCH GROUP Parts Diagram

27" Rotary Snow Thrower Attachment

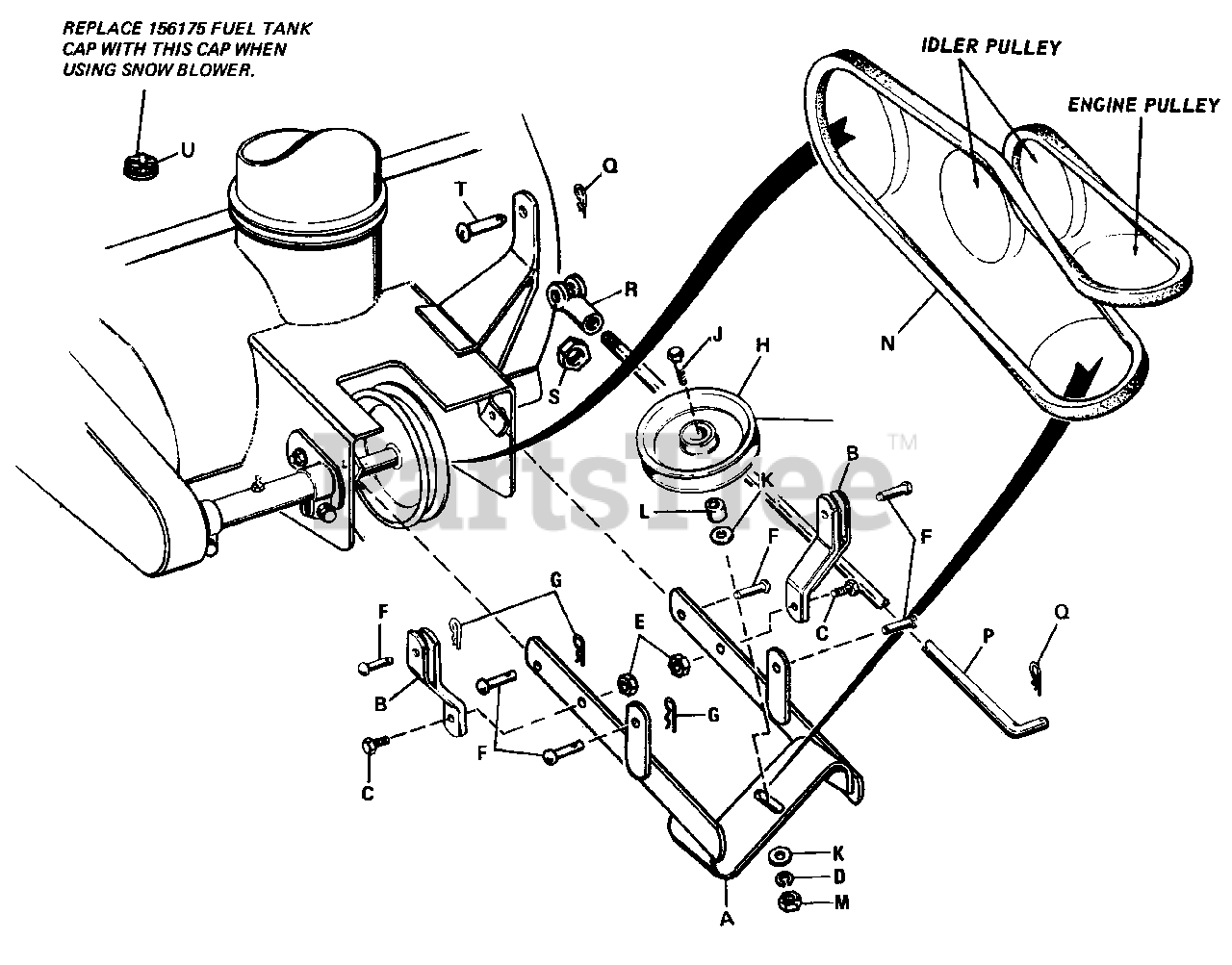

HITCH GROUP Parts Diagram

  • Title

A

Simplicity 106803

Hitch Assembly

$

$

Not available

B

Simplicity 106504

Support Arm Assembly

$

$

Not available

C

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

D

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

E

Simplicity 2717510

Hex. Nut, Full Lock, 3/8"-16

$

$

Not available

F

Simplicity 2156306SM

Pin

$7.49

$

In Stock, Qty 14

0

G

Simplicity 2106788

Spring Clip

$

$

Not available

H

Simplicity 2101096SM

Pulley

$59.99

$

In Stock, only 3 left!

0

J

Simplicity 2705010

Hex. Capscrew, 3/8"-16 x 1-3/4" lg.

$

$

Not available

K

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

L

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 1 left!

0

M

Simplicity 2717003

Hex. Nut, Full, 3/8"-16

$

$

Not available

N

Simplicity 2108508

"V" Belt
(Superseded to 1713515SM)

$34.99

$

In Stock, Qty 20+

0

P

Simplicity 106812

Front Lift Rod

$

$

Not available

Q

Simplicity 2106788

Spring Clip

$

$

Not available

R

Simplicity 2157631

Adj. Yoke

$

$

Not available

S

Simplicity 717008

Hex. Nut, Full, 1/2"-20

$

$

Not available

T

Simplicity 2154305

Yoke Pin

$

$

Not available

U

Simplicity 106798

Cap (Winter) Fuel Tank

$

$

Not available
