990468 - Simplicity Hydraulic Kit LIFT GROUP - HYDRAULIC - Diagram 3 Parts Diagram

Hydraulic Kit

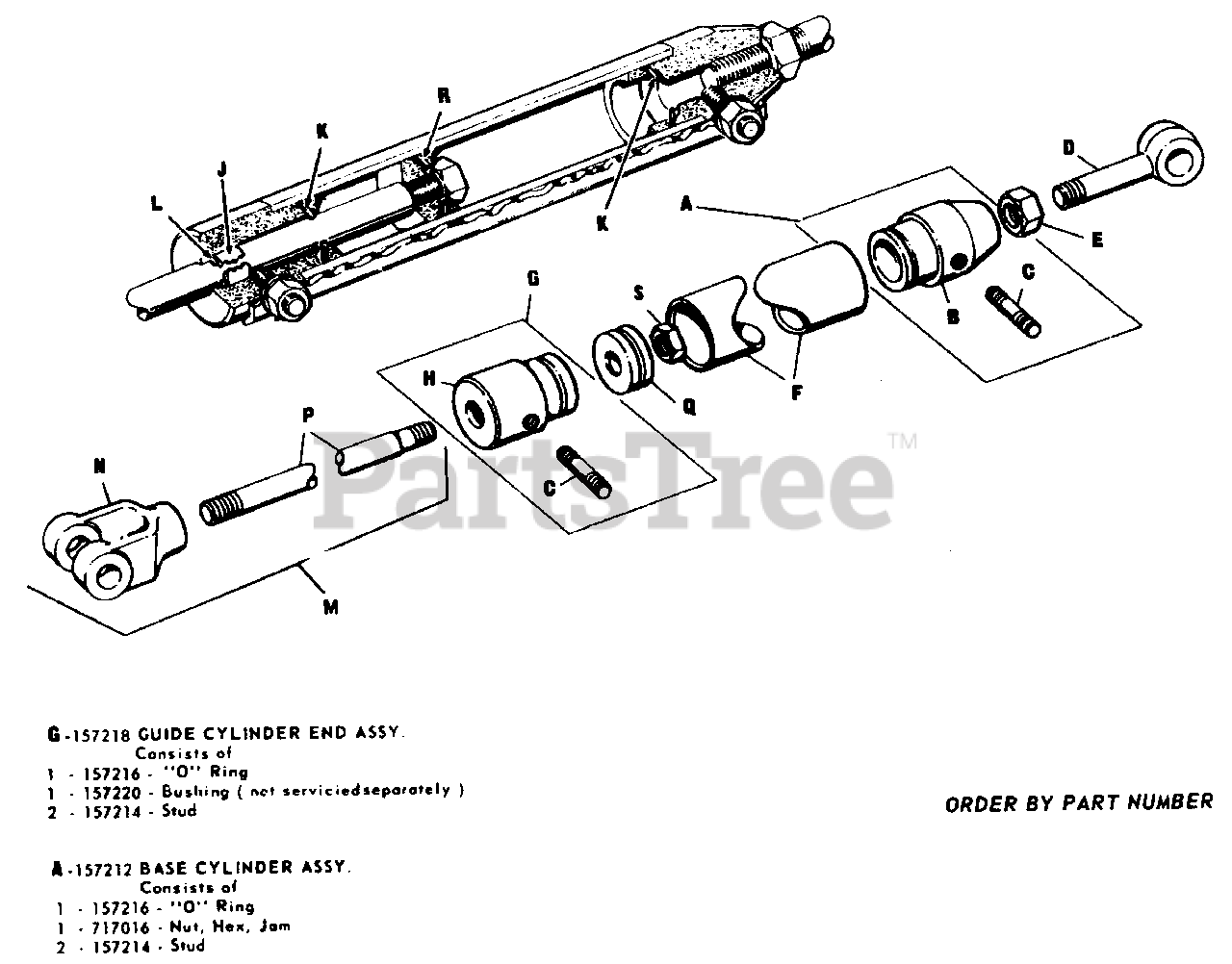

LIFT GROUP - HYDRAULIC - Diagram 3 Parts Diagram

  • Title

A

Simplicity 157212

Cylinder Base Sub-Assembly-Consists of:

$

$

Not available

A

Simplicity 157216

"O" Ring

Note: Included in part no. 157212.

$

$

Not available

A

Simplicity 2717016

Nut, Hex Jam

Note: Included in part no. 157212.

$

$

Not available

A

Simplicity 157214

Stud

Note: Included in part no. 157212.

$

$

Not available

B

Simplicity 157213

Cylinder Base

$

$

Not available

C

Simplicity 157214

Stud Bolt, 5/16"-18 x 7/8"

$

$

Not available

D

Simplicity 2157215SM

Bolt Eye

$

$

Not available

E

Simplicity 2717016

Jam Hex. Nut 1/2"-20

$

$

Not available

F

Simplicity 157217

Cylinder

$

$

Not available

G

Simplicity 157218

Sub Assembly Guide-Consists of:

$

$

Not available

G

Simplicity À157216

"O" Ring

Note: Included in part no. 157218.

$

$

Currently unavailable

G

Simplicity À157220

Bushing (not serviced separately)

Note: Included in part no. 157218.

$

$

Currently unavailable

G

Simplicity À157214

Stud

Note: Included in part no. 157218.

$

$

Currently unavailable

H

Simplicity 157219

Cylinder End Guide

$

$

Not available

J

Simplicity 157220

Bushing

$

$

Not available

K

Simplicity 157216

"O" Ring

$

$

Not available

L

Simplicity 157221

"O" Ring

$

$

Not available

M

Simplicity 157222

Yoke & Rod Sub-Assembly

$

$

Not available

N

Simplicity 157223

Yoke

$

$

Not available

P

Simplicity 157224

Piston Rod

$

$

Not available

Q

Simplicity 157226

Piston

$

$

Not available

R

Simplicity 157227

"O" Ring

$

$

Not available

S

Simplicity 717009

Full Hex. Nut

$

$

Not available
