990464 - Simplicity 10" Heavy Duty Plow 10" PLOW Parts Diagram

10" Heavy Duty Plow

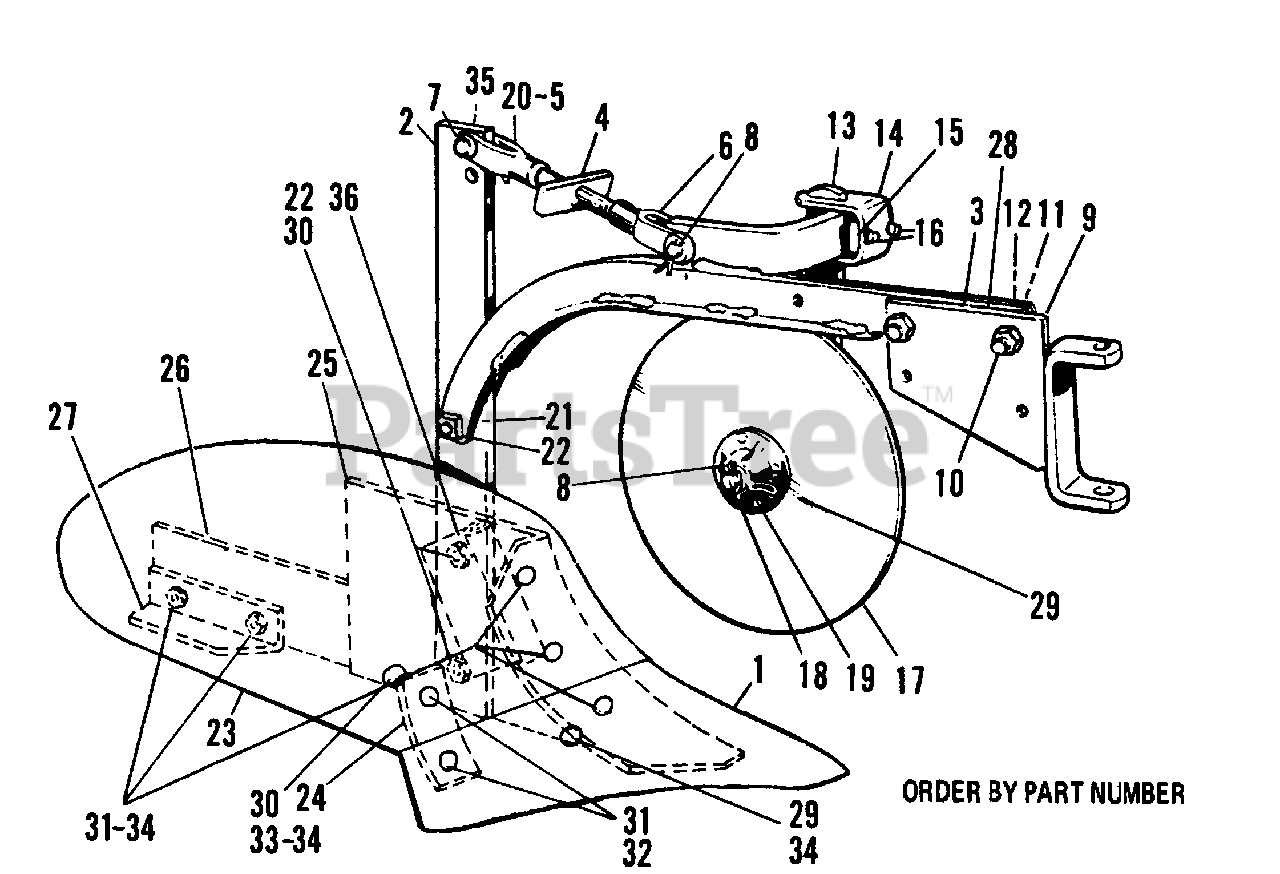

10" PLOW Parts Diagram

  • Title

1

Simplicity 112065

Share

$

$

Not available

2

Simplicity 112044

Standard

$

$

Not available

3

Simplicity 112077

Beam Assembly, Plow

$

$

Not available

4

Simplicity 112047

Yoke Rod Assembly

$

$

Not available

5

Simplicity 112050

Yoke, Left Hand

$

$

Not available

6

Simplicity 112051

Yoke, Right Hand

$

$

Not available

7

Simplicity 2112052

Pin, Yoke

$

$

Not available

8

Simplicity 2722006

Pin, Cotter, w/extended prong, 1/8" dia. x 1" lg.

$

$

Not available

9

Simplicity 112053

End Assembly, Flow Beam

$

$

Not available

10

Simplicity 2715036

Capscrew, Hex Hd., 3/8"-16 x 2-1/4" lg.

$

$

Not available

11

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

12

Simplicity 2717003

Nut, Full Hex, 3/8"-16 NC

$

$

Not available

13

Simplicity 112057

Standard, Coulter

$

$

Not available

14

Simplicity 8271023

Clamp

$

$

Not available

15

Simplicity 8201073

Nut, Special, 5/16" x 1" x 2-1/4" lg.

$

$

Not available

16

Simplicity 2713004

Set Screw, Cup Point, Sq. Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

17

Simplicity 112040

Coulter Assembly, w/bushing

$

$

Not available

18

Simplicity 112058

Spindle, Coulter

$

$

Not available

19

Simplicity 2860164SM

Washer

$4.49

$

In Stock, only 3 left!

0

20

Simplicity 2717018

Jam Nut, Hex, 5/8"-11 NC

$

$

Not available

21

Simplicity 2705046

Hex Capscrew, 1/2"-13 NC x 1-3/4" lg.

$

$

Not available

22

Simplicity 2717006

Nut, Full Hex, 1/2"-13 NC

$

$

Not available

23

Simplicity 112068

Moldboard

$

$

Not available

24

Simplicity 112069

Brace, Moldboard

$

$

Not available

25

Simplicity 112066

Saddle

$

$

Not available

26

Simplicity 112067

Landside

$

$

Not available

27

Simplicity 112070

Angle, Slip heel

$

$

Not available

28

Simplicity 112076

Spacer, Plow Beam

$

$

Not available

29

Simplicity 112032

Bushing, Coulter

$

$

Not available

30

Simplicity 704006

Plow Bolt

$3.99

$

In Stock, only 1 left!

0

31

Simplicity 704007

Plow Bolt

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 717025

Nut, Hex

$

$

Not available

33

Simplicity 2720004

Lockwasher, 1/2"

$

$

Not available

34

Simplicity 2717022

Nut, 7/16"-14

$

$

Not available

35

Simplicity 2176012SM

Safety Clip, Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 112083

Support Assembly

$

$

Not available
