990461 - Simplicity PTO Kit POWER TAKE-OFF Parts Diagram

PTO Kit

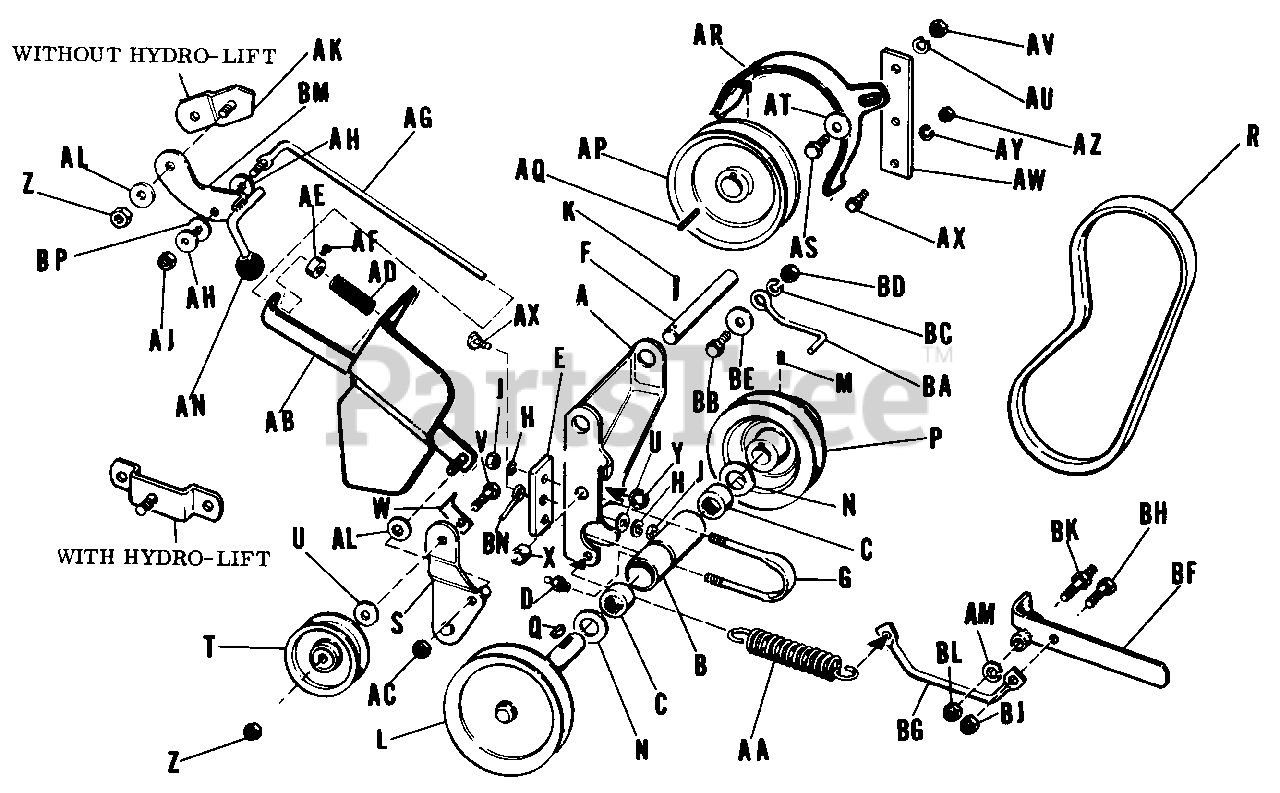

POWER TAKE-OFF Parts Diagram

  • Title

A

Simplicity 157285

P.T.O.-Bracket

$

$

Not available

B

Simplicity 2103171SM

Bearing Housing

$94.99

$

Usually ships in 2-12 days

0

C

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, Qty 8

0

D

Simplicity 2727001

Grease Fitting

$

$

Not available

E

Simplicity 157472

Support Plate

$

$

Not available

F

Simplicity 2154233

Pivot Rod, 5/8" Dia. x 6-13/16"

$

$

Not available

G

Simplicity 157270

"U" Bolt

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

K

Simplicity 2722007

Cotter Pin, 3/16" Dia. x 1-1/2"

$

$

Not available

L

Simplicity 2157266SM

Shaft Assembly, P.T.O.
(Superseded to 2157266ASM)

$113.99

$

Usually ships in 2-12 days

0

M

Simplicity 2713503

Set Screw, 5/16"-18 x 5/16"

$

$

Not available

N

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 7

0

P

Simplicity 2157116SM

P.T.O. Pulley

$104.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2725003

Woddruff Key #9-3/16" x 3/4"

$

$

Not available

R

Simplicity 2164146SM

"V" Belt

$23.99

$

Usually ships in 2-12 days

0

S

Simplicity 2157263

Idler Lever Assembly

$

$

Not available

T

Simplicity 2154534SM

Idler Pulley

$32.99

$

In Stock, only 2 left!

0

U

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

V

Simplicity 2705016

Hex. Cap Screw, 3/8"-16 x 1-1/4"

$

$

Not available

W

Simplicity 157423

Stop

$

$

Not available

X

Simplicity 157272

Spacer

$

$

Not available

Y

Simplicity 2157288

Retaining Ring

$

$

Not available

Z

Simplicity 2717510

Full Hex. Nut, 3/8"-16

$

$

Not available

AA

Simplicity 2157262SM

Tension Spring

$33.99

$

Usually ships in 2-12 days

0

AB

Simplicity 164153

Rod Guide Assembly

$

$

Not available

AC

Simplicity 2717510

Full Lock Hex. Nut, 3/8"-16

$

$

Not available

AD

Simplicity 1729277SM

Spring

$6.99

$

In Stock, only 1 left!

0

AE

Simplicity 1729276SM

Set Collar

$

$

Not available

AF

Simplicity 2713001

Set Screw, 1/4"-20 x 3/8"

$

$

Not available

AG

Simplicity 2164149

Clutch Rod Assembly

$

$

Not available

AH

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AJ

Simplicity 2717525

Full Lock Hex. Nut, 5/16"-18

$

$

Not available

AK

Simplicity 154362

Pivot Bar Assembly

$

$

Not available

AL

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AM

Simplicity 2720006

Lock Washer 7/16"

$

$

Not available

AN

Simplicity 2122005SM

Knob

$14.99

$

Usually ships in 2-12 days

0

AP

Simplicity 2157121SM

Pulley

$55.99

$

Usually ships in 2-12 days

0

AQ

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0

AR

Simplicity 164152

Belt Guard Assembly

$

$

Not available

AS

Simplicity 2705005

Hex. Cap Screw, 3/8"-16 x 1"

$

$

Not available

AT

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AU

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AV

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

AW

Simplicity 157050

Belt Guard Support

$

$

Not available

AX

Simplicity 2705007

Hex. Cap Screw, 5/16"-18 x 1"

$

$

Not available

AY

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AZ

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

BA

Simplicity 2161080SM

Belt Stop

$29.99

$

In Stock, only 1 left!

0

BB

Simplicity 2705007

Hex. Cap Screw. 5/16-18 x 1"

$

$

Not available

BC

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BD

Simplicity 2717001

Full Hex. Nut, 5/16-18

$

$

Not available

BE

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

BF

Simplicity 2164155SM

Handle Assembly

$102.99

$

Usually ships in 2-12 days

0

BG

Simplicity 2164047

Spring Tension Rod

$

$

Not available

BH

Simplicity 2705017

Hex. CapScrew, 5/16"-18 x 3/4"

$

$

Not available

BJ

Simplicity 2717511

Full Lock Hex. Nut, 5/16"-18

$

$

Not available

BK

Simplicity 2157273SM

Stud

$25.99

$

Usually ships in 2-12 days

0

BL

Simplicity 2717519

Full Lock Hex. Nut, 7/16"-14

$

$

Not available

BM

Simplicity 154356

Clutch Lever Assembly

$

$

Not available

BN

Simplicity 121044

Belt Guide

$

$

Not available

BP

Simplicity 2159134

Special Washer

$

$

Not available
