990455 - Simplicity 32" Heavy Duty Tiller Attachment TINE ASSEMBLY Parts Diagram

32" Heavy Duty Tiller Attachment

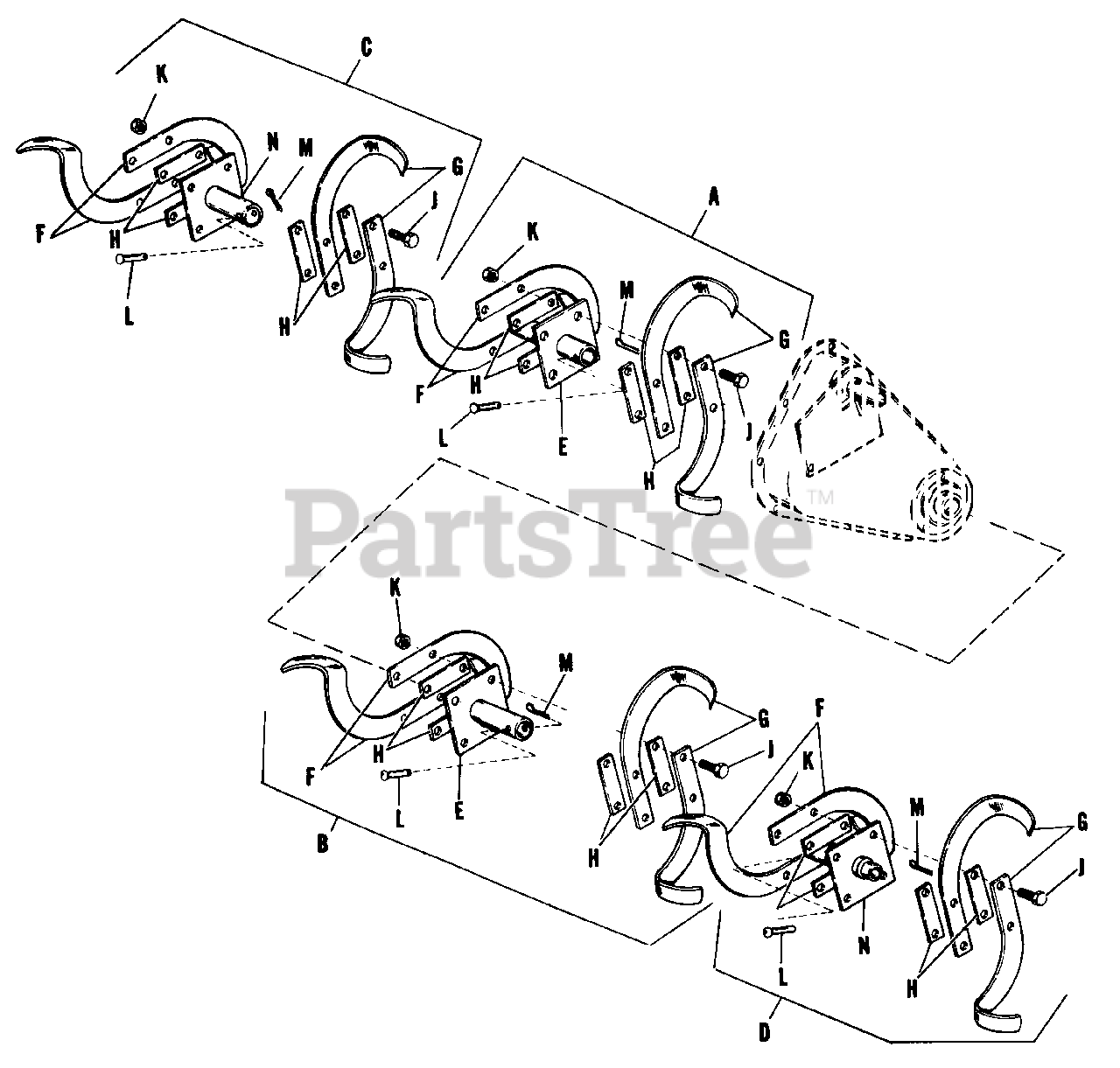

TINE ASSEMBLY Parts Diagram

  • Title
A

Simplicity 105159

Blade Assembly, Right Hand Inner Tine

$

$

Not available

B

Simplicity 105163

Blade Assembly, Left Hand Inner Tine

$

$

Not available

C

Simplicity 105164

Blade Assembly, Right Hand Outer Tine

$

$

Not available

D

Simplicity 105165

Blade Assembly, Left Hand Outer Tine

$

$

Not available

E

Simplicity 105248

Plate Assembly, Tine, Inner

$

$

Not available

F

Simplicity 1729272SM

Blade, Tine, Right Hand

$28.99

$

Usually ships in 2-12 days

0

G

Simplicity 1729271SM

Blade , Tine Left Hand

$

$

Not available

$

$

Not available

J

Simplicity 706014

Capscrew, Hex, 7/16"-20 NC x 1 3/4" lg

$3181.99

$

Usually ships in 2-12 days

0

K

Simplicity 2717512

Nut, Lock, Hex, Full, 7/16"-20 NC

$

$

Not available

L

Simplicity 2105249SM

Pin, Tine Shaft

$16.99

$

Usually ships in 2-12 days

0

M

Simplicity 2722009

Pin, Cotter, 1/8" diameter

$

$

Not available

N

Simplicity 105245

Plate Assembly, Tine, Outer

$

$

Not available
