990455 - Simplicity 32" Heavy Duty Tiller Attachment TILLER DRIVE Parts Diagram

32" Heavy Duty Tiller Attachment

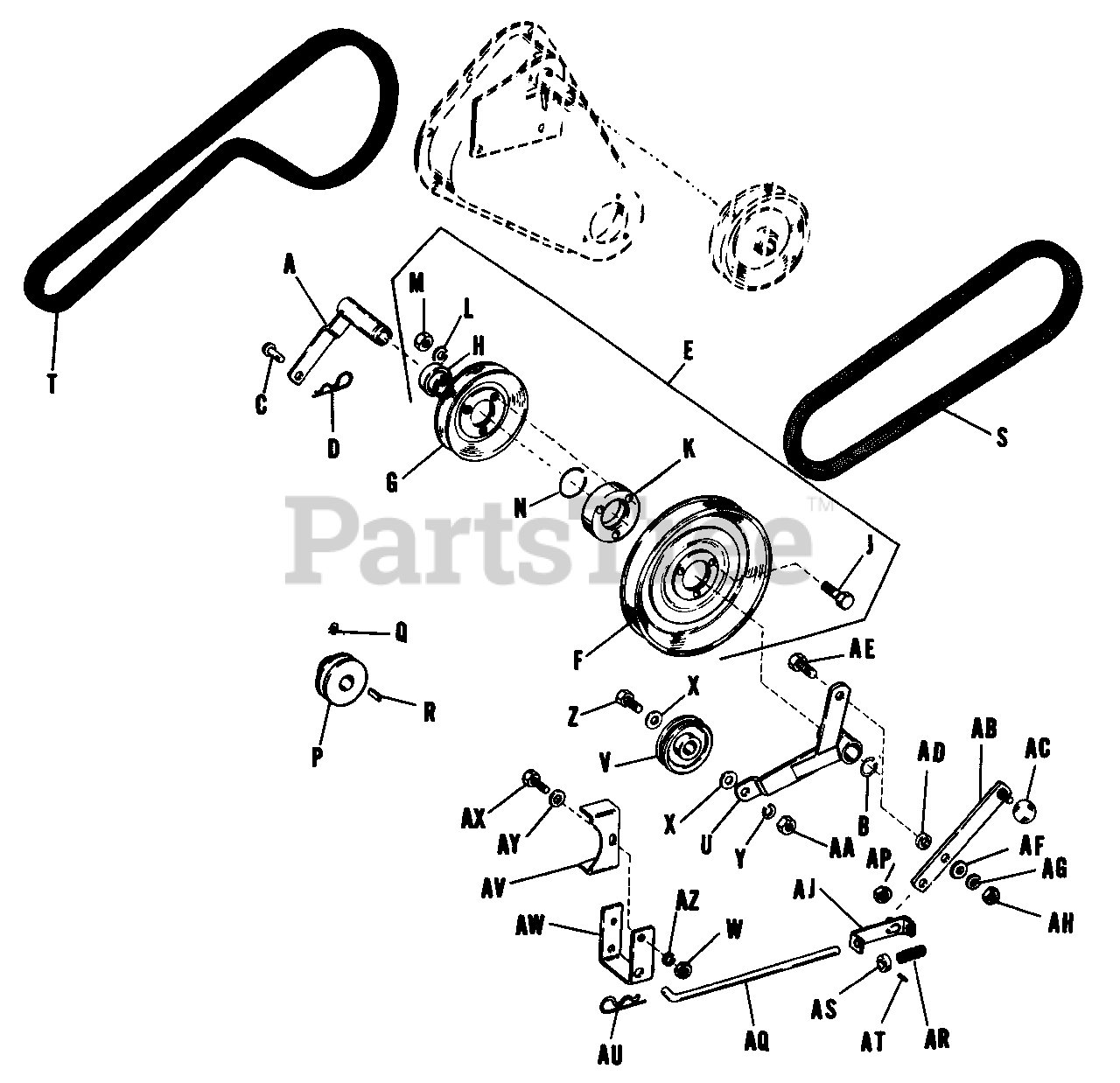

TILLER DRIVE Parts Diagram

  • Title

A

Simplicity 105166

Sleeve Assembly Pulley

$

$

Not available

B

Simplicity 105169

Ring, Snap

$

$

Not available

C

Simplicity 1708298SM

Pin

$

$

Not available

D

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

E

Simplicity 105170

Pulley Assembly

$

$

Not available

F

Simplicity 105171

Pulley, 10"

$

$

Not available

G

Simplicity 105172

Pulley, 5 1/2"

$

$

Not available

H

Simplicity 2105173

Bearing

$

$

Not available

J

Simplicity 2705023

Capscrew, Hex., 5/16"-18 NC x 13/4" lg.

$

$

Not available

K

Simplicity 105174

Ring

$

$

Not available

L

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

M

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

N

Simplicity 105175

Ring, Snap

$

$

Not available

P

Simplicity 105176

Pulley, Tiller Drive

$

$

Not available

Q

Simplicity 2713503

Screw, Set, Cup Point, Socket Head, 5/16"-18 NC x 5/16" lg.

$

$

Not available

R

Simplicity 2805850SM

Key

$

$

Not available

S

Simplicity 2154273SM

Belt,"V"

$56.99

$

Usually ships in 2-12 days

0

T

Simplicity 2105122SM

Belt,"V" (105280 BELT FOR 3012)

$47.99

$

Usually ships in 2-12 days

0

U

Simplicity 105177

Lever Assembly, Idler

$

$

Not available

V

Simplicity 105285

Pulley, Idler

$

$

Not available

W

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

X

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

Y

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

Z

Simplicity 2705016

Capscrew, Hex, 3/8"-16 NC x 1 1/4" lg.

$

$

Not available

AA

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

AB

Simplicity 105283

Lever Assembly, Clutch

$

$

Not available

AC

Simplicity 2122005SM

Knob

$14.99

$

Usually ships in 2-12 days

0

AD

Simplicity 1663752SM

Spacer

$5.99

$

In Stock, only 2 left!

0

AE

Simplicity 2705005

Capscrew Hex, 3/8"-16 NC x 1" lg.

$

$

Not available

AF

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AG

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AH

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

AJ

Simplicity 2158406

Guide Assembly

$

$

Not available

AK

Simplicity 2705031

Capscrew, Hex, 3/8"-16 NC x 7/8" lg.

$

$

Not available

AL

Simplicity 105184

Spacer

$

$

Not available

AM

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AN

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AP

Simplicity 2717511

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available

AQ

Simplicity 105281

Rod Short for 10 H.P.-105282 Long for 12 H.P.

$

$

Not available

AR

Simplicity 162065

Spring

$

$

Not available

AS

Simplicity 1729276SM

Collar, Set

$

$

Not available

AT

Simplicity 2713001

Screw, Set, Square Head, Cup Point, 1/4"-20 NC x 3/8" lg.

$

$

Not available

AU

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

AV

Simplicity 105186

Release, Belt

$

$

Not available

AW

Simplicity 105187

Bracket, Belt Release

$

$

Not available

AX

Simplicity 2705031

Capscrew, Hex, 3/8"-16 NC x 7/8" lg.

$

$

Not available

AY

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AZ

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available
