990452 - Simplicity Vacuum Collector COLLECTOR & BLOWER HOUSING Parts Diagram

Vacuum Collector

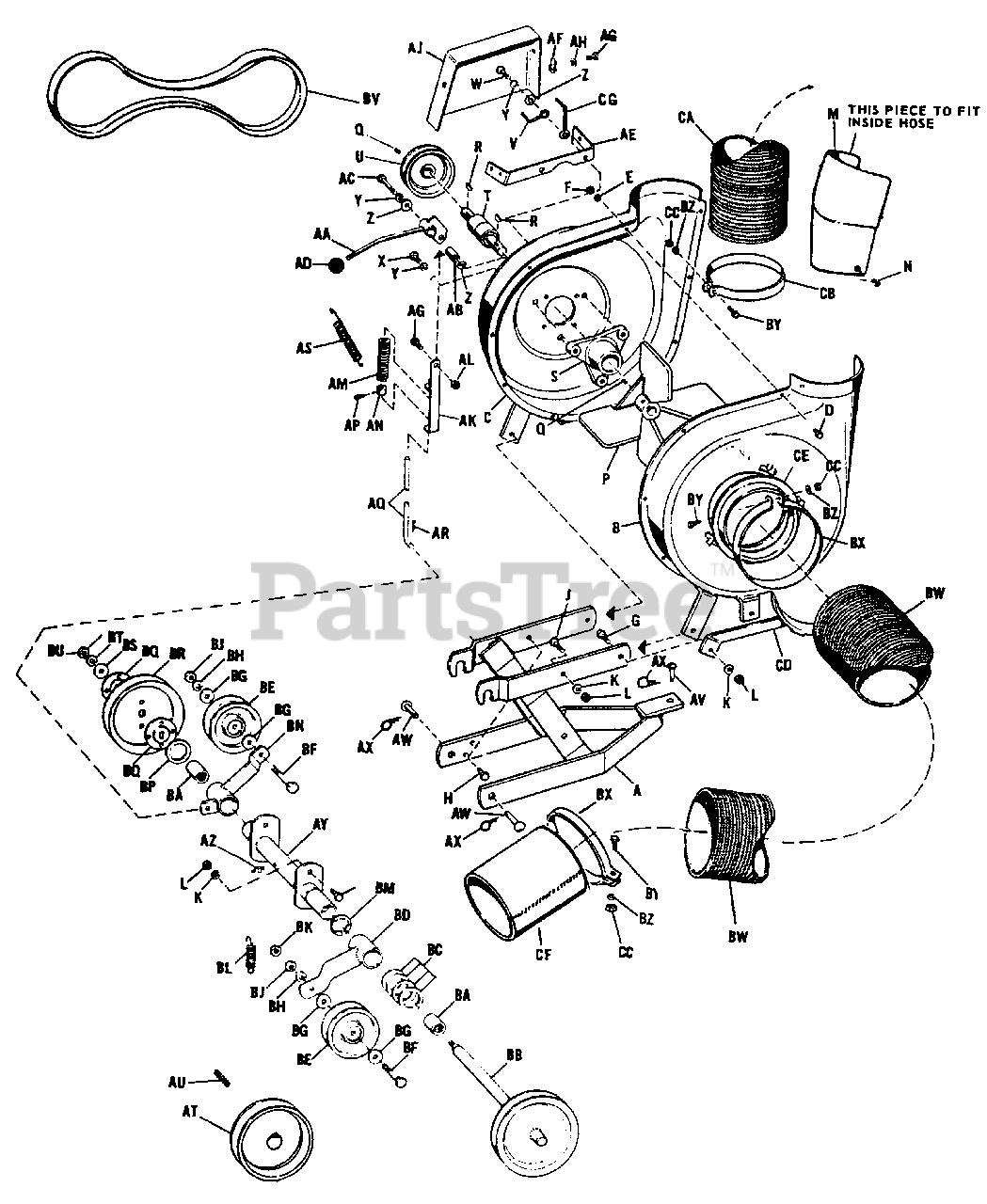

COLLECTOR & BLOWER HOUSING Parts Diagram

  • Title

A

Simplicity 123001

Blower Housing Support Assembly

$

$

Not available

B

Simplicity 2123126

Housing Assembly Inlet Half

$

$

Not available

C

Simplicity 2123012

Housing Assembly R.H. Half

$

$

Not available

D

Simplicity 2705002

Hex Capscrew 1/4-20 x 1/2" lg.

$

$

Not available

E

Simplicity 2720003

Lockwasher 1/4"

$

$

Not available

F

Simplicity 2717005

Hex Nut Full 1/4-20

$

$

Not available

G

Simplicity 2705005

Hex Cap Screw 3/8-16 x 1" lg.

$

$

Not available

H

Simplicity 2705016

Hex Cap Screw 3/8-16 x 1-1/4" lg.

$

$

Not available

J

Simplicity 2705009

Hex Cap Screw 3/8-16 x 1-1/2" lg.

$

$

Not available

K

Simplicity 2720002

Lockwasher 3/8"

$

$

Not available

L

Simplicity 2717003

Hex Nut Full 3/8-16

$

$

Not available

M

Simplicity 123107

Deflector

$

$

Not available

N

Simplicity 714014

Screw Self-Tapping #10 x 3/8" lg.

$

$

Not available

P

Simplicity 2123015ASM

Fan Assembly

$353.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2713006

Set Screw Sq. Hd. 5/16-18 x 1/2" lg.

$

$

Not available

R

Simplicity 2725504

Key Hi-Pro

$

$

Not available

S

Simplicity 2123087SM

Flange, Shaft and Bearing Assembly

$

$

Not available

T

Simplicity 2123087SM

Shaft and Bearing

$

$

Not available

U

Simplicity 2106663SM

Pulley

$56.99

$

Usually ships in 2-12 days

0

V

Simplicity 106346

Belt Stop

$

$

Not available

W

Simplicity 2705009

Hex Capscrew 3/8-16 x 1-1/2" lg.

$

$

Not available

X

Simplicity 2705004

Hex Capscrew 3/8-16 x 3/4" lg.

$

$

Not available

Y

Simplicity 2720002

Lockwasher 3/8"

$

$

Not available

Z

Simplicity 2719002

Washer Plain

$

$

Not available

AA

Simplicity 123082

Clutch Lever Assembly

$

$

Not available

AB

Simplicity 2123027SM

Spacer, Clutch Lever

$10.99

$

Usually ships in 2-12 days

0

AC

Simplicity 2705006

Hex Capscrew 3/8-16 x 2" lg.

$

$

Not available

AD

Simplicity 2106567

Knob

$

$

Not available

AE

Simplicity 164205

Bracket, Belt Guard

$

$

Not available

AF

Simplicity 2718030

Nut, Retainer

$

$

Not available

AG

Simplicity 2705012

Hex Capscrew 5/16-18 x 5/8" lg.

$

$

Not available

AH

Simplicity 2720001

Lockwasher 5/16

$

$

Not available

AJ

Simplicity 2164206

Belt Guard

$

$

Not available

AK

Simplicity 123076

Rod Guide Assembly

$

$

Not available

AL

Simplicity 2717511

Hex Nut Full 5/16-18

$

$

Not available

AM

Simplicity 1729277SM

Spring

$6.99

$

In Stock, only 1 left!

0

AN

Simplicity 1729276SM

Set Collar

$

$

Not available

AP

Simplicity 2713001

Set Screw Sq. Hd. 1/4-20 x 3/8" lg.

$

$

Not available

AQ

Simplicity 164203

Clutch Rod-Blower

$

$

Not available

AR

Simplicity 2722001

Pin 3/32 x 3/4" lg.

$

$

Not available

AS

Simplicity 2121037SM

Spring

$

$

Not available

AT

Simplicity 2164202SM

Pulley

$61.99

$

Usually ships in 2-12 days

0

AU

Simplicity 2805850SM

Key

$

$

Not available

AV

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

AW

Simplicity 2155037SM

Pin

$12.99

$

In Stock, only 1 left!

0

AX

Simplicity 1918196SM

Spring Cup
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

AY

Simplicity 164192

Bearing Housing Assembly

$

$

Not available

AZ

Simplicity 2727002

Grease Fitting

$

$

Not available

BA

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, Qty 8

0

BB

Simplicity 164200

Traverse Shaft Assembly

$

$

Not available

BC

Simplicity 1960061SM

Washer

$7.99

$

Usually ships in 2-12 days

0

BD

Simplicity 164199

Tension Arm Assembly

$

$

Not available

BE

Simplicity 2108386SM

Idler Pulley

$

$

Not available

BF

Simplicity 2705006

Hex Capscrew 3/8-16 x 2" lg.

$

$

Not available

BG

Simplicity 2719001

Plain Washer 3/8"

$

$

Not available

BH

Simplicity 2720002

Lockwasher 3/8"

$

$

Not available

BJ

Simplicity 2717003

Hex Nut Full 3/8-16

$

$

Not available

BK

Simplicity 2717510

Hex Nut Full Lock 3/8-16

$

$

Not available

BL

Simplicity 2159159SM

Spring Tension

$37.99

$

In Stock, only 1 left!

0

BM

Simplicity 2164204

Retaining Ring

$

$

Not available

BN

Simplicity 164195

Idler Arm Assembly

$

$

Not available

BP

Simplicity 1960061SM

Washer

$7.99

$

Usually ships in 2-12 days

0

BQ

Simplicity 2158196SM

Special Washer

$5.49

$

Usually ships in 2-12 days

0

BR

Simplicity 158195

Pulley

$

$

Not available

BS

Simplicity 2719003

Washer Plain

$

$

Not available

BT

Simplicity 2720006

Lockwasher

$

$

Not available

BU

Simplicity 2717022

Hex Nut Full 7/16-14

$

$

Not available

BV

Simplicity 2161098SM

"V" Belt-P.T.O.

$

$

Not available

BW

Simplicity 123064

Hose Intake (7" Dia.)

$

$

Not available

BX

Simplicity 123065

Hose Clamp

$

$

Not available

BY

Simplicity 715069

Machine Screw Rd. Hd. 1/4-20 x 3" lg.
(Superseded to 715327)

$122.99

$

Usually ships in 2-12 days

0

BZ

Simplicity 2720003

Lockwasher 1/4

$

$

Not available

CA

Simplicity 2123066

Hose Exhaust (6" Dia.)

$

$

Not available

CB

Simplicity 2123067

Hose Clamp

$

$

Not available

CC

Simplicity 2717005

Hex Nut Full 1/4-20

$

$

Not available

CD

Simplicity 123068

Hose Support Assembly

$

$

Not available

CE

Simplicity 2123111SM

Flange

$

$

Not available

CF

Simplicity 123117

Hose Extension

$

$

Not available

CG

Simplicity 1630-65

Belt Stop

$

$

Not available
