990443 - Simplicity Vacuum Collector COLLECTOR & BLOWER HOUSING Parts Diagram

Vacuum Collector

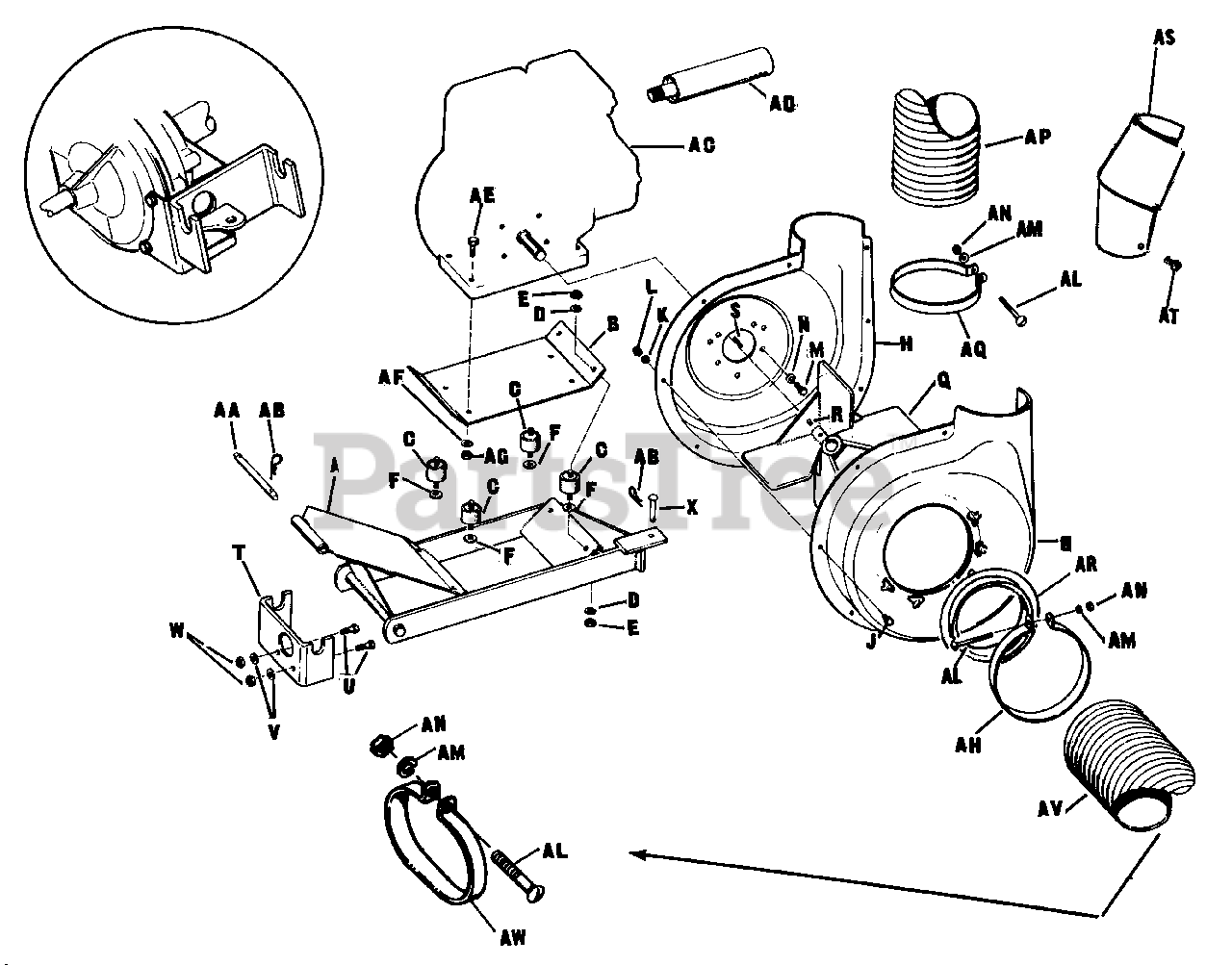

COLLECTOR & BLOWER HOUSING Parts Diagram

  • Title

A

Simplicity 123088

Frame Assembly

$

$

Not available

B

Simplicity 123095

Engine Plate

$

$

Not available

C

Simplicity 2157094SM

Connector, Cushion

$

$

Not available

D

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

E

Simplicity 2717001

Full Hex Nut 5/16"-18NC

$

$

Not available

F

Simplicity 2719002

Plain Washer 5/16"

$

$

Not available

G

Simplicity 2177268

Housing, Inlet Half

$

$

Not available

H

Simplicity 2123012

Housing Half-Blower, R.H.

$

$

Not available

J

Simplicity 2705002

Hex Cap Screw 1/4"-20NC x 1/2"

$

$

Not available

K

Simplicity 2720003

Lock Washer 1/4"

$

$

Not available

L

Simplicity 2717005

full Hex Nut 1/4"-20NC

$

$

Not available

M

Simplicity 706016

Hex Cap Screw 5/16"-24 NF x 5/8"

$2061.99

$

Usually ships in 2-12 days

0

N

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

Q

Simplicity 2123015ASM

Fan Assembly

$353.99

$

Usually ships in 2-12 days

0

R

Simplicity 2713006

Set Screw 5/16"-18 x 1/2"

$

$

Not available

S

Simplicity 1729279SM

Key
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

T

Simplicity 123096

Hitch

$

$

Not available

U

Simplicity 2705009

Hex Cap Screw 3/8"-16 x 1-1/2"

$

$

Not available

V

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

W

Simplicity 2717003

Full Hex Nut 3/8"-16NC

$

$

Not available

X

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

AA

Simplicity 156268

Counterweight Pin

$

$

Not available

AB

Simplicity 1918196SM

Clip Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

AC

ENGINE, Briggs & Stratton, Model 100212, Type 0279-01

$

$

Not available

AD

Simplicity 123104

Muffler

$

$

Not available

AE

Simplicity 2705018

Hex Cap Screw 5/16"-18 x 1-1/2"

$

$

Not available

AF

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

AG

Simplicity 2717001

Full Hex Nut 5/16"-18NC

$

$

Not available

AH

Simplicity 123065

Hose Clamp

$

$

Not available

AL

Simplicity 715069

Hd. Rd. Mach. Screw 1/4"-20 x 3"
(Superseded to 715327)

$122.99

$

Usually ships in 2-12 days

0

AM

Simplicity 2720003

Lock Washer 1/4"

$

$

Not available

AN

Simplicity 2717005

Full Hex Nut 1/4"-20NC

$

$

Not available

AP

Simplicity 2123066

Exhause Hose 6" Diameter

$

$

Not available

AQ

Simplicity 2123067

Hose Clamp

$

$

Not available

AR

Simplicity 2123111SM

Flange-Hose

$

$

Not available

AS

Simplicity 123107

Deflector

$

$

Not available

AT

Simplicity 714014

Self-Tapping Screw #lO x 3/8" lg.

$

$

Not available

AV

Simplicity 123064

Intake Hose 7" Diameter

$

$

Not available

AW

Simplicity 123105

Hose Clamp

$

$

Not available
