990430 - Simplicity Sno-Away 26" Snow Thrower, 7hp Handles & Controls Group Parts Diagram

Sno-Away 26" Snow Thrower, 7hp

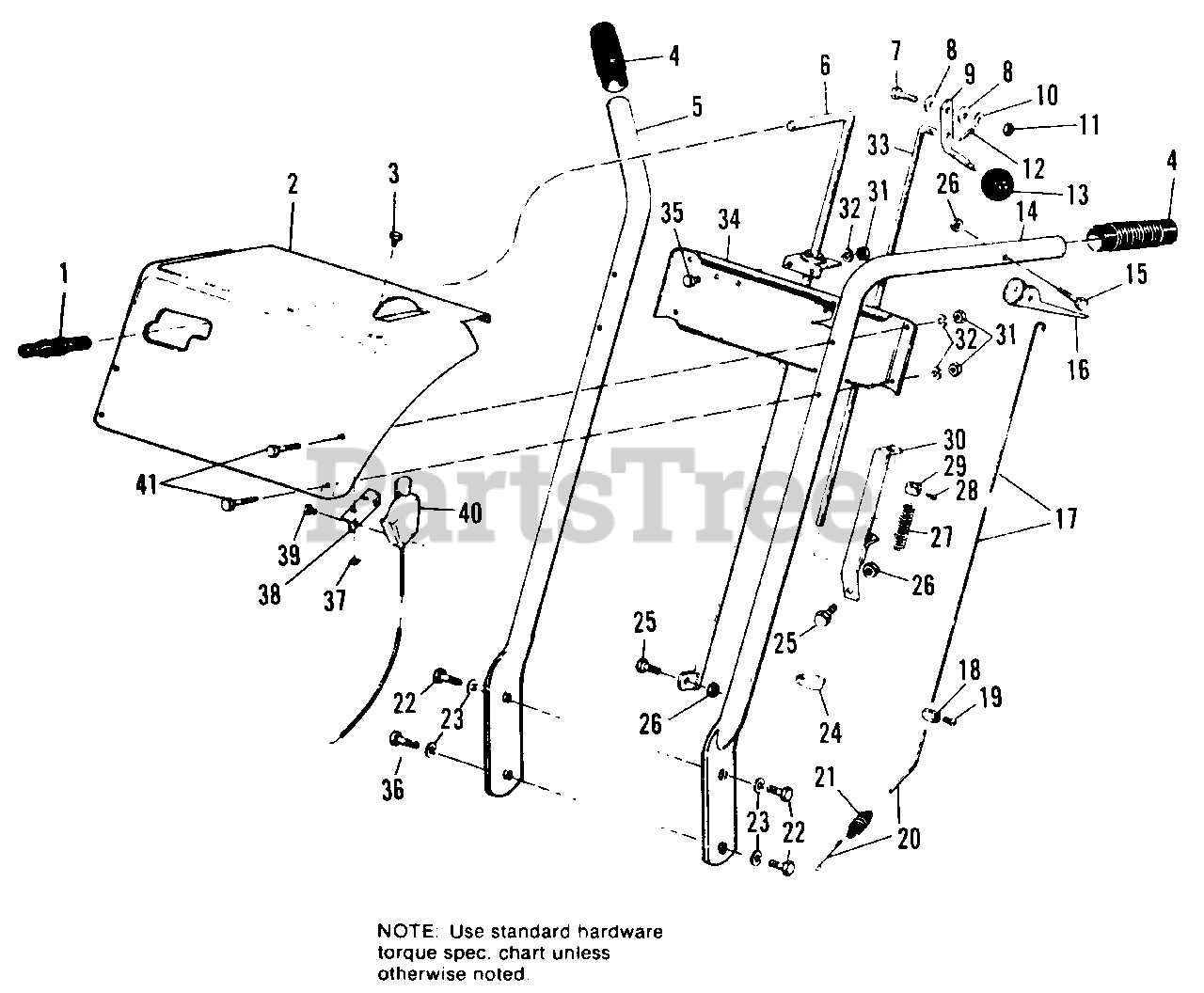

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 176965

GRIP, Handle

$

$

Not available

2

Simplicity 161049

HOUSING ASSY., Control (990372 & 990430 Only)

$

$

Not available

2

Simplicity 1611-73

HOUSING ASSY., Control (990560 Only)

$

$

Not available

3

Simplicity 2822122

SCREW, Self Tapping, #10 x 1/2 (990372 & 990430 Only)

$

$

Not available

3

Simplicity 2823188

SCREW, Self Tapping, 1/4 x 20 x 1/2 (990560 Only)

$

$

Not available

4

Simplicity 2106558

GRIP

$

$

Not available

5

Simplicity 161138

HANDLE, R.H. (990430 & 990560 Only)

$

$

Not available

5

Simplicity 161050

HANDLE, R.H. (990372 Only)

$

$

Not available

6

Simplicity 161035

ROD ASSY., Shift

$

$

Not available

7

Simplicity 2819319

CAPSCREW, Hex, 5/16-18 x 7/8

$

$

Not available

8

Simplicity 2159134

WASHER, Nylon

$

$

Not available

9

Simplicity 1610-85

HANDLE, Clutch

$

$

Not available

10

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

11

Simplicity 2824433

LOCKNUT, Hex, W/Nylon Insert, 5/16-18

$

$

Not available

12

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

13

Simplicity 2122005SM

KNOB, Ball

$14.99

$

Usually ships in 2-12 days

0

14

Simplicity 161139

HANDLE, L.H. (990430 & 990560 Only)

$

$

Not available

14

Simplicity 161051

HANDLE, L.H. (990372 Only)

$

$

Not available

15

Simplicity 2819316

CAPSCREW, Hex, 1/4-20 x 1-3/4

$

$

Not available

16

Simplicity 1180-56

GRIP, Clutch

$

$

Not available

17

Simplicity 1610-90

EXTENSION, Spring

$

$

Not available

18

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

19

Simplicity 916079

SCREW, Rd. Hd., #10-24 x 3/8

$

$

Not available

20

Simplicity 1610-91

EXTENSION, Wire

$

$

Not available

21

Simplicity 1610-93

SPRING

$

$

Not available

22

Simplicity 2823325

CAPSCREW, Hex, 5/16-16 x 7/8 (990430 & 990560 Only)

$

$

Not available

22

Simplicity 2819357

CAPSCREW, Hex, 3/8-16 x 7/8 (990372 Only)

$

$

Not available

23

Simplicity 1917356SM

LOCKWASHER, 5/16 (990430 & 990560 Only)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1916965SM

LOCKWASHER, 3/8 (990372 Only)
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

24

Simplicity 80611-08

CLIP, Cable

$

$

Not available

25

Simplicity 2821960

CAPSCREW, Hex, 1/4-20 x 1

$

$

Not available

26

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

27

Simplicity 1729277SM

SPRING

$6.99

$

In Stock, only 1 left!

0

28

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

29

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

30

Simplicity 1610-41

GUIDE ASSY., Rod

$

$

Not available

31

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

33

Simplicity 1610-52

ROD, Clutch

$

$

Not available

34

Simplicity 161084

COVER, Handle

$

$

Not available

35

Simplicity 2808295

CAPSCREW, Hex, 1/4-20 x 1/2

$

$

Not available

36

Simplicity 2821221

CAPSCREW, Hex, 5/16-18 x 1-1/2 (990430 & 990560 Only)

$

$

Not available

37

Simplicity 928700

NUT, Speed

$

$

Not available

38

Simplicity 106524

SUPPORT, Throttle

$

$

Not available

39

Simplicity 923734

SCREW, Self Tapping, #10-24 x 1/2

$

$

Not available

40

Simplicity 161089

CONTROL ASSY., Throttle (990372 & 990430 Only)

$

$

Not available

40

Simplicity 1664589SM

CONTROL ASSY., Throttle (990560 Only)

$56.99

$

Usually ships in 2-12 days

0

41

Simplicity 2818240

CAPSCREW, Hex Hd., 1/4-20 x 1-1/2

$

$

Not available
