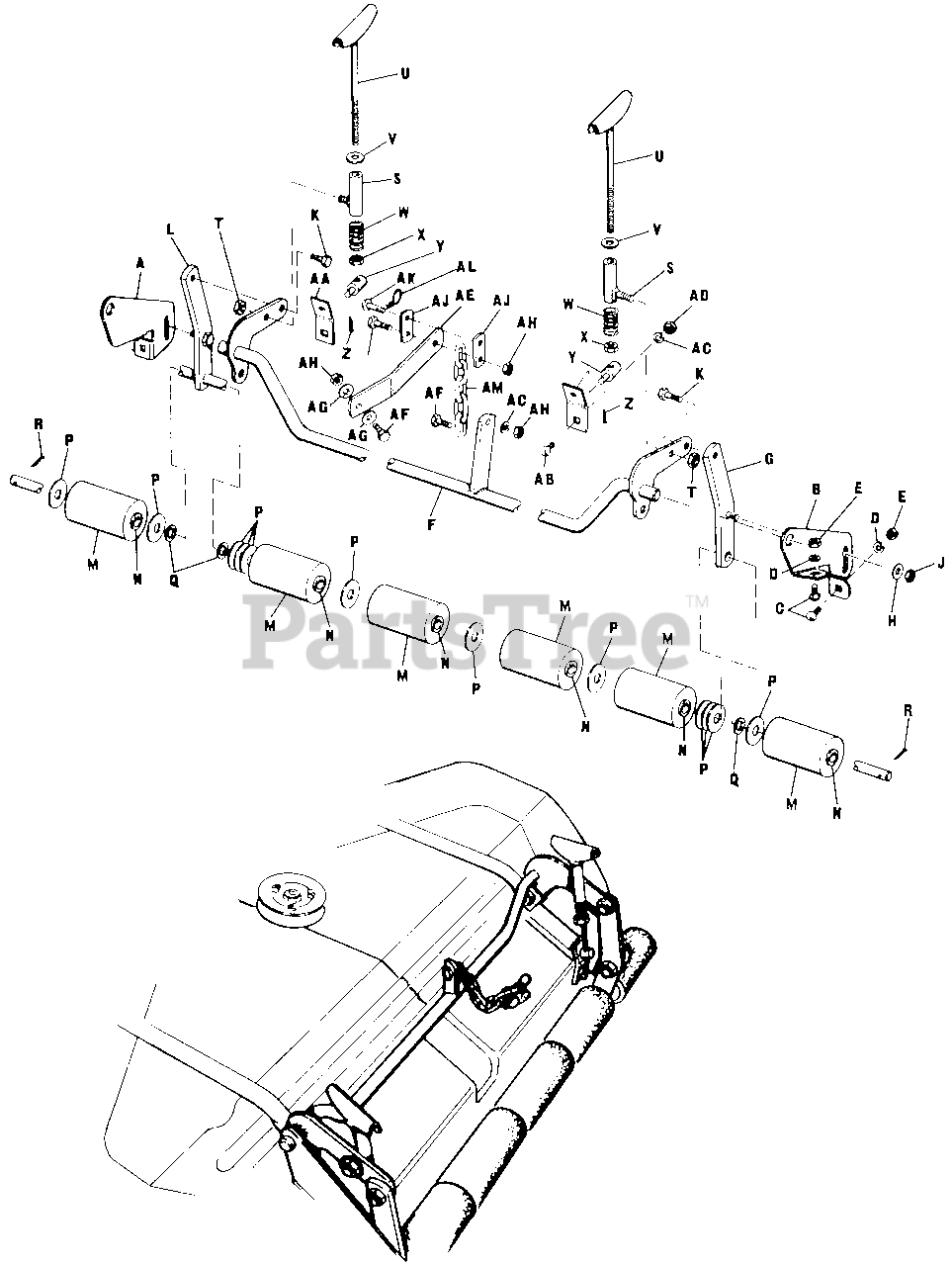

990414 - Simplicity 48" Mower Deck ROLLER ASSEMBLY Parts Diagram

48" Mower Deck

ROLLER ASSEMBLY Parts Diagram

  • Title

A

Simplicity 2108461

R.H. Roller Bracket

$

$

Not available

B

Simplicity 2108462

L.H. Roller Bracket

$

$

Not available

C

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

D

Simplicity 2720002

Lock Washer

$

$

Not available

E

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

F

Simplicity 108463

Rocker Assembly Arm

$

$

Not available

G

Simplicity 108466

Roller Bar Assembly L.H.

$

$

Not available

H

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

J

Simplicity 2717510

Full Hex. Nut, 3/8"-16

$

$

Not available

K

Simplicity 2705005

Hex. Cap Screw, 3/8"-16 x 1"

$

$

Not available

L

Simplicity 2108464

Roller Shaft Assembly

$

$

Not available

M

Simplicity 2108432SM

Roller W/Bushing

$36.99

$

Usually ships in 2-12 days

0

N

Simplicity 2108419

Bushing

$

$

Not available

P

Simplicity 2116001

Washer

$

$

Not available

Q

Simplicity 2860164SM

Washer

$4.49

$

In Stock, only 3 left!

0

R

Simplicity 2722011

Cotter Pin, 3/16"-1"

$

$

Not available

S

Simplicity 108467

Socket Crank Assembly

$

$

Not available

T

Simplicity 2717510

Full Hex. Nut, 3/16"-16

$

$

Not available

U

Simplicity 2108469

Adjusting Screw Assembly

$

$

Not available

V

Simplicity 2719001

Plain Washer

$

$

Not available

W

Simplicity 2108360SM

Adjusting Screw Spring

$5.49

$

In Stock, only 1 left!

0

X

Simplicity 2717013

Hex. Jam Nut, 3/8"-16

$

$

Not available

Y

Simplicity 108172

Pivot

$

$

Not available

Z

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

AA

Simplicity 108444

Lift Link

$

$

Not available

AB

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

AC

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AD

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

AE

Simplicity 108198

Mower Lift Lever

$

$

Not available

AF

Simplicity 2705005

Hex. Cap Screw, 3/8"-16 x 1"

$

$

Not available

AG

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AH

Simplicity 2717510

Full Hex. Nut, 3/8"-16

$

$

Not available

AJ

Simplicity 108199

Mower Lift Link

$

$

Not available

AK

Simplicity 1708298SM

Lock Pin

$

$

Not available

AL

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

AM

Simplicity 101084

Chain

$

$

Not available
