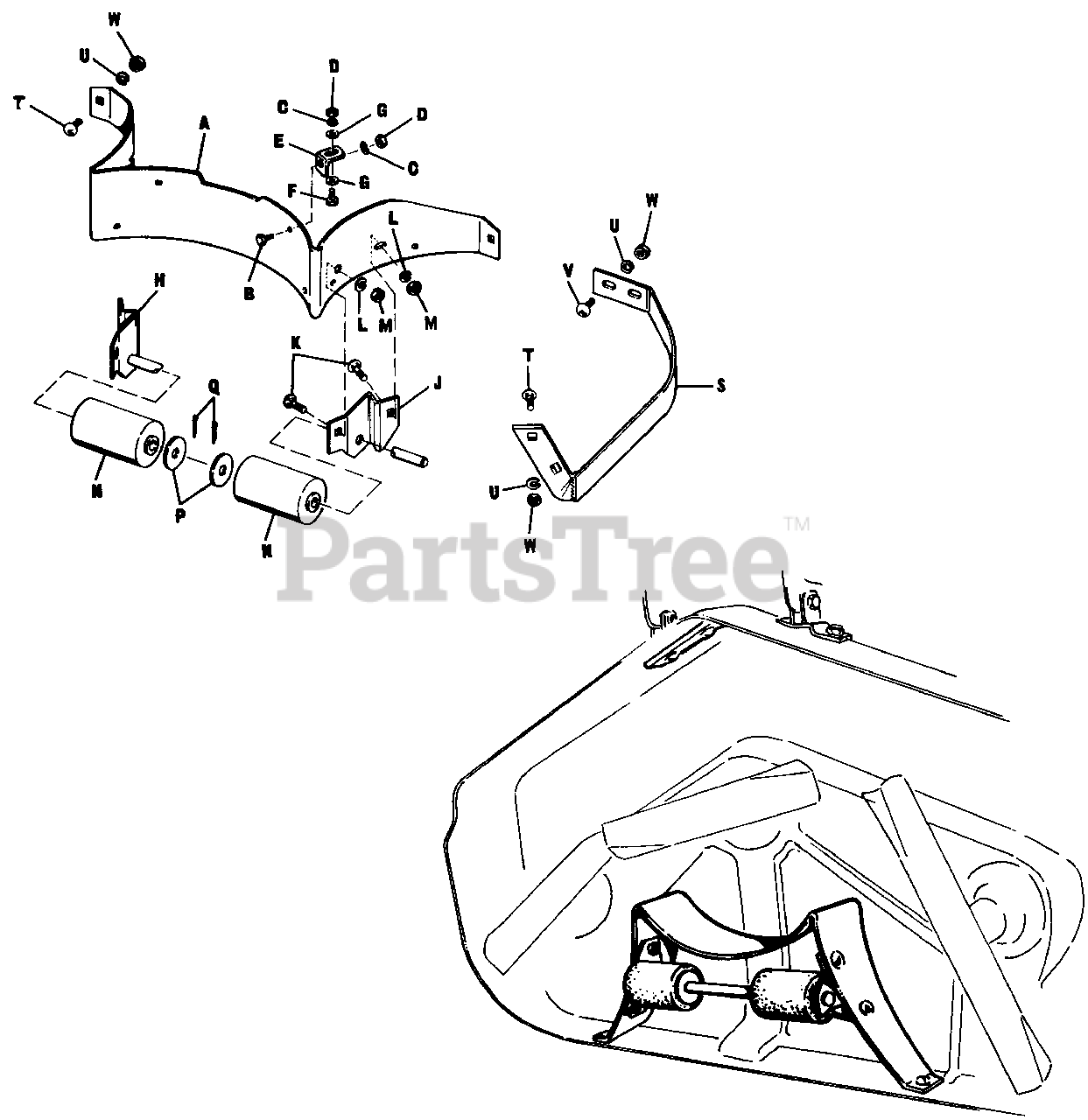

990414 - Simplicity 48" Mower Deck MOWER UNDERSIDE Parts Diagram

48" Mower Deck

MOWER UNDERSIDE Parts Diagram

  • Title

A

Simplicity 2108453

Baffle

$

$

Not available

B

Simplicity 2714012

Self Tap Hex. Screw, 1/4"-20 x 7/8

$

$

Not available

C

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

D

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

E

Simplicity 2108186SM

Baffle Clip

$12.99

$

In Stock, only 1 left!

0

F

Simplicity 2715018

Hex. Cap Screw, 1/4"-20 x 5/8"

$

$

Not available

G

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

H

Simplicity 2108454ASM

Bracket & Shaft Assembly

$79.99

$

In Stock, only 2 left!

0

J

Simplicity 2108224ASM

L.H. Roller Bracket

$59.99

$

In Stock, only 2 left!

0

K

Simplicity 2702015

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

L

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

M

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

N

Simplicity 1668513SM

Roller Assembly w/Bushing

$10.99

$

In Stock, Qty 20+

0

P

Simplicity 2116001

Washer

$

$

Not available

Q

Simplicity 2722011

Cotter Pin, 5/16"-1"

$

$

Not available

R

Simplicity 2108419

Bushing

$

$

Not available

S

Simplicity 108452

Housing Assembly Guard

$

$

Not available

T

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

U

Simplicity 2720002

Lock Washer

$

$

Not available

V

Simplicity 2702002

Carriage Bolt 3/8"-16 x 1"

$

$

Not available

W

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available
