990407 - Simplicity 42" Mower Deck DECK ASSEMBLY Parts Diagram

42" Mower Deck

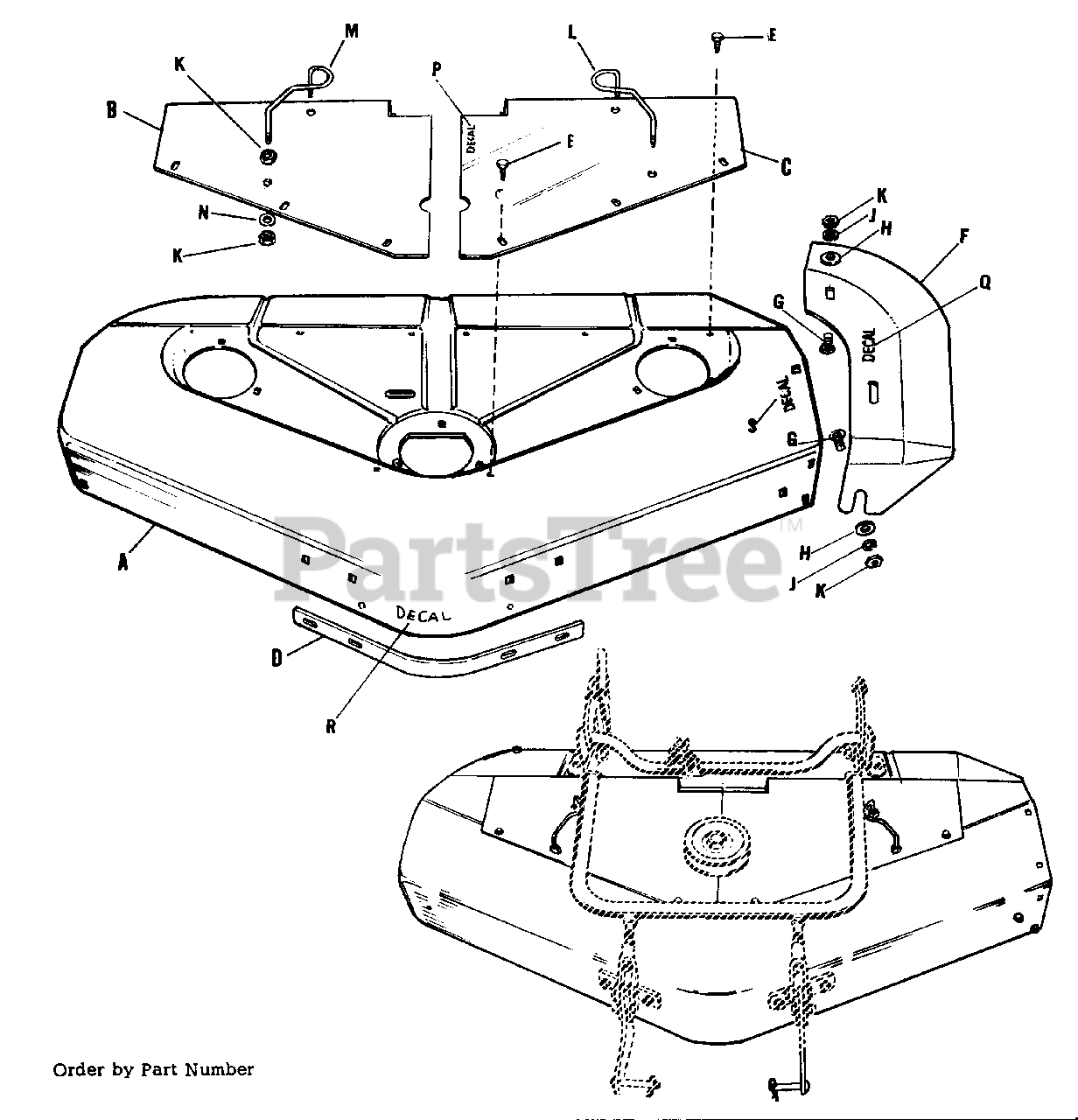

DECK ASSEMBLY Parts Diagram

  • Title

A

Simplicity 2108354

Mower Housing

$

$

Not available

B

Simplicity 108420

Cover, R.H.

$

$

Not available

C

Simplicity 108421

Cover, L.H.

$

$

Not available

D

Simplicity 2108366SM

Bar, Reinforcing
(Superseded to 2108366ASM)

$25.99

$

Usually ships in 2-12 days

0

E

Simplicity 2715067

Screw, Taptite, 1/4-20 x 3/8" lg.

$

$

Not available

F

Simplicity 2108525

Deflector

$

$

Not available

G

Simplicity 2703004

Bolt, 3/8-16 x 3/4 lg.

$

$

Not available

H

Simplicity 1924356SM

Spacer
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

J

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

K

Simplicity 2717003

Hex Nut, Full, 3/8-16

$

$

Not available

L

Simplicity 157247

Guard, L.H.

$

$

Not available

M

Simplicity 157246

Guard, R.H.

$

$

Not available

N

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

P

Simplicity 108102

Decal

$

$

Not available

Q

Simplicity 108031

Decal

$

$

Not available

R

Simplicity 106719

Decal

$

$

Not available

S

Simplicity 2108507

Decal

$

$

Not available
