9904-0 - Generac EXL 10,000 Watt Portable Generator Generator (10/95) Parts Diagram

EXL 10,000 Watt Portable Generator

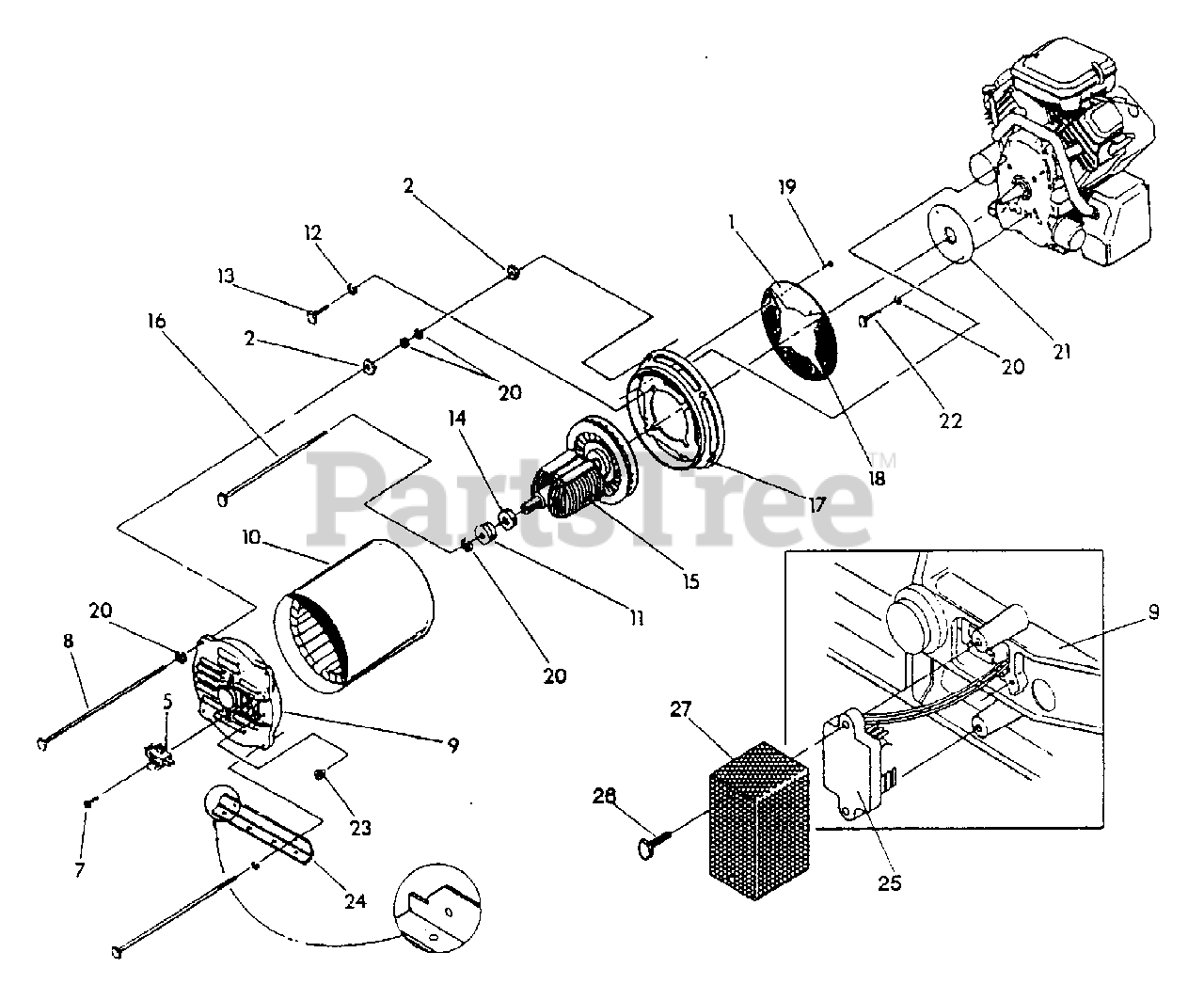

Generator (10/95) Parts Diagram

  • Title
1

$

$

Not available

2

Briggs & Stratton 24114

5/16"-24 Hex Nut

$

$

Not available

5

Briggs & Stratton 66386

Brush Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 66849

M5-0.8 x 16mm Taptite Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 77324

5/16"-24 x 12-1/4" Hex Head Capscrew

$

$

Not available

9

Briggs & Stratton 49410A

Rear Bearing Carrier
(Superseded to 49410AGS)

$

$

Not available

10

Briggs & Stratton 92382

Stator Assembly
(Superseded to 92382GS)

$651.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 50190

5/16" Flat Washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 22237

3/8" Lock Washer

$

$

Not available

13

Briggs & Stratton 23152

3/8"-16 x 3/4 Hex Head Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 92381

Rotor Assembly
(Superseded to 92381GS)

$

$

Not available

16

Briggs & Stratton 53365

5/16"-24 x 10-3/4" Hex Head Capscrew
(Superseded to 53365GS)

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 78806

Adapter Casting
(Superseded to BB2700GS)

$182.99

$

Usually ships in 2-12 days

0

$

$

Not available

19

Briggs & Stratton 46852

#10-32 x 1/4" Screw

$

$

Not available

20

Briggs & Stratton 22129

5/16" Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

$

$

Not available

22

Briggs & Stratton 22336

5/16"-24 x 3/4 Hex Head Capscrew

$

$

Not available

23

Briggs & Stratton 38057

Rubber Grommet
(Superseded to 38057GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 77303

Alternator Support

$

$

Currently unavailable

25

Briggs & Stratton 92769

Power Regulator
(Superseded to 92769GS)

$

$

Not available

26

Briggs & Stratton 66849A

M5-0.8 x 20mm Screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 96423

Finger Guard Screen

$

$

Not available
