990398 - Simplicity Cultivator Attachment CULTIVATOR - Diagram 2 Parts Diagram

Cultivator Attachment

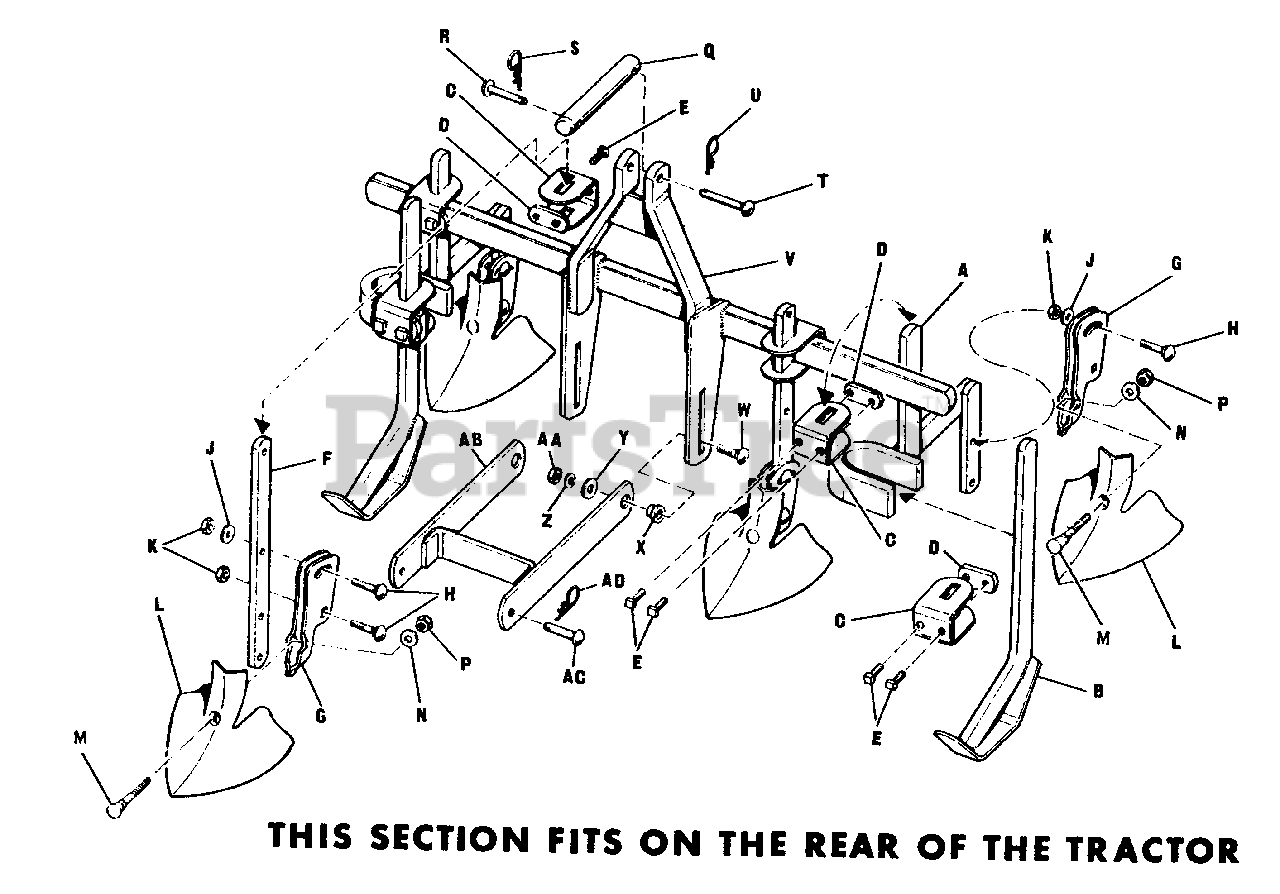

CULTIVATOR - Diagram 2 Parts Diagram

  • Title

A

Simplicity 117036

Standard Tool Assembly

$

$

Not available

B

Simplicity 117041

Shoe Weld Assembly

$

$

Not available

C

Simplicity 8271023

Clamp Shank, 3/16" x 2" x 8"

$

$

Not available

D

Simplicity 8201073

Special Nut, 5/16" x 1" x 2-1/2"

$

$

Not available

E

Simplicity 2713004

Set Screw, 3/8"-16 x 1"

$

$

Not available

F

Simplicity 8272013

Standard Tool, 7/16" x 1-1/4" x 14-1/8"

$

$

Not available

G

Simplicity 8271503

Tool Holder Assembly

$

$

Not available

H

Simplicity 2703002

Carriage Bolt, 3/8"-16 x 1-1/4"

$

$

Not available

J

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

K

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

L

Simplicity 117044

Universal Sweep 3/16" x 8"

$

$

Not available

M

Simplicity 704011

Plow Bolt, 7/16"-14 x 2"

$4.49

$

In Stock, Qty 11

0

N

Simplicity 2719003

Plain Washer. 7/16"

$

$

Not available

P

Simplicity 2717022

Full Hex. Nut 7/16"-14

$

$

Not available

Q

Simplicity 117015

Attaching Rod

$

$

Not available

R

Simplicity 2118053SM

Pin, 3/8" x 2"
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

S

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

T

Simplicity 2105249SM

Pin, 3/8" x 2-3/8"

$16.99

$

Usually ships in 2-12 days

0

U

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

V

Simplicity 117016

Rear Tool Bar Assembly

$

$

Not available

W

Simplicity 702019

Carriage Bolt, 7/16"-14 x 1-1/2"

$52.99

$

Usually ships in 2-12 days

0

X

Simplicity 117022

Spacer

$

$

Not available

Y

Simplicity 2719001

Washer, 3/8"

$

$

Not available

Z

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

AA

Simplicity 2717022

Full Hex. Nut, 7/16"-14

$

$

Not available

AB

Simplicity 117023

Arm Assembly

$

$

Not available

AC

Simplicity 2155037SM

Rd. Hd. Pin, 7/l6" x 1-3/4"

$12.99

$

In Stock, only 1 left!

0

AD

Simplicity 1918196SM

Clip Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0
