990392 - Simplicity 32" Heavy Duty Tiller Attachment HOUSING GROUP Parts Diagram

32" Heavy Duty Tiller Attachment

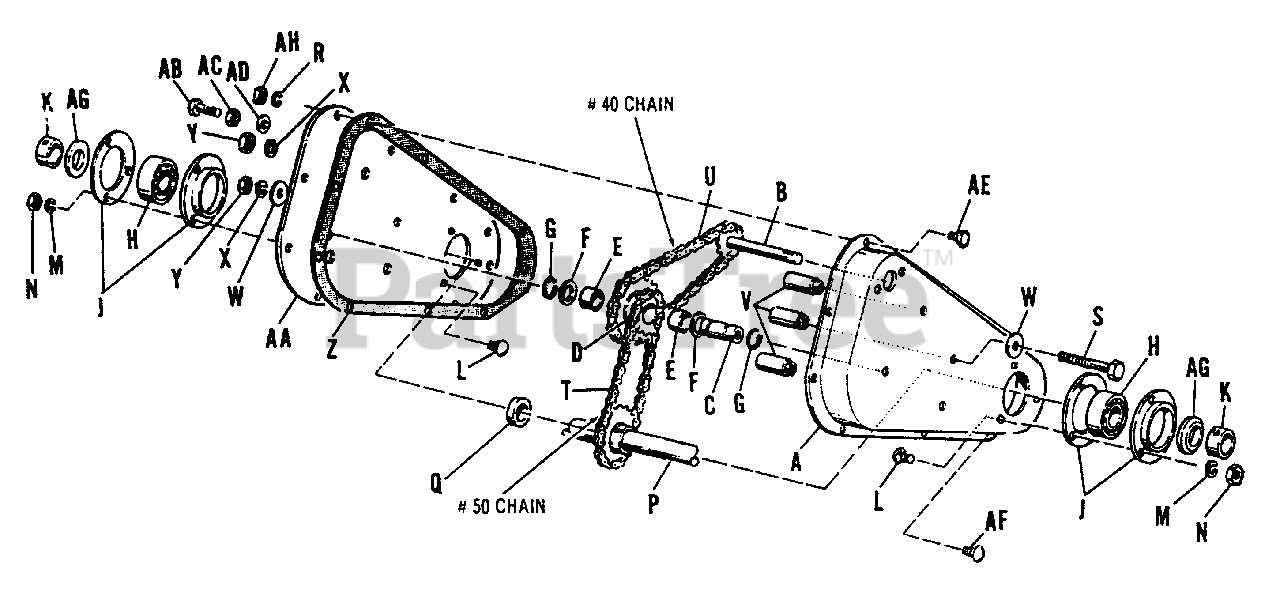

HOUSING GROUP Parts Diagram

  • Title

A

Simplicity 105123

Guard Assembly Chain

$

$

Not available

B

Simplicity 105189

Shaft Assembly Drive

$

$

Not available

C

Simplicity 2105192SM

Spacer, Intermediate

$110.99

$

Usually ships in 2-12 days

0

D

Simplicity 105193

Sprocket Assembly

$

$

Not available

E

Simplicity 2105195SM

Bearing, Roller

$34.99

$

Usually ships in 2-12 days

0

F

Simplicity 2860208SM

Washer

$4.99

$

Usually ships in 2-12 days

0

G

Simplicity 2105194

Ring, Retaining

$

$

Not available

H

Simplicity 1729268SM

Bearing

$55.99

$

Usually ships in 2-12 days

0

J

Simplicity 815102

Flange, Bearing

$

$

Not available

K

Simplicity 815073

Collar, Bearing

$

$

Not available

L

Simplicity 2702003

Bolt Carriage, 3/8"-16 NC x 3/4" lg.

$

$

Not available

M

Simplicity 2720002

Washer Lock 3/8"

$

$

Not available

N

Simplicity 2717003

Nut, Hex. Full 3/8"-16 NC

$

$

Not available

P

Simplicity 105267

Tine Shaft Assembly

$

$

Not available

Q

Simplicity 105272

Spacer

$

$

Not available

R

Simplicity 2720001

Washer, Lock 5/16"

$

$

Not available

S

Simplicity 2715063

Capscrew Hex 7/16"-14 NC x 3-3/4" lg.

$

$

Not available

T

Simplicity 2178174SM

Chain, Rotor

$86.99

$

Usually ships in 2-12 days

0

U

Simplicity 105055

Chain, Drive

$

$

Not available

V

Simplicity 105085

Spacer, Guard

$

$

Not available

W

Simplicity 105250

Washer

$

$

Not available

X

Simplicity 2720006

Washer, Lock 7/16"

$

$

Not available

Y

Simplicity 2717022

Nut, Hex, Full 7/16"-14 NC

$

$

Not available

Z

Snapper 2105016SM

Gasket

$

$

Not available

AA

Simplicity 105229

Plate Assembly

$

$

Not available

AB

Simplicity 715052

Capscrew, Hex, 3/8"-24 NF x 2-1/2" lg.

$161.99

$

Usually ships in 2-12 days

0

AC

Simplicity 2717014

Nut, Hex. Jam, 3/8"-24 NF

$

$

Not available

AD

Simplicity 1924356SM

Washer Plain 3/8"
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

AE

Simplicity 2705012

Capscrew, Hex, 5/16"-18 NC x 5/8" lg.

$

$

Not available

AF

Simplicity 2703005

Carriage, Bolt 5/16"-18 NC x 3/4" lg.

$

$

Not available

AG

Simplicity 105237

Shield

$

$

Not available

AH

Simplicity 717211

Nut, Hex, Full 5/16"-18 NC

$

$

Not available
