990370 - Simplicity Weed Cutter CUTTER HOUSING Parts Diagram

Weed Cutter

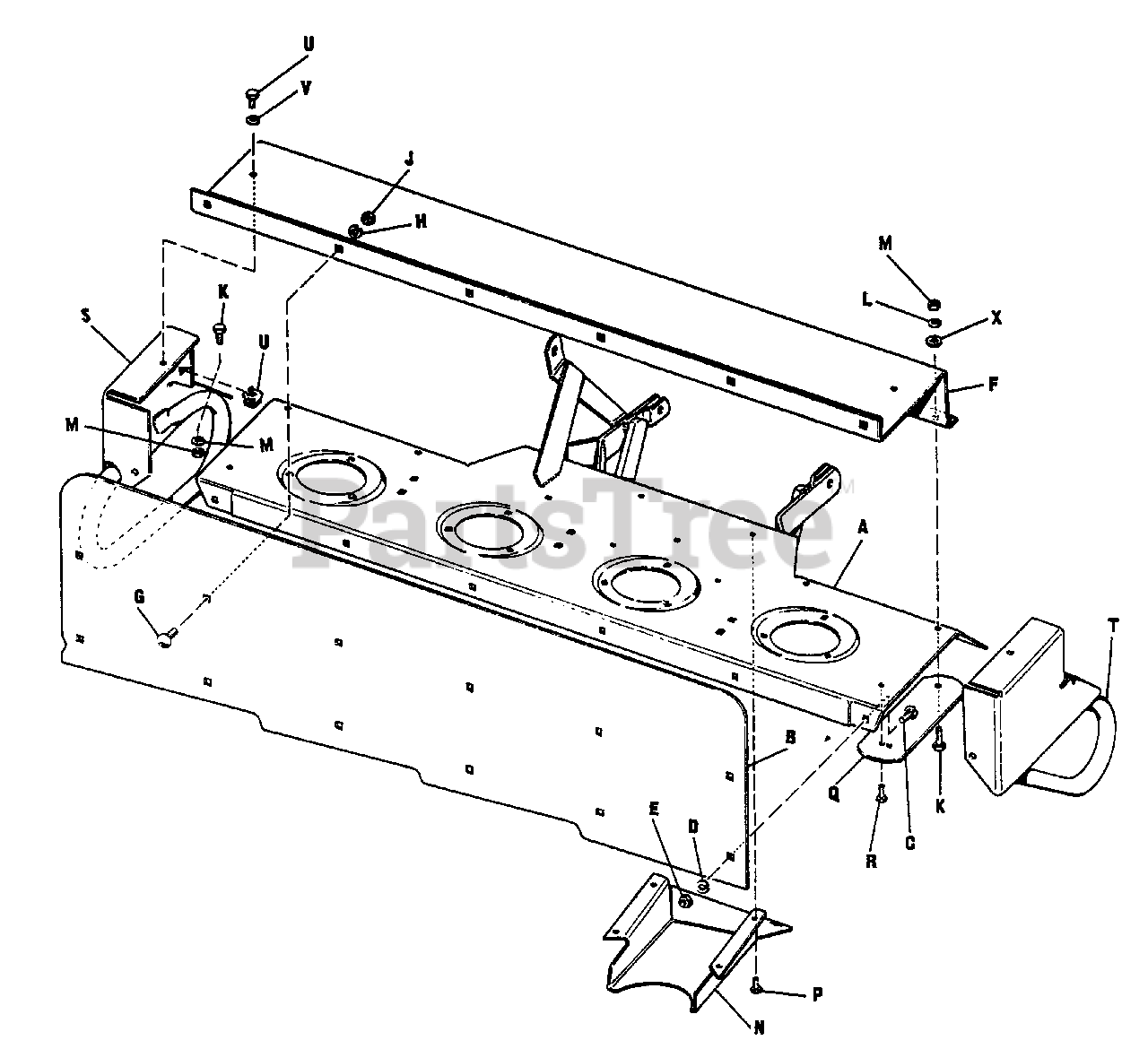

CUTTER HOUSING Parts Diagram

  • Title

A

Simplicity 124001

Housing Assembly

$

$

Not available

B

Simplicity 124009

Front Plate

$

$

Not available

C

Simplicity 2703005

Carriage. Bolt, 5/16"-18 x 3/4"

$

$

Not available

D

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

E

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

F

Simplicity 124026

Spindle Cover

$

$

Not available

G

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

K

Simplicity 2705017

Hex Cap Screw, 5/16" -18 x 3/4"

$

$

Not available

L

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

M

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

N

Simplicity 124027

Belt Cover

$

$

Not available

P

Simplicity 2715067

Std. Screw Taptite, 1/4"-20 x 3/8

$

$

Not available

Q

Simplicity 124028

Baffle

$

$

Not available

R

Simplicity 2715067

Std. Screw Taptite, 1/4"-20 x 3/8"

$

$

Not available

S

Simplicity 124029

R.H. End Cap Assembly

$

$

Not available

T

Simplicity 124032

L.H. End Cap Assembly

$

$

Not available

U

Simplicity 718037

Tinnerman Nut, 5/16"-18

$

$

Not available

V

Simplicity 2705012

Hex Cap Screw, 5/16"-18 x 5/8"

$

$

Not available

W

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

X

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available
