990368 - Simplicity Broadmoor Light Kit BROADMOOR LIGHT KIT Parts Diagram

Broadmoor Light Kit

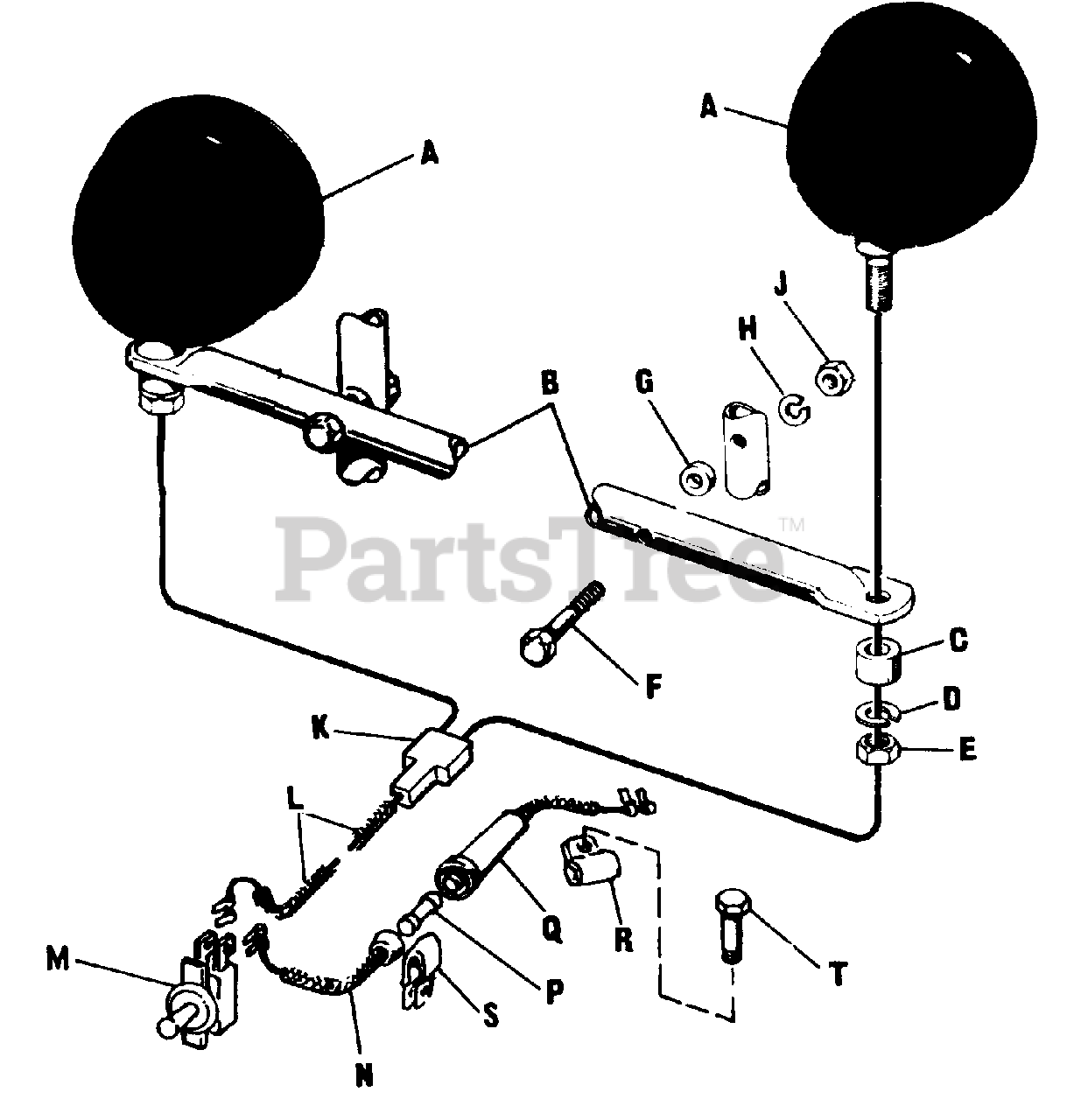

BROADMOOR LIGHT KIT Parts Diagram

  • Title

A

Simplicity 122175

Lamp Assembly

$

$

Not available

B

Simplicity 122161

Light Support

$

$

Not available

C

Simplicity 122053

Spacer

$

$

Not available

D

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

E

Simplicity 2717006

Full Hex. Nut, 1/2"-13

$

$

Not available

F

Simplicity 2705036

Hex. Cap Screw, 5/16"-18 x 2-1/2"

$

$

Not available

G

Simplicity 154483

Spacer

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

K

Simplicity 122182

Insulated Connector

$

$

Not available

L

Simplicity 122176

Wire (switch to lamp) 32"

$

$

Not available

M

Simplicity 2122184SM

Toggle Switch (with hardware)

$22.99

$

Usually ships in 2-12 days

0

N

Simplicity 122178

Wire (fuse to switch) 26"

$

$

Not available

P

Simplicity 122172

Fuse 20 Amp.

$

$

Not available

Q

Simplicity 122177

Wire (fuse to voltage reg.) 2-1/2"

$

$

Not available

R

Simplicity 2157108

Clamp, front

$

$

Not available

S

Simplicity 156042

Clamp, side

$

$

Not available

T

Simplicity 2705015

Hex. Cap Screw, 1/4"-20 x 5/8"

$

$

Not available
