990366 - Simplicity Light Kit LIGHT KIT Mfr's. No. 990366 Parts Diagram

Light Kit

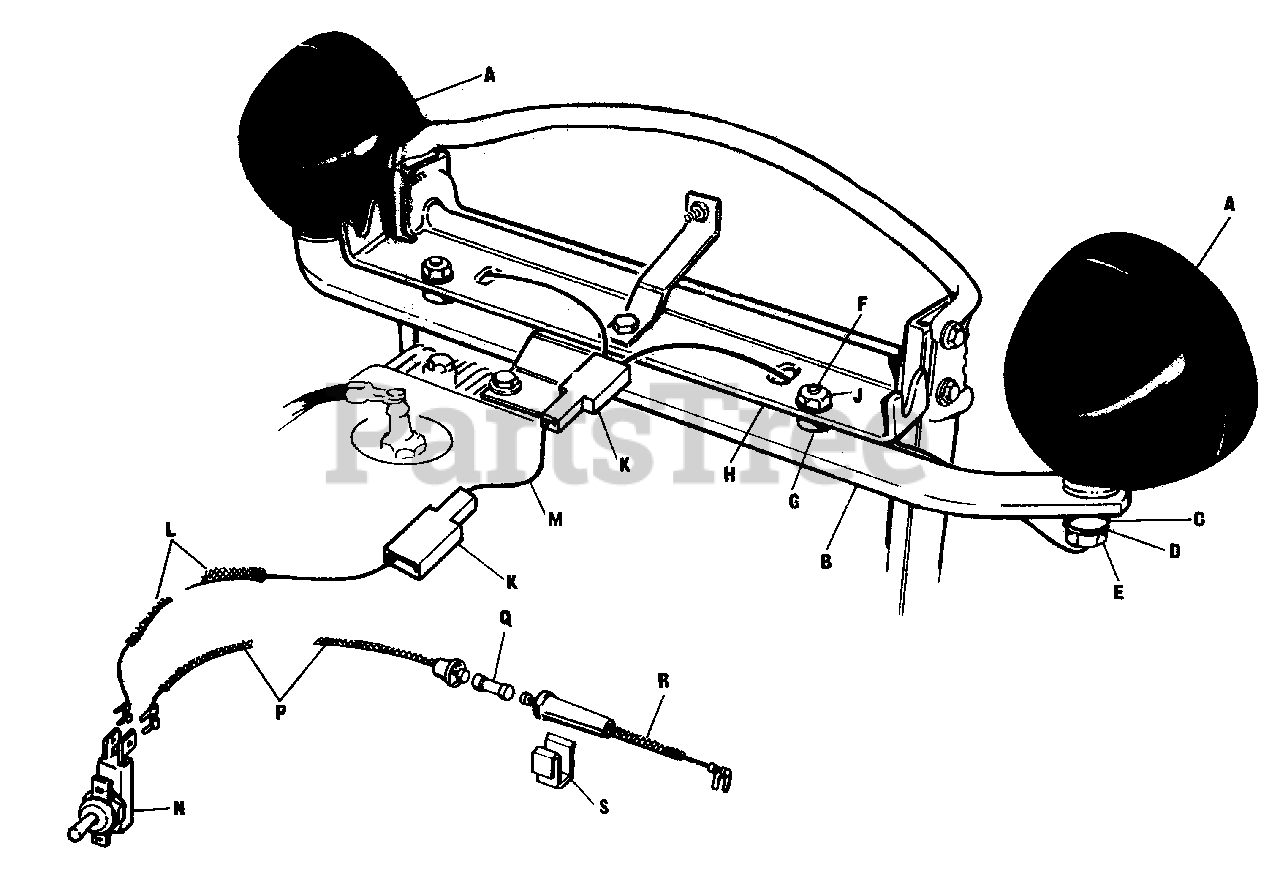

LIGHT KIT Mfr's. No. 990366 Parts Diagram

  • Title

A

Simplicity 122175

Lamp Assembly

$

$

Not available

B

Simplicity 122152

Light Support

$

$

Not available

C

Simplicity 122053

Spacer

$

$

Not available

D

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

E

Simplicity 2717006

Full Hex. Nut, 1/2"-13

$

$

Not available

F

Simplicity 2705007

Hex. Cap Screw, 5/16"-18 x 1-1/2"

$

$

Not available

G

Simplicity 1663752SM

Spacer

$5.99

$

In Stock, only 2 left!

0

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

K

Simplicity 122182

Insulated Connector

$

$

Not available

L

Simplicity 122176

Wire (switch to connector)

$

$

Not available

M

Simplicity 122185

Extension Wire

$

$

Not available

N

Simplicity 2122184SM

Toggle Switch (with hardware)

$22.99

$

Usually ships in 2-12 days

0

P

Simplicity 122178

Wire (fuse to switch)

$

$

Not available

Q

Simplicity 122172

Fuse 20 Amp.

$

$

Not available

R

Simplicity 122177

Wire (fuse to voltage reg.)

$

$

Not available

S

Simplicity 122186

Clamp

$

$

Not available
