990345 - Simplicity 36" Rotary Snow Blower Attachment SPOUT GROUP Parts Diagram

36" Rotary Snow Blower Attachment

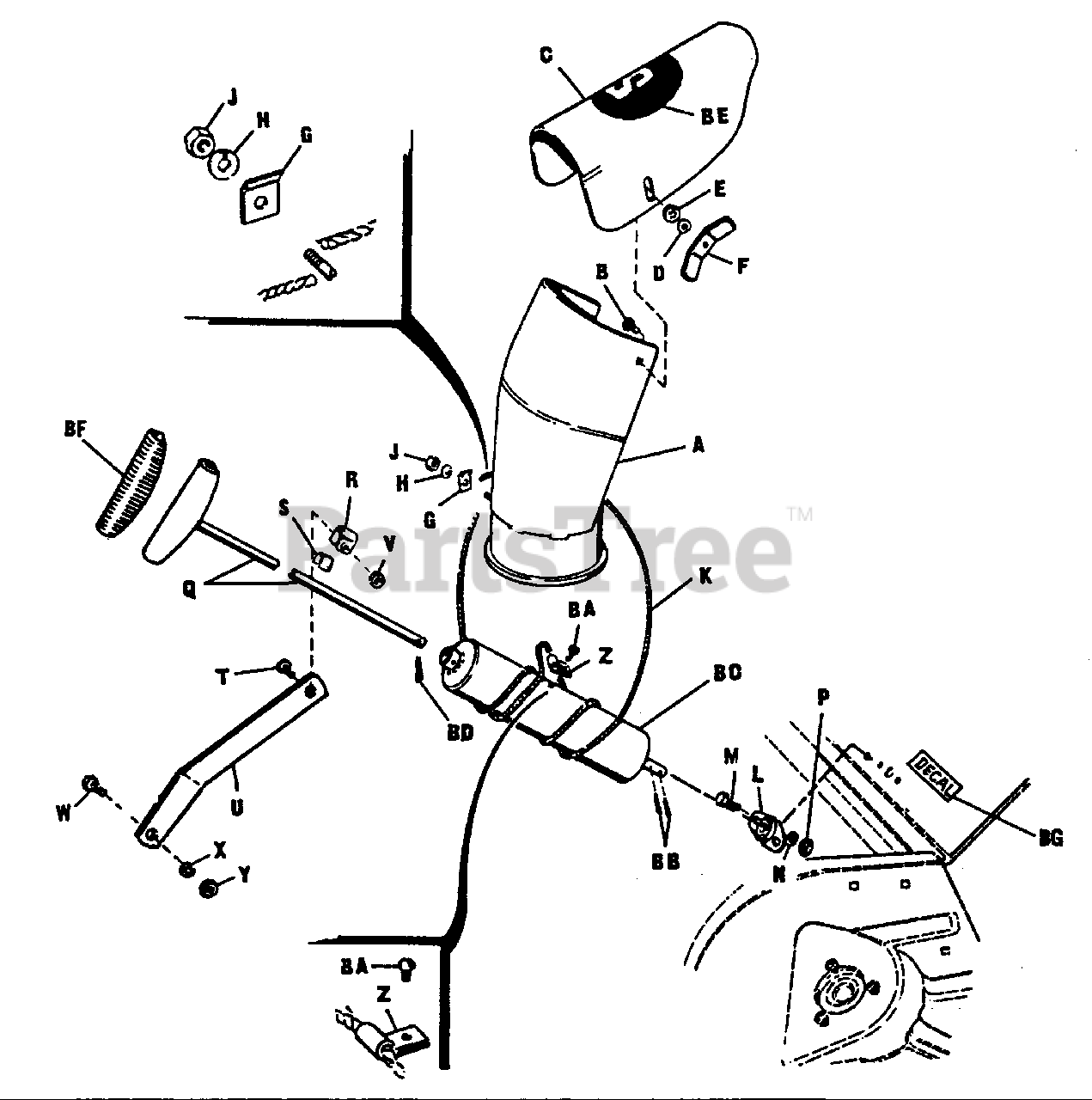

SPOUT GROUP Parts Diagram

  • Title

A

Simplicity 106338

Spout Assembly

$

$

Not available

B

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

C

Simplicity 1064-89

Spout Extension

$

$

Not available

D

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

E

Simplicity 2721601

Special Hex. Lock Washer, 3/8"

$

$

Not available

F

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

G

Simplicity 121042

Plate

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

K

Simplicity 106592

Spout Cord

$

$

Not available

L

Simplicity 2106491SM

Bearing

$11.99

$

Usually ships in 2-12 days

0

M

Simplicity 2705015

Hex Capscrew, 1/4"-20 x 5/8"

$

$

Not available

N

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

P

Simplicity 2717005

Full Hex. Nut, 24"-20

$

$

Not available

Q

Simplicity 106664

Handle

$

$

Not available

R

Simplicity 2152050SM

Rod Guide

$9.49

$

Usually ships in 2-12 days

0

S

Simplicity 2121175SM

Guide Liner

$7.99

$

Usually ships in 2-12 days

0

T

Simplicity 2705019

Hex. Capscrew, 5/16"-18 x 1-1/4"'

$

$

Not available

U

Simplicity 106666

Rod Guide Support

$

$

Not available

V

Simplicity 2717511

Full Hex. Lock Nut, 5/16"-18

$

$

Not available

W

Simplicity 2705016

Hex. Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

X

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

Y

Simplicity 2717003

Hex. Nut, 3/8"-16

$

$

Not available

Z

Simplicity 154247

Clamp

$

$

Not available

BA

Simplicity 2714016

Self-Tapping Screw, 1/4"-20 x 1/2"

$

$

Not available

BB

Simplicity 2722016

Cotter Pin, 1/8" x 3/4"

$

$

Not available

BC

Simplicity 106603

Control Tube, W/Socket

$

$

Not available

BD

Simplicity 722015

Cotter Pin, 5/32" x 1"

$

$

Not available

BE

Simplicity 106512

Decal

$

$

Not available

BF

Simplicity 106516

Cover Handle

$

$

Not available

BG

Simplicity 103031

Safety Decal

$

$

Not available

BG

Simplicity 106798

Winter Gas Cap

Note: Not Illustrated

$

$

Not available
