990333 - Simplicity 32" Mower Deck Rear Wheels & Side Plate Group Parts Diagram

32" Mower Deck

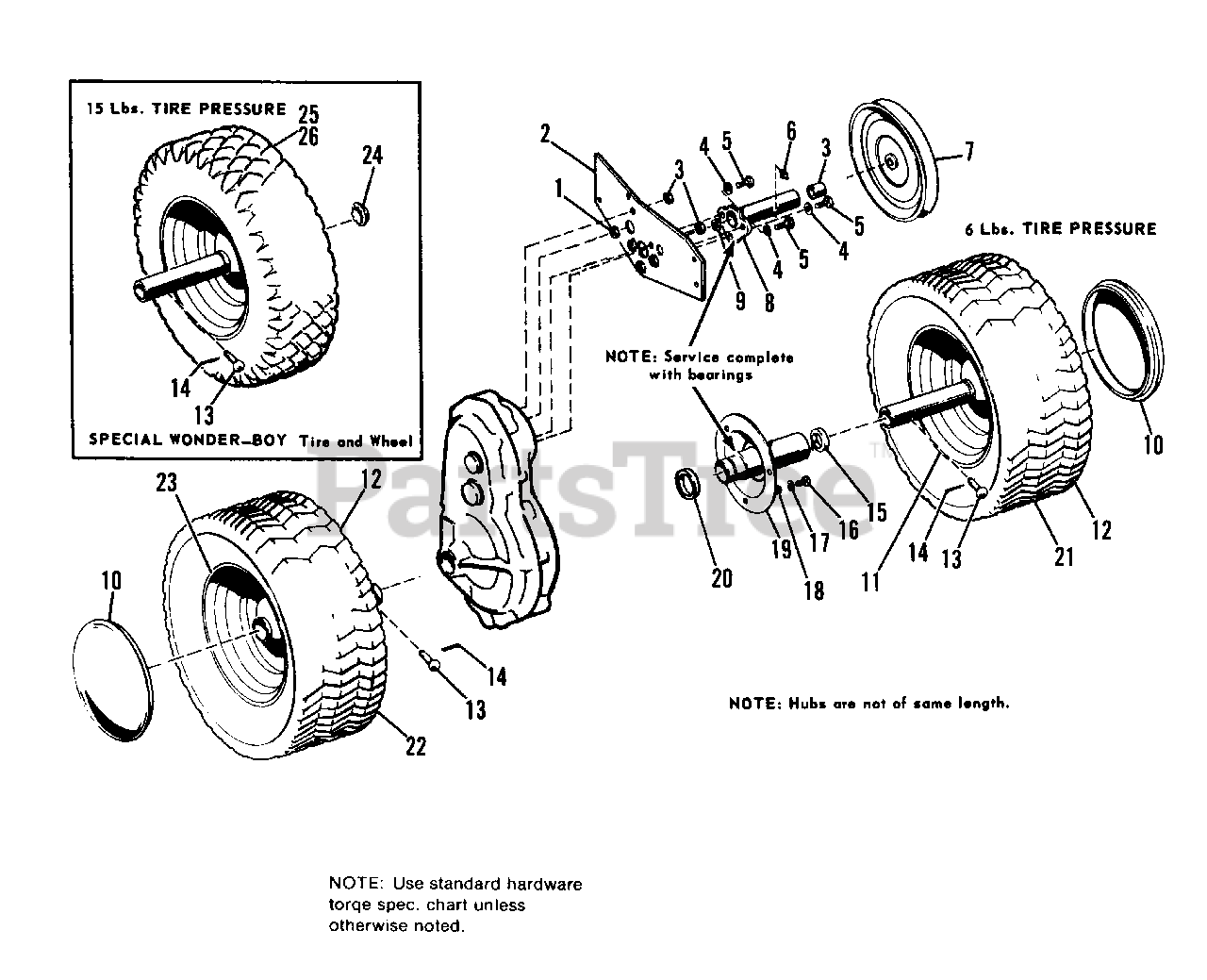

Rear Wheels & Side Plate Group Parts Diagram

  • Title

1

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

2

Simplicity 159036

PLATE ASSY., Side, L.H.

$

$

Not available

3

Simplicity 159123

BEARING

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2819319

CAPSCREW, Hex Hd., 5/16-18 x 7/8

$

$

Not available

6

Simplicity 2812808SM

FITTING, Grease, #1641

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 2156119SM

PULLEY, Transmission

$112.99

$

Usually ships in 2-12 days

0

8

Simplicity 103178

TUBE ASSY., W/Bearing

$

$

Not available

9

Simplicity 159124

SEAL, Grease

$

$

Not available

10

Simplicity 2156211SM

CAP, Hub

$

$

Not available

11

Simplicity 173025

WHEEL ASSY., R.H.

$

$

Not available

12

Simplicity 2157490

TIRE, Tubeless

$

$

Not available

13

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

14

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

15

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

16

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 103170

HOUSING ASSY., Axle W/Bearings

$

$

Not available

20

Simplicity 2156099SM

SEAL, Oil

$3.49

$

In Stock, only 1 left!

0

21

Simplicity 159096

WHEEL & TIRE ASSY., Rear, L.H.

Note: Used on No. 990329.

$

$

Not available

22

Simplicity 159095

WHEEL & TIRE ASSY., Rear, R.H.

Note: Used on No. 990329.

$

$

Not available

23

Simplicity 159154

WHEEL ASSY.,L.H.

$

$

Not available

24

Simplicity 121342

BUTTON, Plug

$

$

Not available

25

Simplicity 159144

WHEEL & TIRE ASSY., R.H.

Note: Used On Mfg. No. 990332.

$

$

Not available

26

Simplicity 159142

WHEEL & TIRE ASSY., L.H.

Note: Used On Mfg. No. 990332.

$

$

Not available
