990333 - Simplicity 32" Mower Deck Front Frame & Steering Group Parts Diagram

32" Mower Deck

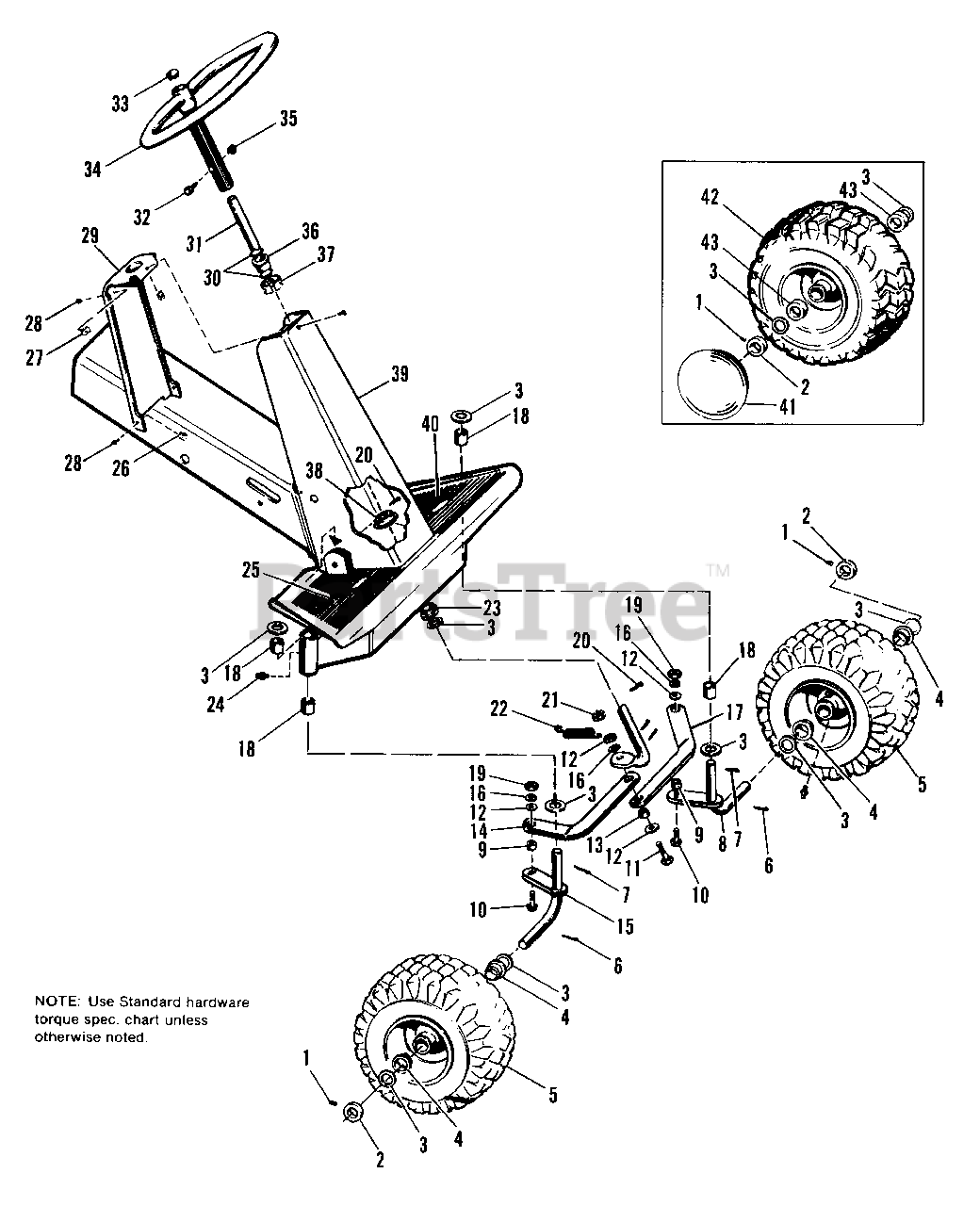

Front Frame & Steering Group Parts Diagram

  • Title

1

Simplicity 2828691

SETSCREW, Cup Pt., 5/16-18 x 5/16

$

$

Not available

2

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$

$

Not available

3

Simplicity 2108181

WASHER

$

$

Not available

4

Simplicity 2159139

BEARING

$

$

Not available

5

Simplicity 1608379

WHEEL & TIRE ASSY., Front

$

$

Not available

6

Simplicity 2819314

PIN, Cotter, 3/16 x 1-1/4

$

$

Not available

7

Simplicity 918455

PIN, Cotter, 5/32 x 1

$

$

Not available

8

Simplicity 159019

SPINDLE ASSY., L.H.

$

$

Not available

9

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

10

Simplicity 2828727

SCREW, Hex, Whizlock, Flange, 3/8-16 x 1-1/4

$

$

Not available

11

Simplicity 2823701

CAPSCREW. Hex Hd., 3/8-16 x 2

$

$

Not available

12

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 159029

SPACER

$

$

Not available

14

Simplicity 159028

LINK, Steering, R.H.

$

$

Not available

15

Simplicity 159021

SPINDLE ASSY., R.H.

$

$

Not available

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

17

Simplicity 159027

LINK, Steering, L.H.

$

$

Not available

18

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

19

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

20

Simplicity 919430

PIN, Cotter, 5/32 x 1-1/4

$

$

Not available

21

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 2159159SM

SPRING

$37.99

$

In Stock, only 1 left!

0

23

Simplicity 159026

BUSHING

$

$

Not available

24

Simplicity 2812808SM

FITTING, Grease, #1641

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 159099

PAD, Foot Rest, R.H.

$

$

Not available

26

Simplicity 930657

NUT. Speed

$

$

Not available

27

Simplicity 920299

NUT, Speed

$

$

Not available

28

Simplicity 2822122

SCREW, Self Tapping, #10 x 1/2

$

$

Not available

29

Simplicity 159018

COVER

$

$

Not available

30

Simplicity 2157241

RING, Snap

$

$

Not available

31

Simplicity 159025

SHAFT. Steering

$

$

Not available

32

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

33

Simplicity 156279

BUTTON, Plug

$

$

Not available

34

Simplicity 158574

HANDLE ASSY., Steering

$

$

Not available

35

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

36

Simplicity 2157077SM

BUSHING

$140.99

$

Usually ships in 2-12 days

0

37

Simplicity 159024

RETAINER, Steering Bushing

$

$

Not available

38

Simplicity 158012

CUP. Steering Shaft

$

$

Not available

39

Simplicity 159001

FRAME & AXLE ASSY., Front

$

$

Not available

40

Simplicity 159098

PAD, Foot Rest. L.H.

$

$

Not available

41

Simplicity 159153

CAP. Hub, Front Wheel

$

$

Not available

42

Simplicity 159146

WHEEL & TIRE ASSY. Front

$

$

Not available

43

Simplicity 159151

BEARING

$

$

Not available
