990333 - Simplicity 32" Mower Deck 32" Mower Housing & Arbor Group Parts Diagram

32" Mower Deck

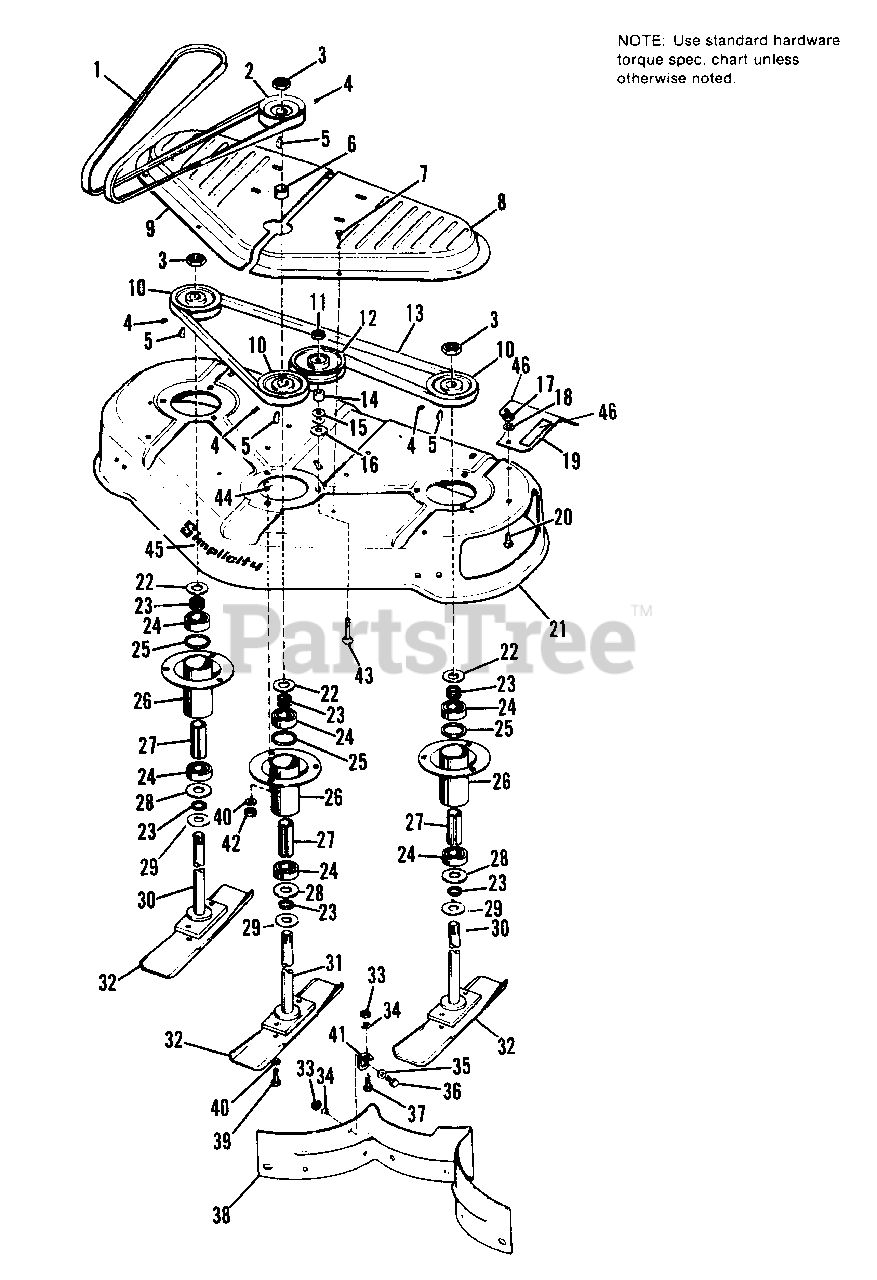

32" Mower Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 2108389SM

BELT, V, Drive

$50.99

$

Usually ships in 2-12 days

0

2

Simplicity 2108246SM

PULLEY, Drive

$76.99

$

In Stock, only 1 left!

0

3

Simplicity 2822133

LOCKNUT, Jam, 3/4-16

$

$

Not available

4

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

5

Simplicity 2810224SM

KEY, Woodruff, #6

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 108371

SPACER

$

$

Not available

7

Simplicity 2822123

SCREW, Hex, Self Tapping, 1/4-20 x 7/8

$

$

Not available

8

Simplicity 108302

COVER, L.H.

$

$

Not available

9

Simplicity 108301

COVER, R.H.

$

$

Not available

10

Simplicity 2177005SM

ULLEY

$48.99

$

In Stock, only 1 left!

0

11

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 2108386SM

PULLEY, Idler

$

$

Not available

13

Simplicity 2108151

BELT, V

$

$

Not available

14

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, only 4 left!

0

15

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

16

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

17

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 108499

DEFLECTOR

$

$

Not available

20

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

21

Simplicity 2103295

HOUSING, Mower

$

$

Not available

22

Simplicity 2108139

FLINGER

$

$

Not available

23

Simplicity 2108181

WASHER

$

$

Not available

24

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

25

Simplicity 2108134

RING, Backing

$

$

Not available

26

Simplicity 2108679

TUBE ASSY., Arbor

$

$

Not available

27

Snapper 2108201SM

SPACER

$19.99

$

In Stock, only 1 left!

0

28

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, only 2 left!

0

29

Simplicity 2108472

WASHER

$

$

Not available

30

Simplicity 2108250SM

ARBOR ASSY.

$115.99

$

Usually ships in 2-12 days

0

31

Simplicity 2108369SM

DRIVE ASSY., Arbor

$149.99

$

Usually ships in 2-12 days

0

32

Simplicity 2108297ASM

BLADE

$

$

Not available

33

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 916664

LOCKWASHER, 1/4

$

$

Not available

35

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

36

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

37

Simplicity 2822125

SCREW, Hex, Self Tapping, 1/4-20 x 7/8

$

$

Not available

38

Simplicity 108187

BAFFLE

$

$

Not available

39

Simplicity 2822586SM

CAPSCREW, Hex Hd., 3/8-16 x 5/8

$2.99

$

In Stock, Qty 5

0

40

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

41

Simplicity 2108186SM

CLIP

$12.99

$

In Stock, only 1 left!

0

42

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

43

Simplicity 2823420

BOLT, Carriage, 3/8-16 x 1-3/4

$

$

Not available

44

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

45

Simplicity 155061

DECAL, Simplicity

$

$

Not available

46

Simplicity 103031

DECAL, Safety

$

$

Not available
