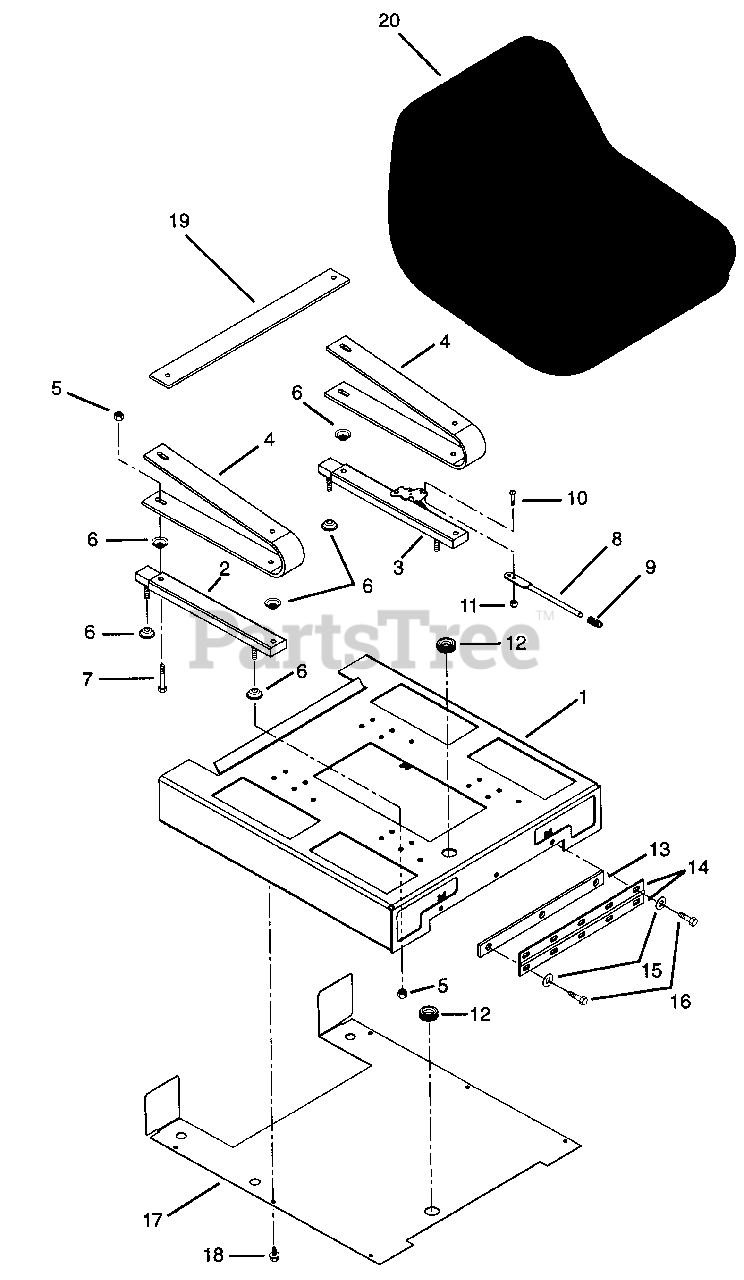

990300 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Seat and Deck Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

Seat and Deck Assembly Parts Diagram

  • Title

1

Gravely 09060200

Weldment,Seat Lid

$159.99

$

Usually ships in 4-12 days

0

2

Gravely 035642

Adjuster,Seat
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

3

Gravely 035641

Adjuster,Seat w/Latch
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

4

Gravely 03486800

Spring,Seat

$

$

Not available

5

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 035670

Seat Slide Spacer
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

7

Gravely 180082

Bolt-Hex .31-18 x 1.38
(Superseded to 05934500)

$

$

Not available

8

Gravely 039063

Seat Slide Handle
(Superseded to 03416500)

$

$

Not available

9

Gravely 043192

Tip-Brake Lock Lever
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

10

Gravely 159929

Screw-Machine 10-24 x .625
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

11

Gravely 190254

Nut-Locking 10-24 Nylon
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 045290

Grommet 75 x 1.06 x 1.38
(Superseded to 07530600)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 044570

Plate,Clamping
(Superseded to 01539100)

$

$

Not available

14

Gravely 039090

Hinge
(Superseded to 03102800)

$

$

Not available

15

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 09060100

Shield,Seat Lid

$

$

Not available

18

Gravely 036485

Screw-Tapping .25-20 x .50
(Superseded to 07502600)

$

$

Not available

19

Gravely 09004000

Bracket,Seat
(Superseded to 09004051)

$

$

Not available

20

Gravely 09112400

Seat,V-560 High Back

$

$

Not available
