990300 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Gear Shift and Hydraulic Lift Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

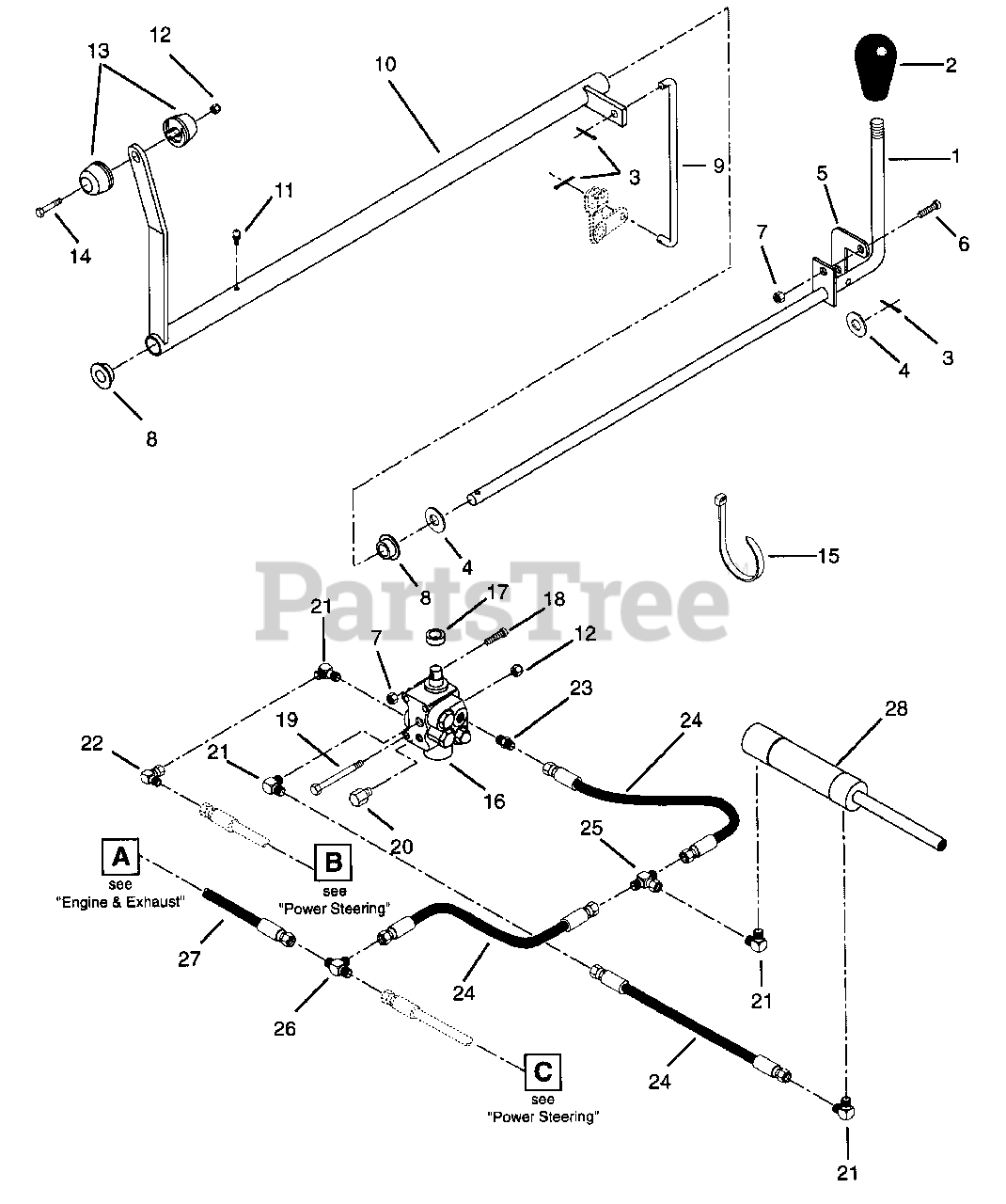

Gear Shift and Hydraulic Lift Parts Diagram

  • Title
1

Gravely 045940

Weldment,Lift Lever
(Superseded to 08972600)

$

$

Not available

2

Gravely 032659

Knob,PTO
(Superseded to 07522900)

$21.99

$

Usually ships in 4-12 days

0

3

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

4

Gravely 417098

Washer-Flat-Steel .531 x 1.000 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 041237

Rod,Hydraulic Control
(Superseded to 09065000)

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 159929

Screw-Machine 10-24 x .625
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

7

Gravely 190254

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 09051400

Rod,Hi-Lo Control

$

$

Not available

10

Gravely 09051300

Lever,Hi-Lo Control Weldment

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

12

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 041941

Knob,Control
(Superseded to 07527100)

$

$

Not available

14

Gravely 180034

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

15

Gravely 041634

TieWrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 018825

Valve,Hydraulic
(Superseded to 08901100)

$

$

Not available

17

Gravely 048587

Spacer .700 x 1.00 x .31
(Superseded to 08984500)

$

$

Not available

18

Gravely 159957

Screw-Machine 10-24 x 1.00
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 180050

Bolt-Hex .25-20 x 2.75
(Superseded to 05969900)

$

$

Not available

20

Gravely 021716

Plug .44-20
(Superseded to 07021600)

$

$

Not available

21

Gravely 018828

Adapter
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

22

Gravely 018818

Adapter
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 019167

Adapter-Pipe .56-18
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

24

Gravely 046386

Assembly,Hydraulic Hose
(Superseded to 08978400)

$

$

Not available

25

Gravely 07042900

Adapter,Fitting Tee

$

$

Not available

26

Gravely 021799

Adapter-Tee .56-18
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

27

Gravely 046385

Assembly,Hydraulic Hose
(Superseded to 08978300)

$

$

Not available

28

Gravely 050679

Cylinder,Lift
(Superseded to 08998900)

$

$

Not available
