9903-0 - Generac XL 6,500 Watt Portable Generator, Rev 0 (1994-12) GN-Engine Trim Parts Parts Diagram

XL 6,500 Watt Portable Generator, Rev 0

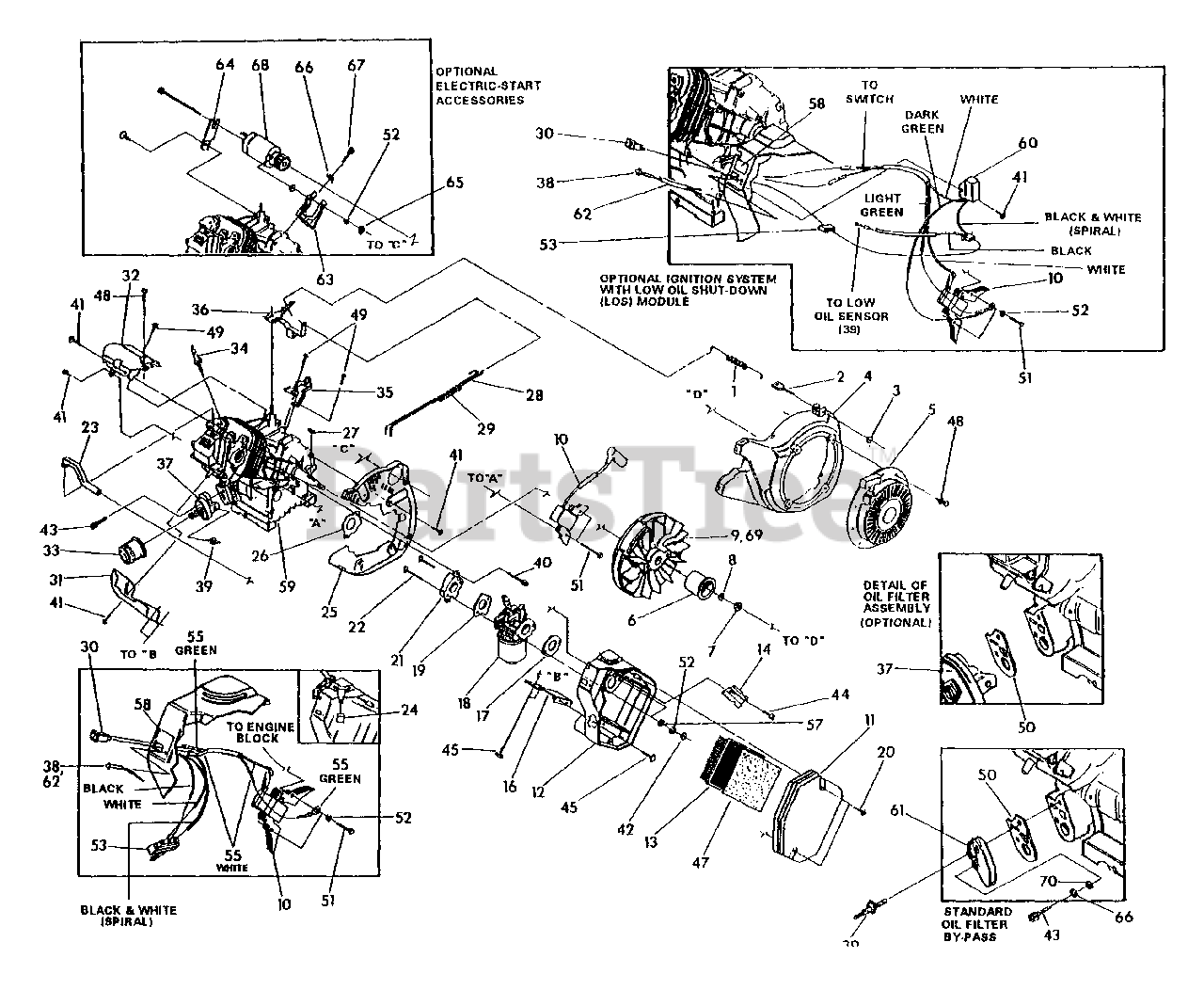

GN-Engine Trim Parts Parts Diagram

  • Title

1

Briggs & Stratton 73100

Governor Spring
(Superseded to 7073100SM)

$9.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 83502

Governor Adjust Bolt- M5

$

$

Not available

3

Briggs & Stratton 83503

Metal lock Nut - M5-0.8

$

$

Currently unavailable

4

Briggs & Stratton 92437

Blower Housing Assembly

$

$

Currently unavailable

5

Briggs & Stratton 95092

Recoil Assembly

$

$

Currently unavailable

6

Briggs & Stratton 81641

Recoil Cup

$

$

Currently unavailable

7

Briggs & Stratton 67890

Flywheel Hex Nut

$

$

Not available

8

Briggs & Stratton 67198N

Bevel Washer

$

$

Currently unavailable

9

Briggs & Stratton 77147A

Flywheel Assembly

$

$

Currently unavailable

10

Briggs & Stratton 84542

Ignition Coil Assembly

$

$

Currently unavailable

11

Briggs & Stratton 73104A

Air Cleaner Cover

$

$

Currently unavailable

12

Briggs & Stratton 73108A

Air Cleaner Base

$

$

Currently unavailable

13

Briggs & Stratton 73111

Air Cleaner Element
(Superseded to 73111GS)

$15.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 91204

Spit Back Plate

$

$

Not available

16

Briggs & Stratton 90827

Air Box Bracket

$

$

Not available

17

Briggs & Stratton 90970

Air Cleaner Gasket
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 91187

Carburetor
(Superseded to 7091187SM)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 89228

Carburetor/manifold Gasket

$

$

Not available

20

Briggs & Stratton 78609

Air Cleaner Cover Bolt

$

$

Not available

21

Briggs & Stratton 91028

Adaptor "K"
(Superseded to 7091028YP)

$

$

Not available

22

Briggs & Stratton 81647

Carburetor Mounting Bolt

$

$

Not available

23

Briggs & Stratton 72745

Breather Hose
(Superseded to 7072745YP)

$319.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 83504

Choke Knob

$

$

Not available

25

Briggs & Stratton 73116A

Blower Housing Backplate

$

$

Currently unavailable

26

Briggs & Stratton 91039

Intake Adaptor Gasket
(Superseded to 7091039YP)

$3.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 82774

Woodruff Key 4 x 19

$

$

Not available

28

Briggs & Stratton 72735

Governor Control Rod

$

$

Not available

29

Briggs & Stratton 72789

Governor Anti-lash Spring

$

$

Currently unavailable

30

Briggs & Stratton 78653

Engine Shut-off Switch
(Superseded to 78653GS)

$

$

Not available

31

Briggs & Stratton 88434

Bottom Wrapper

$

$

Currently unavailable

32

Briggs & Stratton 88433

Top Wrapper

$

$

Currently unavailable

33

Briggs & Stratton 70185

Oil Filter
(Superseded to 70185GS)

Note: (Optional)

$

$

Not available

34

Briggs & Stratton 72347

Spark Plug
(Superseded to 491055S)

Note: (Champion 12YC)

$4.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 73101

Bracket, Governor Adjust with Idle Control

$

$

Currently unavailable

36

Briggs & Stratton 72734

Governor Lever Assembly

$

$

Not available

37

Briggs & Stratton 94683

Oil Filter Adaptor
(Superseded to 690369)

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 85272

Low Oil Indicator Lamp

$

$

Currently unavailable

39

Briggs & Stratton 77667

Low Oil Pressure Switch

$

$

Not available

40

Briggs & Stratton 40945

M6-1.0 x 20mm Capscrew
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 45756

Screw, M6-1.0 x 10mm

$

$

Not available

42

Briggs & Stratton 49813

Hex Nut, M6-1.0
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 49821

M8-1.25 x 30mm Capscrew

$

$

Not available

44

Briggs & Stratton 59635

Plastite Screw - 43 x 3/8"

$

$

Currently unavailable

45

Briggs & Stratton 66476

M6-1.0 x 12mm Capscrew
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 81646

Air Filter Pre-cleaner

$

$

Not available

48

Briggs & Stratton 81668

M6-1.0 x 10mm Capscrew

$

$

Not available

49

Briggs & Stratton 83512

Screw, M8-1.25 x 15mm
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 86999

Oil Filter Adaptor Gasket

$

$

Not available

51

Briggs & Stratton 92079

Screw, M6-1.0 x 25mm
(Superseded to 7092079YP)

$4.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 22097

MS Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 84329

3-pin Male Housing

$

$

Currently unavailable

55

Briggs & Stratton 92981

Ignition Wire Assembly

$

$

Currently unavailable

57

Briggs & Stratton 49811

M6 Flat Washer
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 93104

LOS Engine Decal

$

$

Currently unavailable

59

Briggs & Stratton 91001A

Long Block w/straight shaft

$

$

Currently unavailable

60

Briggs & Stratton 87221B

LOS Module

$

$

Currently unavailable

61

Briggs & Stratton 72709

Oil Filter Pad Cover
(Superseded to 7072709YP)

$67.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93611

Sleeving

$

$

Not available

63

Briggs & Stratton 86260

Starter Mount Bracket

$

$

Not available

64

Briggs & Stratton 93922

Starter Mount Support
(Superseded to 93922GS)

$6.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 22127

1/4-20 Hex Nut

$

$

Not available

66

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

67

Briggs & Stratton 40976

M8-1.25 x 20 Capscrew

$

$

Not available

68

Briggs & Stratton 93487

"S" Engine Starter Motor

$

$

Currently unavailable

69

Briggs & Stratton 91222B

Flywheel and Ring Gear Assm.

$

$

Currently unavailable

70

Briggs & Stratton 38150

M8 Flat Washers
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0
