990299 - Simplicity 42" Snow Plow & Dozer Blade 42" SNOW PLOW & DOZER BLADE Parts Diagram

42" Snow Plow & Dozer Blade

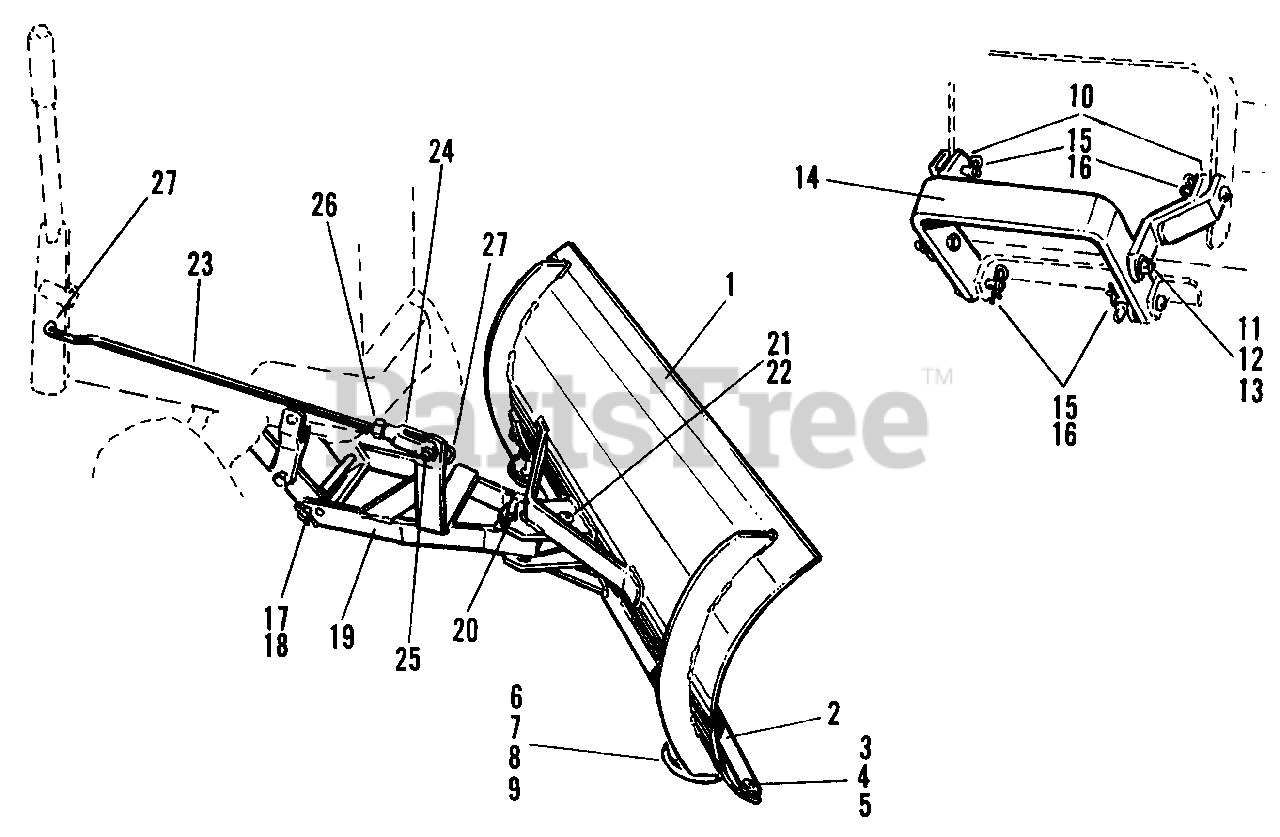

42" SNOW PLOW & DOZER BLADE Parts Diagram

  • Title

1

Simplicity 107047

42" Blade Assembly

$

$

Not available

2

Simplicity 2107045

Wear Plate

$

$

Not available

3

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4" lg.

$

$

Not available

4

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

5

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

6

Simplicity 2107024SM

Shoe Assembly

$

$

Not available

7

Simplicity 2702002

Carriage Bolt, 3/8"-16 x 1" lg.

$

$

Not available

8

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

9

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

10

Simplicity 107072

Support Arm Assembly

$

$

Not available

11

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

12

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

13

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

14

Simplicity 107074

Push Frame

$

$

Not available

15

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

16

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 107089

Pivot Rod

$

$

Not available

18

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 107075

Push Bar Assembly

$

$

Not available

20

Simplicity 1678549SM

Pivot Pin

$13.99

$

Usually ships in 2-12 days

0

21

Simplicity 1603602SM

King Pin

$9.99

$

Usually ships in 2-12 days

0

22

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 106812

Lift Rod

$

$

Not available

24

Simplicity 2157631

Adjusting Yoke End

$

$

Not available

25

Simplicity 2154305

Yoke Pin

$

$

Not available

26

Simplicity 717008

Hex Nut, Full, 1/2"-20

$

$

Not available

27

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0
