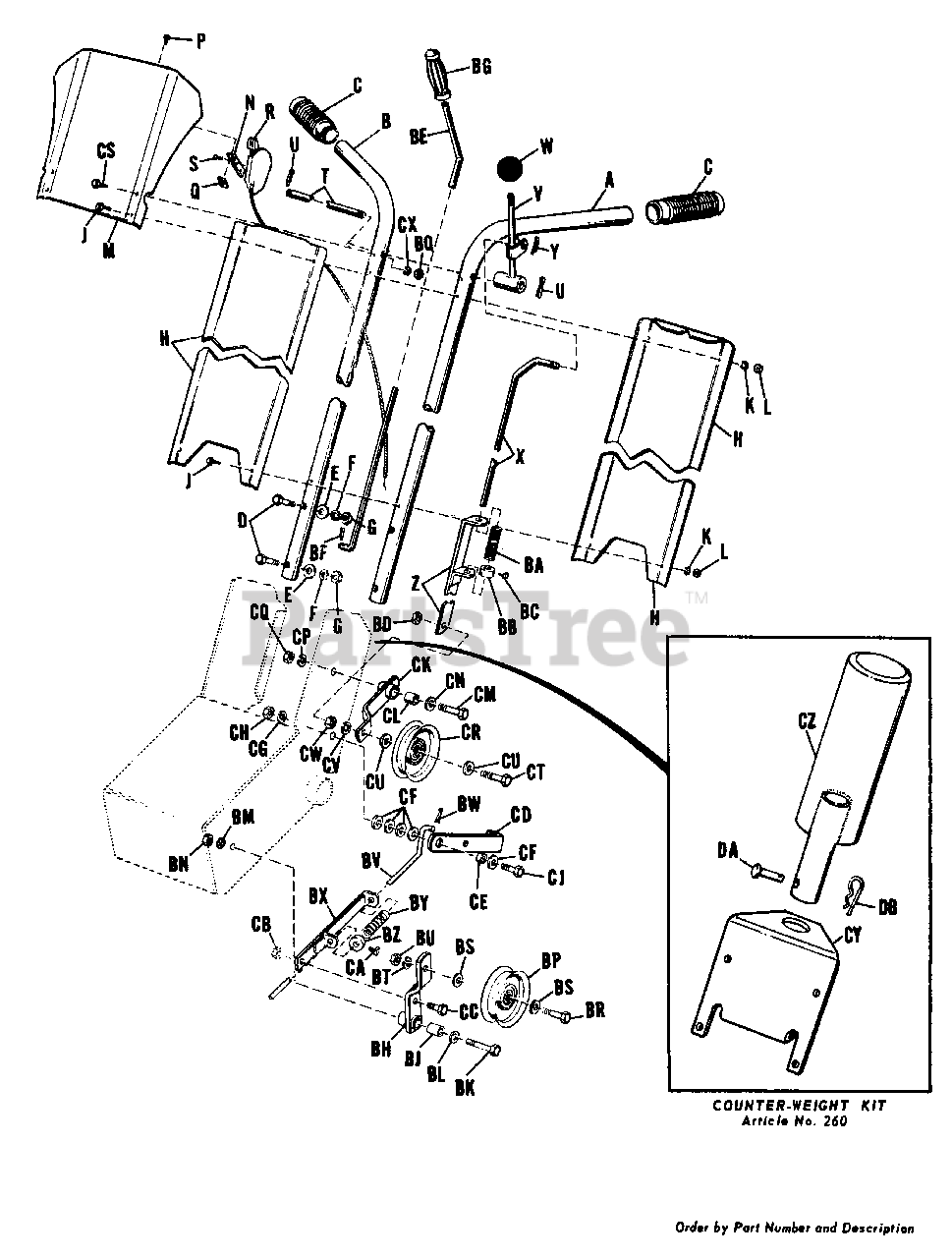

990296 - Simplicity Sno-Away 23" Snow Thrower, Rubber Wheels HANDLES & CONTROL Parts Diagram

Sno-Away 23" Snow Thrower, Rubber Wheels

HANDLES & CONTROL Parts Diagram

  • Title

A

Simplicity 106556

Handled, LH

$

$

Not available

B

Simplicity 106557

Handled, RH

$

$

Not available

C

Simplicity 2106558

Grip

$

$

Not available

D

Simplicity 2705006

Hex Capscrew, 3/8"-16 x 2"

$

$

Not available

E

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

F

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

G

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

H

Simplicity 106559

Handle Cover

$

$

Not available

J

Simplicity 2705025

Hex Capscrew, 1/4-20 x 1-1/2

$

$

Not available

K

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

L

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

M

Simplicity 106560

Housing Assembly

$

$

Not available

N

Simplicity 106524

Support, Throttle Control

$

$

Not available

P

Simplicity 2714003

Hex Screw, self-tap. #10-32 x 1/2

$

$

Not available

Q

Simplicity 718019

Speed Nut, Tinnerman

$

$

Not available

R

Simplicity 106563

Throttle Control Assembly

$

$

Not available

S

Simplicity 714005

Screw, self-Tap. #10-24 x 1/2

$

$

Not available

T

Simplicity 106564

Lever Pin

$

$

Not available

U

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

V

Simplicity 106565

Lever Assembly, LH

$

$

Not available

W

Simplicity 2106567

Ball

$

$

Not available

X

Simplicity 106568

Transmission Clutch Rod

$

$

Not available

Y

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

Z

Simplicity 106569

Idler Clutch Rod Guide Assy.

$

$

Not available

BA

Simplicity 1729277SM

Spring

$6.99

$

In Stock, only 1 left!

0

BB

Simplicity 1729276SM

Set Collar

$

$

Not available

BC

Simplicity 2713001

Set Screw,Rd.Hd. 1/4-20 x 3/8

$

$

Not available

BD

Simplicity 2717510

Hex Nut, Full, Lock, 3/8"-16

$

$

Not available

BE

Simplicity 106571

Reverse Rod

$

$

Not available

BF

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

BG

Simplicity 106572

Grip, Reverse Rod

$

$

Not available

BH

Simplicity 106201

Idler Lever Assembly

$

$

Not available

BJ

Simplicity 1729274SM

Bearing Race, Inner

$

$

Not available

BK

Simplicity 2705010

Hex Capscrew, 3/8-16 x 1-3/4

$

$

Not available

BL

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

BM

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BN

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

BP

Simplicity 2154310

Idler Pulley (Rotor Drive)

$

$

Not available

BQ

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

BR

Simplicity 2705010

Hex Capscrew, 3/8-16 x 1-3/4

$

$

Not available

BS

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

BT

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BU

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

BV

Simplicity 106224

Rotor Clutch Rod

$

$

Not available

BW

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

BX

Simplicity 1729265SM

Clutch Rod Guide Assembly

$41.99

$

Usually ships in 2-12 days

0

BY

Simplicity 1729277SM

Spring

$6.99

$

In Stock, only 1 left!

0

BZ

Simplicity 1729276SM

Set Collar

$

$

Not available

CA

Simplicity 2713001

Set Screw, Sq. Hd, 1/4-20 x 3/8

$

$

Not available

CB

Simplicity 2717510

Hex Nut Full, Lock, 3/8"-16

$

$

Not available

CC

Simplicity 2705004

Hex Capscrew 3/8"-16 x 3/4

$

$

Not available

CD

Simplicity 106223

Foot Clutch Pedal

$

$

Not available

CE

Simplicity 1663752SM

Bushing

$5.99

$

In Stock, only 2 left!

0

CF

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

CG

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

CH

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

CJ

Simplicity 2705009

Hex Capscrew, 3/8-16 x 1-1/2

$

$

Not available

CK

Simplicity 106204

Idler Lever Assembly

$

$

Not available

CL

Simplicity 1729274SM

Race, Inner Bearing

$

$

Not available

CM

Simplicity 2705010

Hex Capscrew, 3/8-16 x 1-3/4

$

$

Not available

CN

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

CP

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

CQ

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

CR

Simplicity 2154310

Idler Pulley (Trans. Drive)

$

$

Not available

CS

Simplicity 2705053

Hex Capscrew, 1/4-20 x 1-3/4

$

$

Not available

CT

Simplicity 2705006

Hex Capscrew, 3/8"-16 x 2"

$

$

Not available

CU

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

CV

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

CW

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

CX

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available
