990293 - Simplicity 32" Rotary Snow Thrower Attachment TWO SPEED PULLEY Parts Diagram

32" Rotary Snow Thrower Attachment

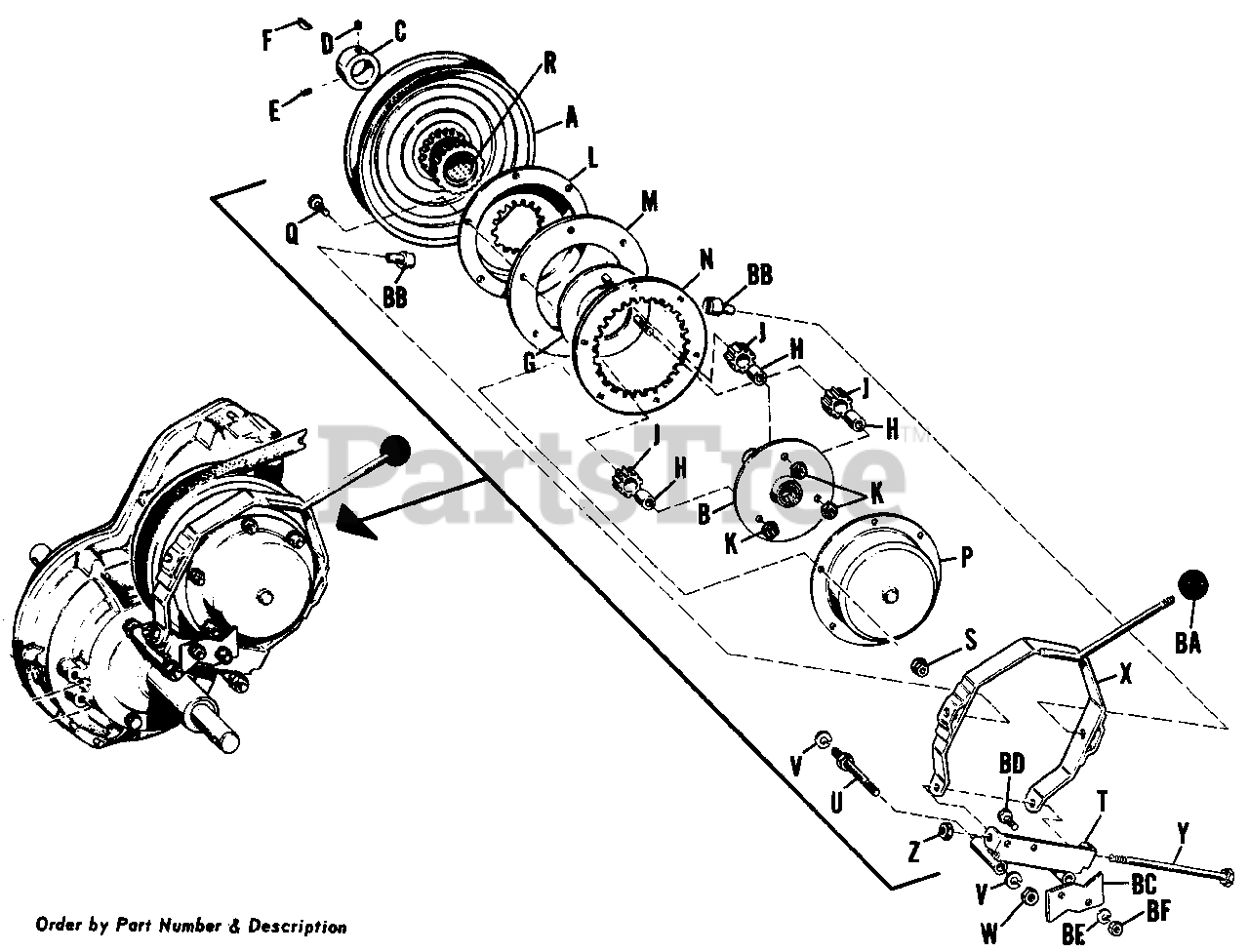

TWO SPEED PULLEY Parts Diagram

  • Title

A

Simplicity 156233

Pulley & Gear Assembly

$

$

Not available

B

Simplicity 156238

Spider & Bearing Assembly

$

$

Not available

C

Simplicity 2154065SM

Set Collar

$113.99

$

Usually ships in 2-12 days

0

D

Simplicity 2713501

Set Screw, Socket Hd., Cup Pt., 5/16"-18 x 1/2" lg.

$

$

Not available

E

Simplicity 2713504

Set Screw, Socket Hd., Cup Pt., 5/16"-18 x 3/8" lg.

$

$

Not available

F

Simplicity 2725003

Woodruff Key

$

$

Not available

G

Simplicity 156246

Ring Assembly

$

$

Not available

H

Simplicity 121163

Spacer

$

$

Not available

J

Simplicity 121118

Pinion

$

$

Not available

K

Simplicity 2717510

Hex Nut, Full, 3/8"-16

$

$

Not available

L

Simplicity 121148

Cover Assembly

$

$

Not available

M

Simplicity 156249

Shift Ring

$

$

Not available

N

Simplicity 121151

Gear Ring

$

$

Not available

P

Simplicity 156250

Cover Assembly, Right Hand

$

$

Not available

Q

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8" lg.

$

$

Not available

R

Simplicity 156237

Bushing (2 Required)

$

$

Not available

S

Simplicity 2718034

Nut Flange, Whiz Lock, 1/4"-20

$

$

Not available

T

Simplicity 156253

Pivot Bracket Assembly

$

$

Not available

U

Simplicity 156256

Stud

$

$

Not available

V

Simplicity 2720003

Lock Washer, 3/8"

$

$

Not available

W

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

X

Simplicity 156257

Shift Fork Assembly

$

$

Not available

Y

Simplicity 705060

Hex Capscrew, 5/16"-18 x 6-1/2" lg.

$176.99

$

Usually ships in 2-12 days

0

Z

Simplicity 2717511

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available

BA

Simplicity 1729255SM

Knob

$12.99

$

Usually ships in 2-12 days

0

BB

Simplicity 156261

Shift Pivot

$

$

Not available

BC

Simplicity 156262

Stop

$

$

Not available

BD

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

BE

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BF

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available
