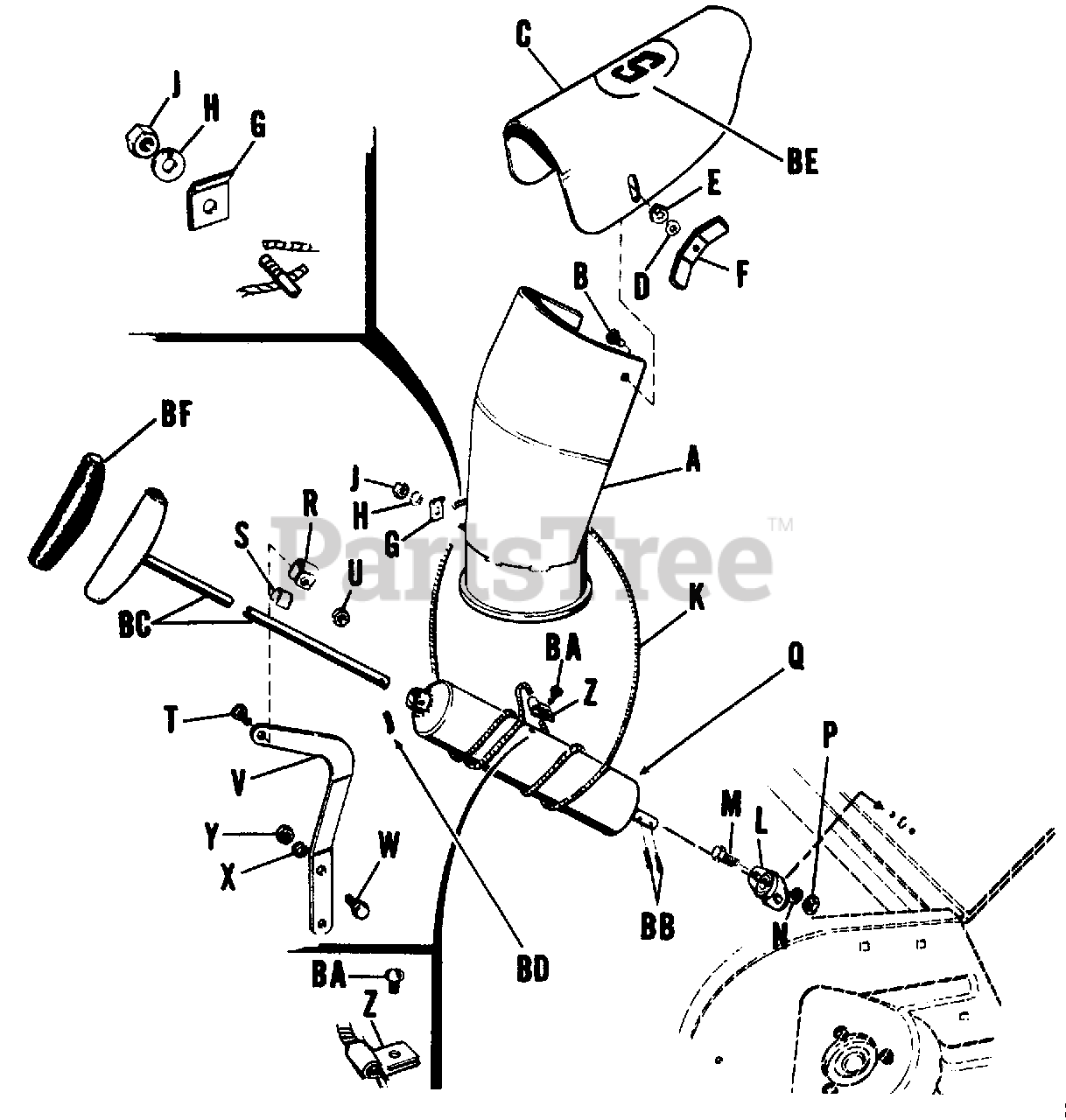

990293 - Simplicity 32" Rotary Snow Thrower Attachment SPOUT GROUP Parts Diagram

32" Rotary Snow Thrower Attachment

SPOUT GROUP Parts Diagram

  • Title

A

Simplicity 106338

Spout Assembly

$

$

Not available

B

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4" lg.

$

$

Not available

C

Simplicity 1064-89

Spout Extension

$

$

Not available

D

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

E

Simplicity 2721601

Lock Washer, Special Hexagon, 3/8"

$

$

Not available

F

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

G

Simplicity 121042

Plate

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

K

Simplicity 106490

Spout Cord

$

$

Not available

L

Simplicity 2106491SM

Bearing

$11.99

$

Usually ships in 2-12 days

0

M

Simplicity 2705015

Hex Capscrew, 1/4"-20 x 5/8" lg.

$

$

Not available

N

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

P

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

Q

Simplicity 106603

Spout Control Tube Assembly

$

$

Not available

R

Simplicity 2152050SM

Rod Guide

$9.49

$

Usually ships in 2-12 days

0

S

Simplicity 2121175SM

Guide Liner

$7.99

$

Usually ships in 2-12 days

0

T

Simplicity 2705018

Hex Capscrew, 5/16"-18 x 1-1/2" lg.

$

$

Not available

U

Simplicity 2717511

Hex Lock Nut, Full, 5/16"-18

$

$

Not available

V

Simplicity 106499

Rod Guide Support

$

$

Not available

W

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

X

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

Y

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

Z

Simplicity 154247

Clamp

$

$

Not available

BA

Simplicity 2714007

Self Tapping Screw, 1/4"-20 x 3/8" lg.

$

$

Not available

BB

Simplicity 2722009

Cotter Pin, 1/8" x 3/4" lg.

$

$

Not available

BC

Simplicity 106606

Handle Assembly

$

$

Not available

BD

Simplicity 722015

Cotter Pin, 5/32" x 1"

$

$

Not available

BE

Simplicity 106512

Decal

$

$

Not available

BF

Simplicity 106516

Cover Handle

$

$

Not available
