990285 - Simplicity 42" Mower Deck for Model 725 Mowers ROLLER ASSEMBLY Parts Diagram

42" Mower Deck for Model 725 Mowers

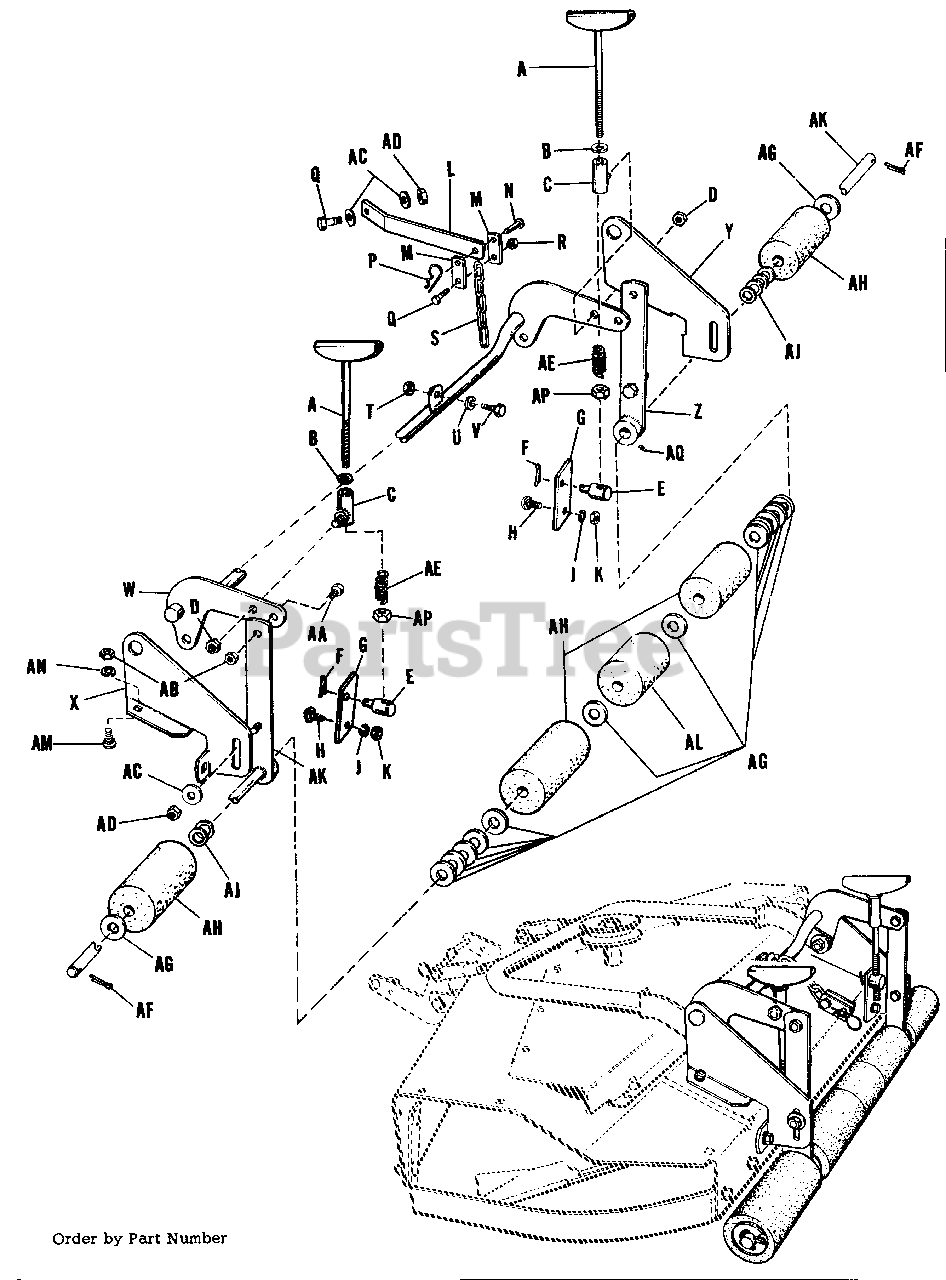

ROLLER ASSEMBLY Parts Diagram

  • Title

A

Simplicity 2108415

Screw Assembly, Adjusting

$

$

Not available

B

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

C

Simplicity 2108241SM

Socket Assembly, Crank
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

D

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

E

Simplicity 108172

Pivot

$

$

Not available

F

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

G

Simplicity 108242

Link Lift

$

$

Not available

H

Simplicity 2703004

Bolt, Carriage, 3/8"-16 NC x 3/4" lg.

$

$

Not available

J

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

K

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

L

Simplicity 108198

Lever, Mower Lift

$

$

Not available

M

Simplicity 108199

Link, Mower Lift

$

$

Not available

N

Simplicity 1708298SM

Pin, Lock

$

$

Not available

P

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

Q

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

R

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

S

Simplicity 101084

Chain

$

$

Not available

T

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

U

Simplicity 2719001

3/8" Washer

$

$

Not available

V

Simplicity 2705005

Capscrew, Hex Hd., 3/8-16 x 1" lg.

$

$

Not available

W

Simplicity 108235

Arm Assembly, Rocker

$

$

Not available

X

Simplicity 2108234

Bracket, Roller,

$

$

Not available

Y

Simplicity 2108233

Bracket, Roller,

$

$

Not available

Z

Simplicity 2108359

Bar Assembly, Roller

$

$

Not available

AA

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

AB

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

AC

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AD

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

AE

Simplicity 2108360SM

Spring, Adj. Screw

$5.49

$

In Stock, only 1 left!

0

AF

Simplicity 2722011

Pin, Cotter, 3/16" x 1" lg.

$

$

Not available

AG

Simplicity 2116001

Washer

$

$

Not available

AH

Simplicity 2108432SM

Roller

$36.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 2860164SM

Washer

$4.49

$

In Stock, only 3 left!

0

AK

Simplicity 2108358SM

Shaft & Support Arm.

$

$

Not available

AL

Simplicity 2108178

Roller

$

$

Not available

AM

Simplicity 2702003

Bolt, Carriage, 3/8"-16 NC x 3/4" lg.

$

$

Not available

AN

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AP

Simplicity 2717524

Nut, Hex. Full

$

$

Not available

AQ

Simplicity 2713504

Set Screw

$

$

Not available
