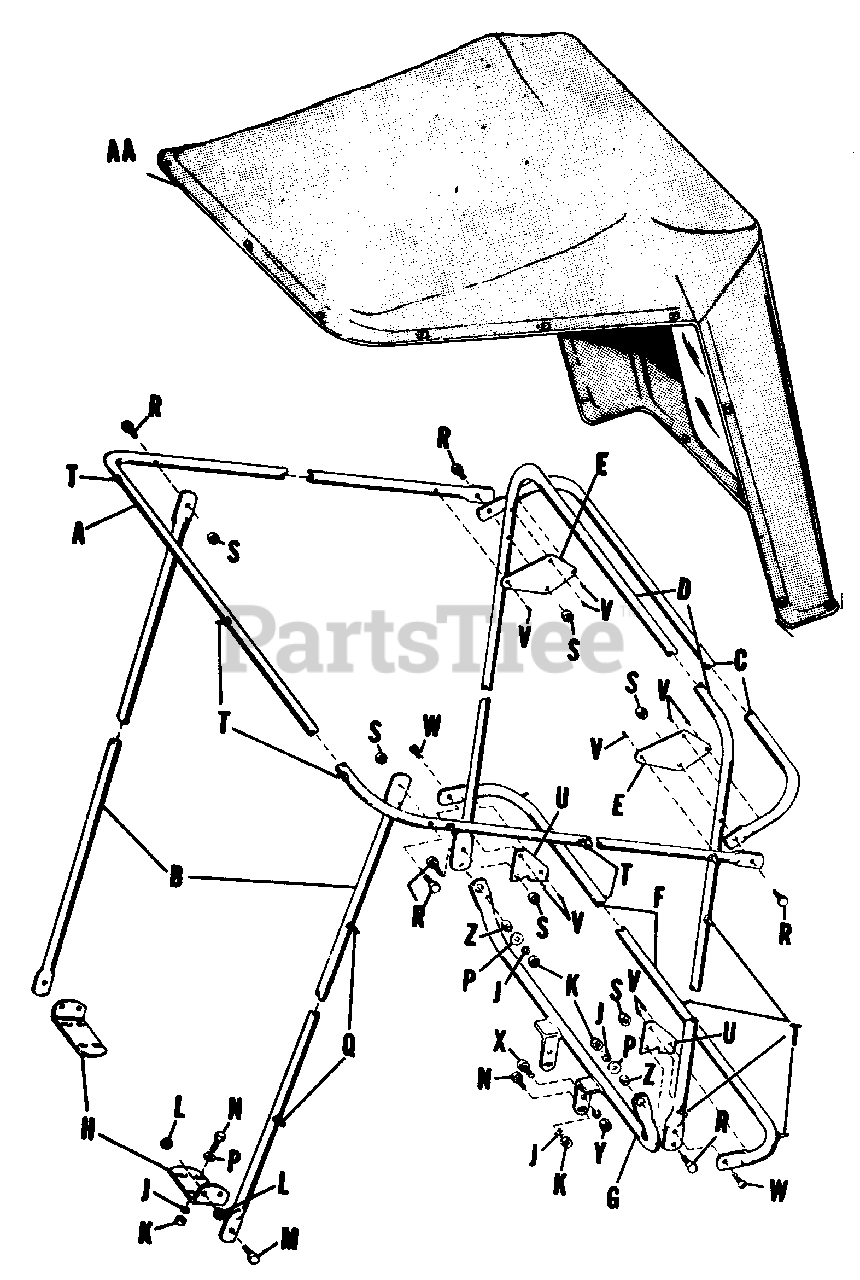

990282 - Simplicity Winter Cab Parts Catalog Parts Diagram

Winter Cab

Parts Catalog Parts Diagram

  • Title

A

Simplicity 154511

Frame, Top Front

$

$

Not available

B

Simplicity 154512

Brace, Side

$

$

Not available

C

Simplicity 154513

Frame, Top Rear

$

$

Not available

D

Simplicity 154514

Frame, Vertical

$

$

Not available

E

Simplicity 154515

Gusset, Upper

$

$

Not available

F

Simplicity 154516

Frame, Lower Rear

$

$

Not available

G

Simplicity 154517

Tube, Rear Pivot

$

$

Not available

H

Simplicity 154518

Bracket, Foot, Front

$

$

Not available

J

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

K

Simplicity 2717001

Hex Nut, 5/16"-18

$

$

Not available

L

Simplicity 2717003

Hex Nut, 3/8"-16

$

$

Not available

M

Simplicity 154523

Hex Capscrew, Drilled

$

$

Not available

N

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

P

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

Q

Simplicity 154519

Double Stud Lift-O-Dot

$

$

Not available

R

Simplicity 2705053

Hex Capscrew, 1/4"-20 x 1-3/4" lg.

$

$

Not available

S

Simplicity 2717513

Hex Lock Nut, 1/4-20

$

$

Not available

T

Simplicity 154520

Single Stud Lift-O-Dot

$

$

Not available

U

Simplicity 154521

Gusset, Lower

$

$

Not available

V

Simplicity 2714003

Screw, Self-Tapping, #10 x 1/2" lg.

$

$

Not available

W

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4

$

$

Not available

X

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4

$

$

Not available

Y

Simplicity 2717510

Hex Lock Nut, 3/8"-16

$

$

Not available

Z

Simplicity 154522

Spacer

$

$

Not available

AA

Simplicity 154524

Canopy

$

$

Not available
