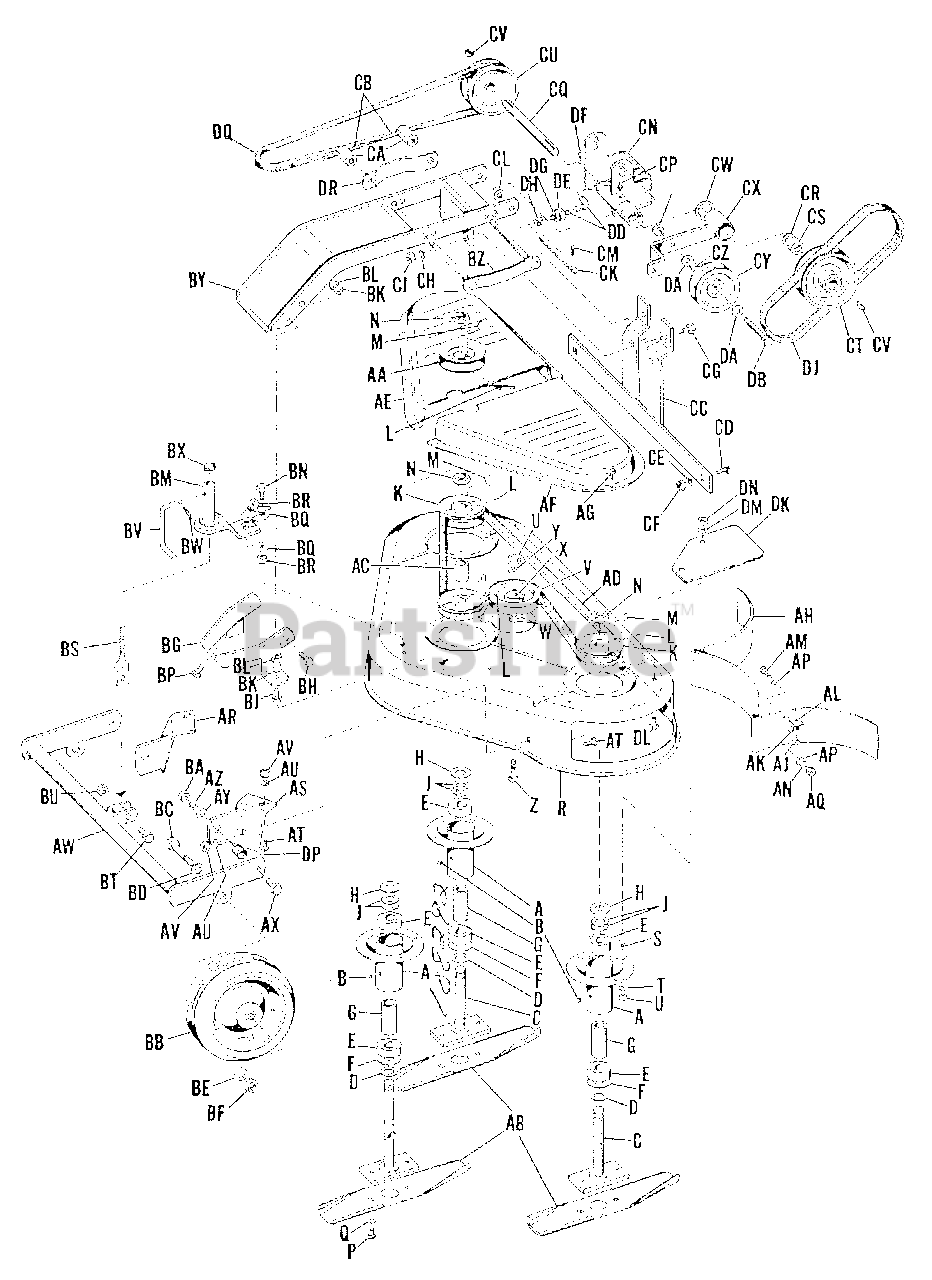

990265 - Simplicity 32" Mower Deck Mower Group (3614I01) Parts Diagram

32" Mower Deck

Mower Group (3614I01) Parts Diagram

  • Title

A

Simplicity 2108203

ARBOR TUBE ASSEMBLY

$

$

Not available

B

Simplicity 726001

PLUG, Pipe, 1/8"

$

$

Not available

C

Simplicity 2108250SM

ARBOR ASSEMBLY

$115.99

$

Usually ships in 2-12 days

0

D

Simplicity 2108181

WASHER

$

$

Not available

E

Simplicity 2108202SM

BEARING, Radial

$11.99

$

In Stock, Qty 20+

0

F

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, only 2 left!

0

G

Snapper 2108201SM

SPACER

$19.99

$

In Stock, only 1 left!

0

H

Simplicity 2108139

FLINGER

$

$

Not available

J

Simplicity 2108181

WASHER

$

$

Not available

K

Simplicity 2108142

PULLEY

$

$

Not available

L

Simplicity 2108251

ARBOR ASSEMBLY

$

$

Not available

M

Simplicity 2725006

KEY, Woodruff, #61

$

$

Not available

N

Simplicity 2717517

NUT, Jam, Hex, 3/4"-16 NF

$

$

Not available

P

Simplicity 2715024

CAPSCREW, Hex, 3/8"-16 NC x 5/8" Lg.

$

$

Not available

Q

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

R

Simplicity 2108299

HOUSING

$

$

Not available

S

Simplicity 2703004

CARRIAGE BOLT, 3/8"-16 NC x 3/4" Lg.

$

$

Not available

T

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

U

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

V

Simplicity 2108386SM

PULLEY, Idler

$

$

Not available

W

Simplicity 2719002

WASHER, Plain, 5/16"

$

$

Not available

X

Simplicity 103001

SIDE PLATE, Hitch

$

$

Not available

Y

Simplicity 2719004

WASHER

$

$

Not available

Z

Simplicity 2703002

CARRIAGE BOLT, 3/8"-16 NC x 1-3/4" Lg.

$

$

Not available

AA

Simplicity 2108246SM

PULLEY, Cross Drive

$76.99

$

In Stock, only 1 left!

0

AB

Simplicity 2108297ASM

BLADE

$23.99

$

Usually ships in 2-12 days

0

AC

Simplicity 108145

SPACER

$

$

Not available

AD

Simplicity 2108151

BELT, "V", Spindle Drive

$

$

Not available

AE

Simplicity 108301

COVER, Housing, R.H.

$

$

Not available

AF

Simplicity 108302

COVER, Housing, L.H.

$

$

Not available

AG

Simplicity 2714007

SCREW, Self Tapping, Recessed Hex Head, 1/4"-20 NC x 3/8" Lg.

$

$

Not available

AH

Simplicity 108187

BAFFLE, Mower

$

$

Not available

AJ

Simplicity 2714012

SCREW, Self Tapping, Recessed Hex Head, 1/4"-20 NC x 7/8" Lg.

$

$

Not available

AK

Simplicity 2720003

LOCKWASHER, 1/4"

$

$

Not available

AL

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

AM

Simplicity 2715018

CAPSCREW, Hex, 1/4"-20 NC x 5/8" Lg.

$

$

Not available

AN

Simplicity 2720003

LOCKWASHER, 1/4"

$

$

Not available

AP

Simplicity 2719006

WASHER, Plain, 1/4"

$

$

Not available

AQ

Simplicity 2717005

NUT, Hex, Full, 1/4"-20 NC

$

$

Not available

AR

Simplicity 108303

BRACKET ASSEMBLY, Front, R.H.

$

$

Not available

AS

Simplicity 108306

BRACKET ASSEMBLY, Front, L.H.

$

$

Not available

AT

Simplicity 2703004

CARRIAGE BOLT, 3/8"-16 NC x 3/4" Lg.

$

$

Not available

AU

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

AV

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

AW

Simplicity 108308

SUPPORT ASSEMBLY, Wheel

$

$

Not available

AX

Simplicity 2705005

CAPSCREW, Hex, 3/8"-16 NC x 1" Lg.

$

$

Not available

AY

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

AZ

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

BA

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

BB

Simplicity 108313

WHEEL ASSEMBLY

$

$

Not available

BC

Simplicity 705057

CAPSCREW, Hex, 1/2"-13 NC x 4-1/2"

$99.99

$

In Stock, Qty 20+

0

BD

Simplicity 2719003

WASHER, Plain, 7/16"

$

$

Not available

BE

Simplicity 2720004

LOCKWASHER, 1/2"

$

$

Not available

BF

Simplicity 2717006

NUT, Hex, Full, 1/2"-13 NC

$

$

Not available

BG

Simplicity 108316

YOKE ASSEMBLY, Crank

$

$

Not available

BH

Simplicity 2705004

CAPSCREW, Hex, 3/8"-16 NC x 3/4" Lg.

$

$

Not available

BJ

Simplicity 2705005

CAPSCREW, Hex, 3/8"-16 NC x 1" Lg.

$

$

Not available

BK

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

BL

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

BM

Simplicity 108319

BRACKET, Crank

$

$

Not available

BN

Simplicity 2705016

CAPSCREW, Hex, 3/8"-16 NC x 1-1/4" Lg.

$

$

Not available

BP

Simplicity 2705005

CAPSCREW, Hex, 3/8"-16 NC x 1" Lg.

$

$

Not available

BQ

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

BR

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

BS

Simplicity 108322

SCREW ASSEMBLY, Height Adjusting

$

$

Not available

BT

Simplicity 2705016

CAPSCREW, Hex, 3/8"-16 NC x 1-1/4" Lg.

$

$

Not available

BU

Simplicity 2717510

NUT, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

BV

Simplicity 108325

CRANK

$

$

Not available

BW

Simplicity 2722001

PIN, Cotter, 3/32" x 3/4" Lg.

$

$

Not available

BX

Simplicity 108336

PLUG, Button

$

$

Not available

BY

Simplicity 108002

ARM ASSEMBLY, Push

$

$

Not available

BZ

Simplicity 8162501

CLAMP ASSEMBLY, Hitch

$

$

Not available

CA

Simplicity 8161041

NUT, "T"

$0.99

$

Usually ships in 2-12 days

0

CB

Simplicity 2108300

BELT, "V", Cross Drive

$

$

Not available

CC

Simplicity 108326

BRACKET ASSEMBLY, Rear

$

$

Not available

CD

Simplicity 2702002

CARRIAGE BOLT, 3/8"-16 NC x 1" Lg.

$

$

Not available

CE

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

CF

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

CG

Simplicity 2705005

CAPSCREW, Hex, 3/8"-16 NC x 1" Lg.

$

$

Not available

CH

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

CJ

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

CK

Simplicity 108035

PIN, Pivot

$

$

Not available

CL

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

CM

Simplicity 2722005

PIN, Cotter, 3/32" x 7/8" Lg.

$

$

Not available

CN

Simplicity 108330

BRACKET ASSEMBLY, Drive

$

$

Not available

CP

Simplicity 2727002

FITTING, Grease, #1641 Alemite

$

$

Not available

CQ

Simplicity 108014

SHAFT, Idler

$

$

Not available

CR

Simplicity 2116001

WASHER

$

$

Not available

CS

Simplicity 2108054

BEARING, Needle

$

$

Not available

CT

Simplicity 108333

PULLEY

$

$

Not available

CU

Simplicity 108334

PULLEY

$

$

Not available

CV

Simplicity 2725003

KEY, Woodruff, #9

$

$

Not available

CW

Simplicity 8151063

RING, Retaining

$

$

Not available

CX

Simplicity 108032

LEVER ASSEMBLY, Idler

$

$

Not available

CY

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

CZ

Simplicity 1663752SM

SPACER

$5.99

$

In Stock, only 2 left!

0

DA

Simplicity 2719002

WASHER, Plain, 5/16"

$

$

Not available

DB

Simplicity 2705010

CAPSCREW, Hex, 3/8"-16 NC x 1-3/4"

$

$

Not available

DC

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

DD

Simplicity 2108034

ROD

$

$

Not available

DE

Simplicity 2717504

NUT, Hex, Elastic, 3/8"-16 NC

$

$

Not available

DF

Simplicity 2722005

PIN, Cotter, 3/32" x 7/8"-Lg.

$

$

Not available

DG

Simplicity 2719002

WASHER, Plain, 5/16"

$

$

Not available

DH

Simplicity 108335

SPRING

$

$

Not available

DJ

Simplicity 2121078SM

BELT, "V"

$26.99

$

Usually ships in 2-12 days

0

DK

Simplicity 108390

DEFLECTOR

$

$

Not available

DL

Simplicity 2703005

CARRIAGE BOLT, 5/16"-18 NC x 3/4" Lg.

$

$

Not available

DM

Simplicity 2720001

LOCKWASHER, 5/16"

$

$

Not available

DN

Simplicity 2717001

NUT, Hex, Full, 5/16"-18 NC

$

$

Not available
