990256 - Simplicity Sno-Away 23" Snow Thrower, 4hp ROTOR GROUP Parts Diagram

Sno-Away 23" Snow Thrower, 4hp

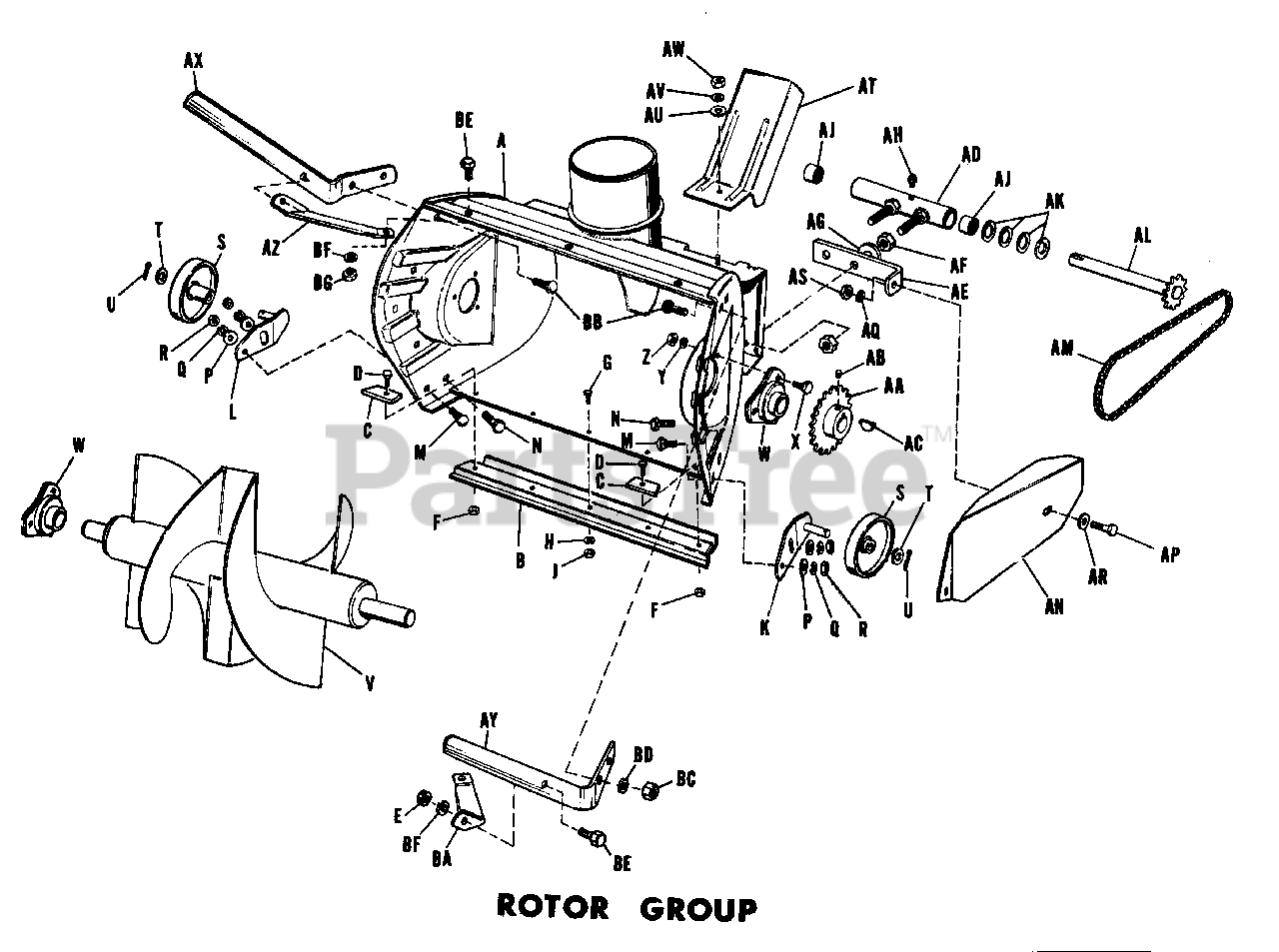

ROTOR GROUP Parts Diagram

  • Title

A

Simplicity 106188

Body Assembly

$

$

Not available

B

Simplicity 106428

Scraper, Body

$

$

Not available

C

Simplicity 106137

Clamp, Scraper

$

$

Not available

D

Simplicity 2715020

Capscrew, Hex, 5/16"-18 NC x 3/4" lg.

$

$

Not available

F

Simplicity 2717511

Nut, Hex, Full Lock, 5/16"-18 NC

$

$

Not available

G

Simplicity 2715018

Capscrew, Hex, 1/4"-20 NC x 5/8" lg.

$

$

Not available

H

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

J

Simplicity 2717005

Nut, Hex, Full, 1/4"-20 NC

$

$

Not available

K

Simplicity 106209

Bracket Assembly, Roller, Left Hand

$

$

Not available

L

Simplicity 106211

Bracket Assembly, Roller, Right Hand

$

$

Not available

M

Simplicity 2703004

Bolt, Carriage, 3/8"-16 NC x 3/4" lg.

$

$

Not available

N

Simplicity 2705031

Capscrew, Hex, 3/8"-16 NC x 7/8" lg.

$

$

Not available

P

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

Q

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

R

Simplicity 2717003

Nut. Hex Full, 3/8"-16 NC

$

$

Not available

S

Simplicity 106396

Roller Assembly

$

$

Not available

T

Simplicity 2121210SM

Washer

$1.99

$

Usually ships in 2-12 days

0

U

Simplicity 2722010

Pin, Cotter, 1/8" x 1-1/4" lg.

$

$

Not available

V

Simplicity 106333

Rotor Assembly

$

$

Not available

W

Simplicity 2106445

Bearing Assembly

$

$

Not available

X

Simplicity 2705017

Capscrew, Hex, 5/16"-18 NC x 3/4" lg.

$

$

Not available

Y

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

Z

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

AA

Simplicity 106052

Sprocket, Rotor

$

$

Not available

AB

Simplicity 2713503

Set Screw, Socket Head, 5/16"-18 NC x 5/16" lg.

$

$

Not available

AC

Simplicity 2151040SM

Key, Hi-Pro

$9.49

$

In Stock, only 2 left!

0

AD

Simplicity 106197

Housing Assembly, Bearing

$

$

Not available

AE

Simplicity 106213

Bracket, Chain Guard

$

$

Not available

AF

Simplicity 2717006

Nut, Hex, Full, 1/2"-13 NC

$

$

Not available

AG

Simplicity 2719004

Washer, Plain, 1/2"

$

$

Not available

AH

Simplicity 2727002

Fitting, Grease

$

$

Not available

AJ

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, Qty 8

0

AK

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 7

0

AL

Simplicity 106195

Shaft Assembly

$

$

Not available

AM

Simplicity 106058

Chain, Rotor

$

$

Not available

AN

Simplicity 106103

Guard, Chain

$

$

Not available

AP

Simplicity 2705017

Capscrew, Hex, 5/16"-18 NC x 3/4" lg.

$

$

Not available

AQ

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

AR

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

AS

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

AT

Simplicity 106225

Guard, Belt

$

$

Not available

AU

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AV

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AW

Simplicity 2717003

Nut, Hex, Full 3/8"-16 NC

$

$

Not available
