990254 - Simplicity Sno-Away 26" Snow Thrower, 6hp ENGINE & DRIVE PULLEYS Parts Diagram

Sno-Away 26" Snow Thrower, 6hp

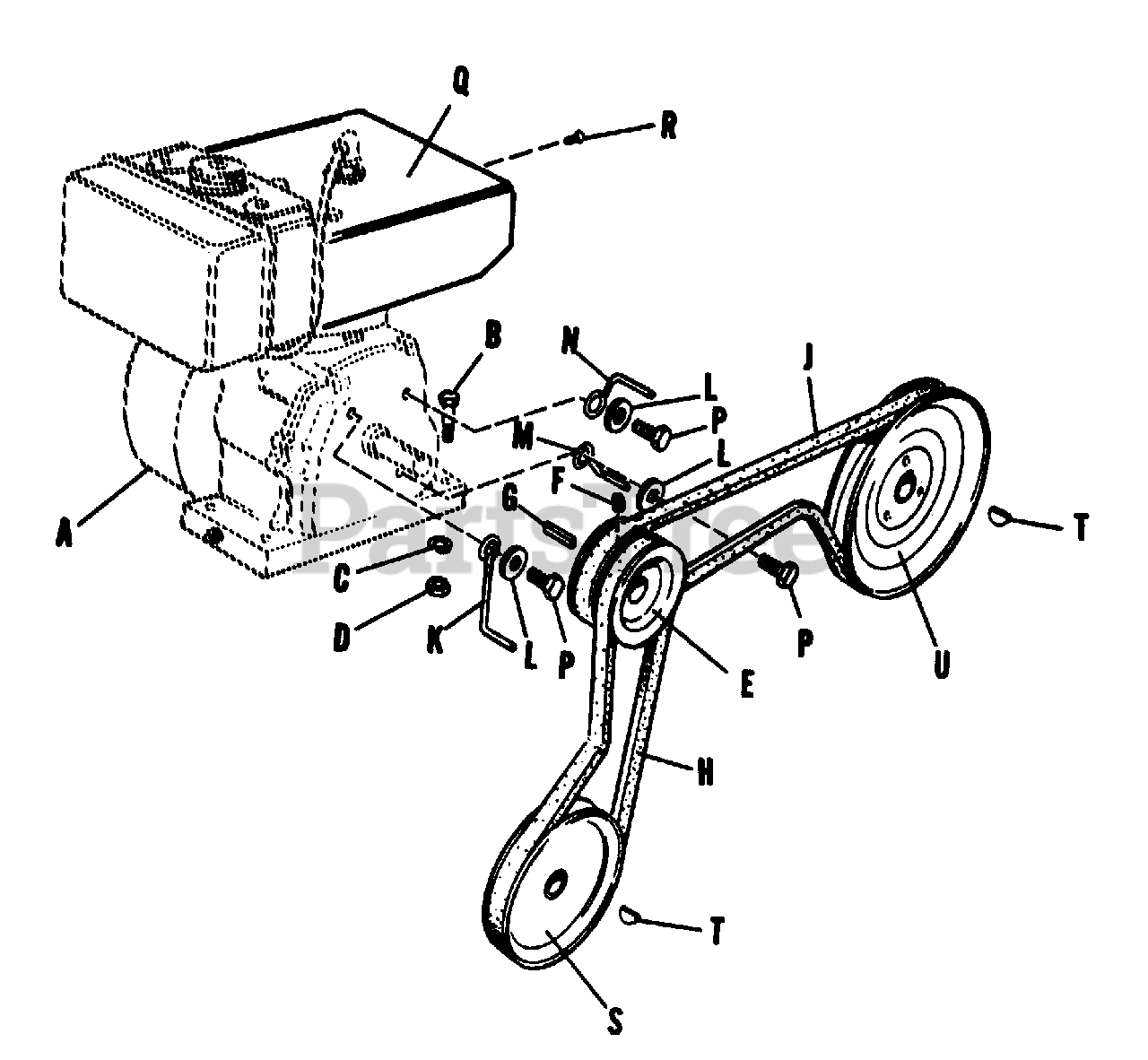

ENGINE & DRIVE PULLEYS Parts Diagram

  • Title

A

Simplicity 106219

Engine

$

$

Not available

B

Simplicity 2705018

Capscrew, Hex, 5/16"-18 NC x 1-1/2" lg.

$

$

Not available

C

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

D

Simplicity 2717001

Hex Nut, Full, 5/16"-18 NC

$

$

Not available

E

Simplicity 106227

Pulley, Engine

$

$

Not available

F

Simplicity 2713504

Set Screw, Socket Hd., 5/16"-18 NC x 3/8" lg.

$

$

Not available

G

Simplicity 1729279SM

Key, Square
(Superseded to 703889)

$4.49

$

In Stock, Qty 12

0

H

Simplicity 18068

Belt, "V" (Rotor Drive)
(Superseded to 7018068BMYP)

$34.99

$

In Stock, only 1 left!

0

J

Simplicity 8161244

Belt, "V" (Transmission Drive)

$

$

Not available

K

Simplicity 8061089

Stop, Belt

$

$

Not available

L

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

M

Simplicity 106346

Stop, Belt

$

$

Not available

N

Simplicity 106347

Stop, Belt

$

$

Not available

P

Simplicity 706016

Capscrew, Hex, 5/16"-24 NF x 5/8" lg.

$2195.99

$

Usually ships in 2-12 days

0

Q

Simplicity 106228

Deflector, Hot Air

$

$

Not available

R

Simplicity 710002

Machine Screw, Round Hd., #10-32 NF x 1/2" lg.

$

$

Not available

S

Simplicity 2154273SM

Pulley

$74.99

$

Usually ships in 2-12 days

0

T

Simplicity 2725003

Key, Woodruff

$

$

Not available

U

Simplicity 106214

Pulley, Transmission Drive

$

$

Not available
