990253 - Simplicity Sno-Away 26" Snow Thrower, 6hp HANDLES & CONTROLS Parts Diagram

Sno-Away 26" Snow Thrower, 6hp

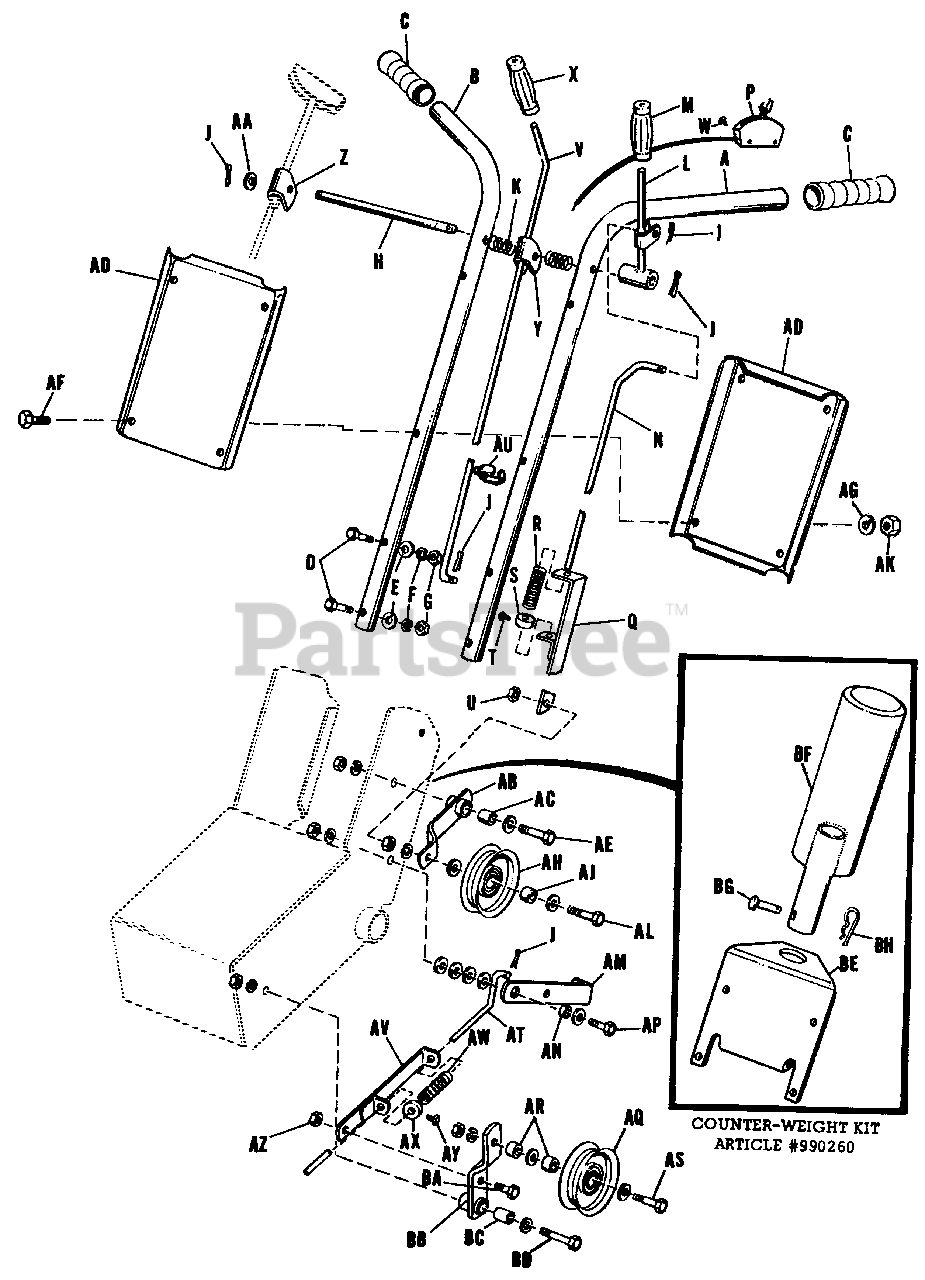

HANDLES & CONTROLS Parts Diagram

  • Title

A

Simplicity 106186

Handle, Left Hand

$

$

Not available

B

Simplicity 106187

Handle, Right Hand

$

$

Not available

C

Simplicity 155038

Grip, Handle

$

$

Not available

D

Simplicity 2705006

Capscrew, Hex, 3/8"-16 NC x 2" lg.

$

$

Not available

E

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

F

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

G

Simplicity 2717003

Hex Nut Full 3/8"-16 NC

$

$

Not available

H

Simplicity 106222

Pin, Lever

$

$

Not available

J

Simplicity 2722001

Pin, Cotter, 3/32" x 3/4" lg.

$

$

Not available

K

Simplicity 2152006SM

Spring

$8.49

$

Usually ships in 2-12 days

0

L

Simplicity 155006

Lever Assembly, Left Hand

$

$

Not available

M

Simplicity 153017

Grip

$

$

Not available

N

Simplicity 106220

Rod, Clutch Transmission

$

$

Not available

P

Simplicity 106398

Throttle Control Assembly

$

$

Not available

Q

Simplicity 106399

Guide Assembly, Rod (20" long)

$

$

Not available

R

Simplicity 1729277SM

Spring

$6.99

$

In Stock, only 1 left!

0

S

Simplicity 1729276SM

Collar Set

$

$

Not available

T

Simplicity 2713001

Set Screw, Square Hd. 1/4"-20 NC x 3/8" lg.

$

$

Not available

U

Simplicity 2717510

Hex Nut Full Lock, 3/8"-16 NC

$

$

Not available

V

Simplicity 106218

Rod, Reverse

$

$

Not available

W

Simplicity 714010

Self Tapping Screw, Rd. Hd., #10-24 x 1" lg.

$

$

Not available

X

Simplicity 153017

Grip

$

$

Not available

Y

Simplicity 153074

Guide, Reverse Rod

$

$

Not available

Z

Simplicity 106221

Guide, Rod

$

$

Not available

AA

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

AB

Simplicity 106204

Lever Assembly, Idler, Transmission Clutch

$

$

Not available

AC

Simplicity 1729274SM

Race, Inner Bearing

$

$

Not available

AE

Simplicity 2705010

Capscrew, Hex, 3/8"-16 NC x 1-3/4" lg.

$

$

Not available

AH

Simplicity 2154310

Pulley, Idler (Transmission Drive)

$

$

Not available

AJ

Simplicity 2154177SM

Bushing

$39.99

$

In Stock, only 1 left!

0

AL

Simplicity 2705010

Capscrew, Hex, 3/8"-16 NC x 1-3/4" lg.

$

$

Not available

AM

Simplicity 106223

Pedal, Clutch, Foot

$

$

Not available

AN

Simplicity 1663752SM

Bushing

$5.99

$

In Stock, only 2 left!

0

AP

Simplicity 2705009

Capscrew, Hex, 3/8"-16 NC x 1-1/2" lg.

$

$

Not available

AQ

Simplicity 2154310

Pulley, Idler (Rotor Drive)

$

$

Not available

AR

Simplicity 2154177SM

Bushing

$39.99

$

In Stock, only 1 left!

0

AS

Simplicity 2705010

Capscrew, Hex, 3/8"-16 NC x 1-3/4" lg.

$

$

Not available

AT

Simplicity 106224

Rod, Clutch Rotor

$

$

Not available

AU

Simplicity 80611-08

Cable Clip

$

$

Not available

AV

Simplicity 1729265SM

Guide Assembly, Clutch Rod

$41.99

$

Usually ships in 2-12 days

0

AW

Simplicity 1729277SM

Spring

$6.99

$

In Stock, only 1 left!

0

AX

Simplicity 1729276SM

Collar, Set

$

$

Not available

AY

Simplicity 2713001

Set Screw, Square Hd., 1-1/4"-20 NC x 3/8" lg.

$

$

Not available

AZ

Simplicity 2717510

Hex Nut, Full, Lock, 3/8"-16 NC

$

$

Not available

BA

Simplicity 2705004

Capscrew, Hex, 3/8"-16 NC x 3/4" lg.

$

$

Not available

BB

Simplicity 106201

Lever Assembly, Idler

$

$

Not available

BC

Simplicity 1729274SM

Race, Inner Bearing

$

$

Not available

BD

Simplicity 2705010

Capscrew, Hex, 3/8"-16 NC x 1-3/4" lg.

$

$

Not available
